Window Balance 25 in long 1/2 wide. Replacement needed

A quick learner from Marco Island Florida says:
February 16, 2021

I am trying to get the exact part number for a window balance

25 in long

1/2 Wide

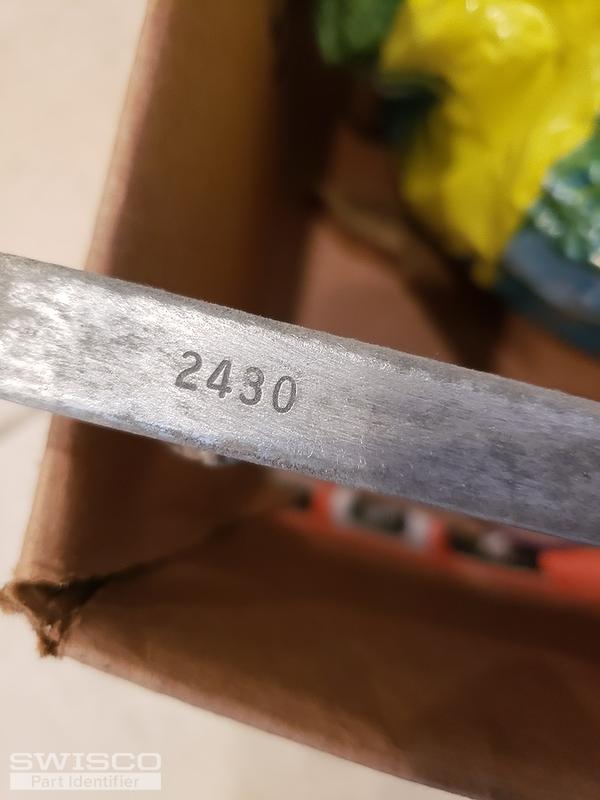

Model 2430

Thanks Mike

Thumbnail of the uploaded file named 20210215_140653.jpg
Thumbnail of the uploaded file named 20210215_140720.jpg
Thumbnail of the uploaded file named 20210215_140741.jpg
Thumbnail of the uploaded file named 20210216_105804.jpg
Profile picture of Bob
Bob from SWISCO responded:
February 17, 2021

Hey Mike. I'm confident we can help, but that stamp just tells us the spring strength of the balance. To know what kind you have, I need to see the nylon fitting on the opposite end of the metal channel. From there I should be able to identify the type or Series you need. Many thanks.
A quick learner from Marco Island Florida says:
March 22, 2021
Sorry for the delay in my response.

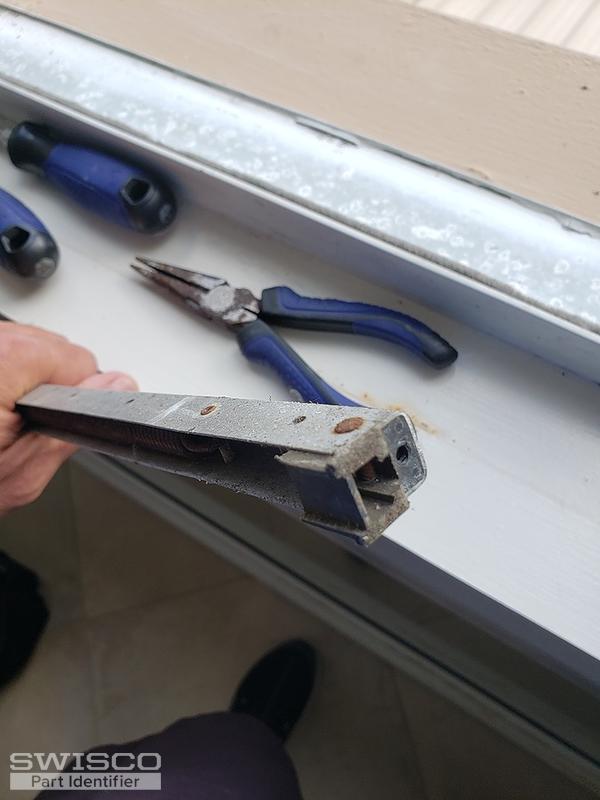

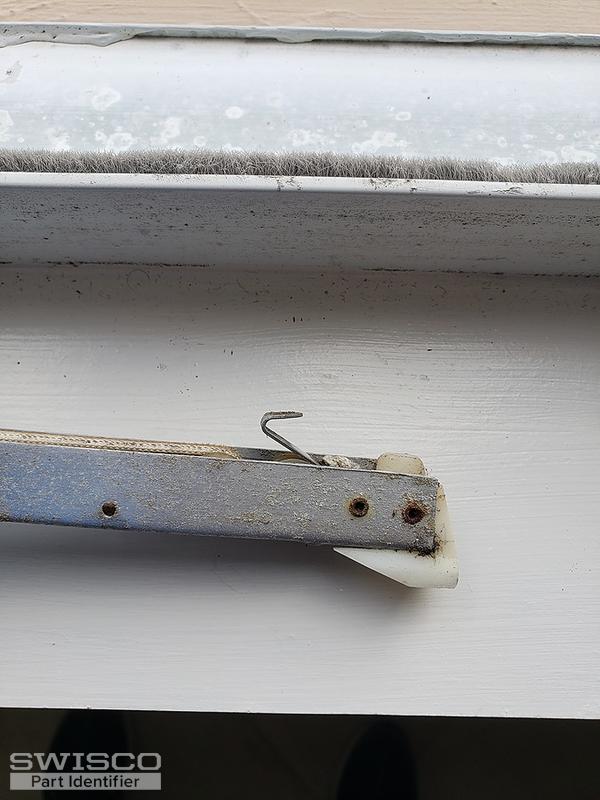

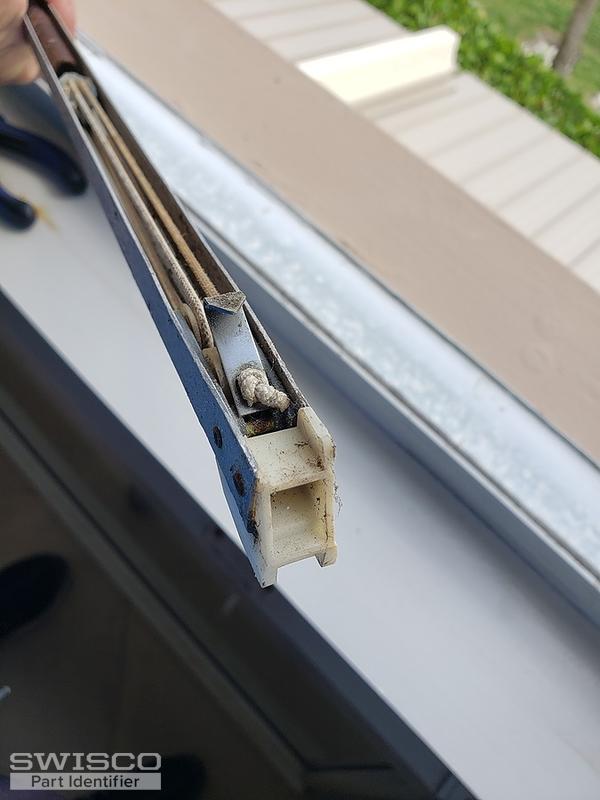

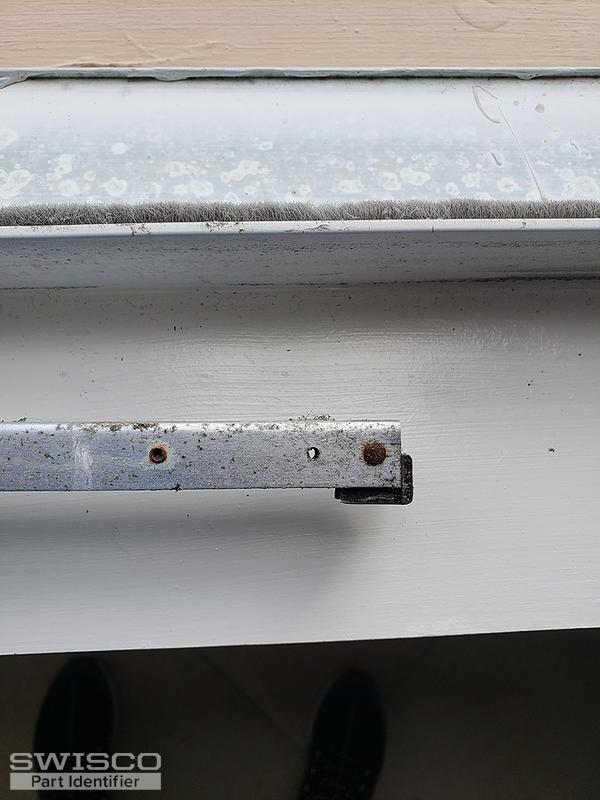

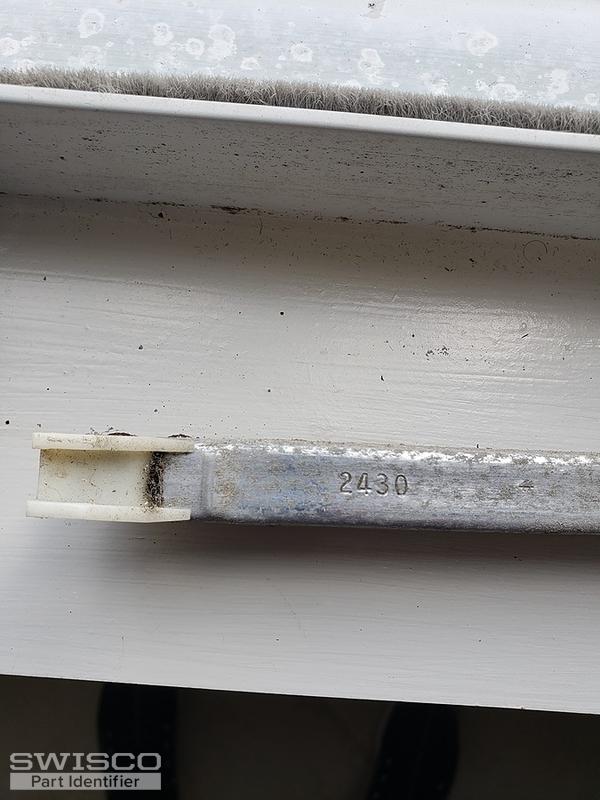

Please see the attached pictures of the ends of the channel window balance

Again.

I am trying to get the exact part number for a window balance

25 in long

1/2 Wide

Model or spring strength 2430

Thanks
Mike
Thumbnail of the uploaded file named 16164247196011842874643522694654.jpg
Thumbnail of the uploaded file named 16164247509412622105144080090048.jpg
Thumbnail of the uploaded file named 16164247687654638621366822302224.jpg
Thumbnail of the uploaded file named 16164247868065327031339165961168.jpg
Thumbnail of the uploaded file named 16164248389609219552021990827358.jpg
Profile picture of Bob
Bob from SWISCO responded:
March 22, 2021

Hey Mike. We're getting there. It appears to be the top fitting on this balance is undamaged. Is there an undamaged version you can show me, perhaps from the other balance in the window or from an identical window in the house? From there I'll do my best to narrow this down.
