Window Balance 25DS 32

A from 94305 says:

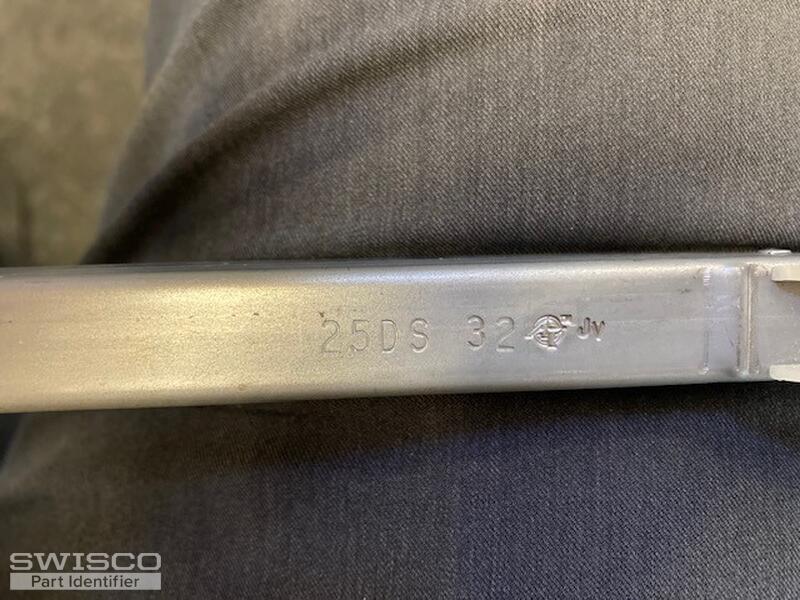

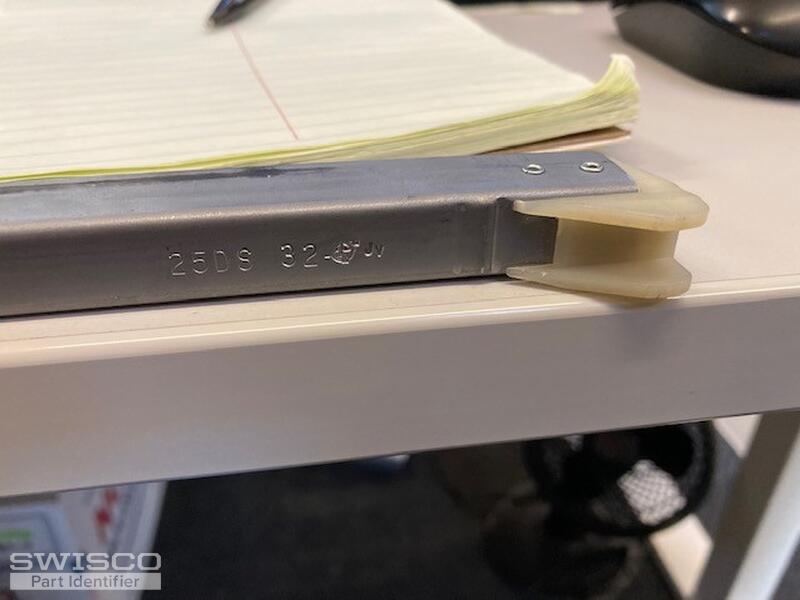

Hi I'm having trouble the stamp doesn't match any of your products, the stamp is 25DS 32

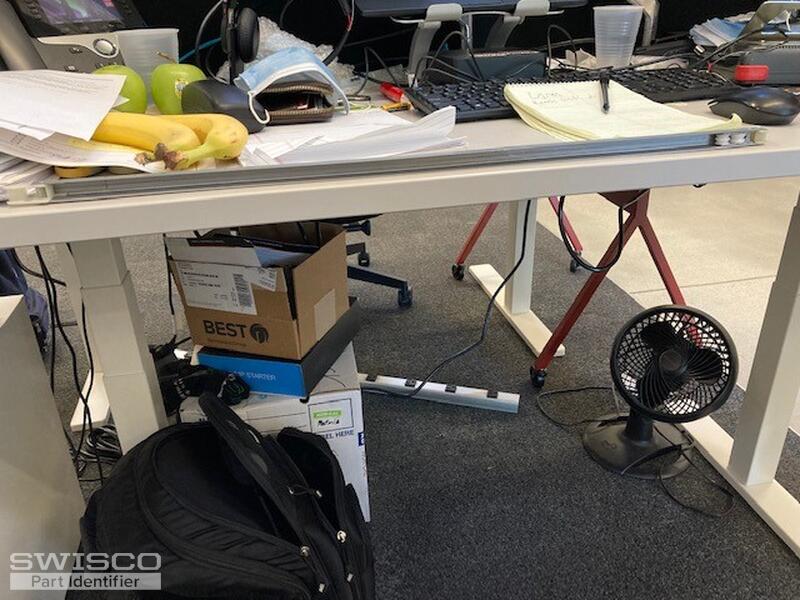

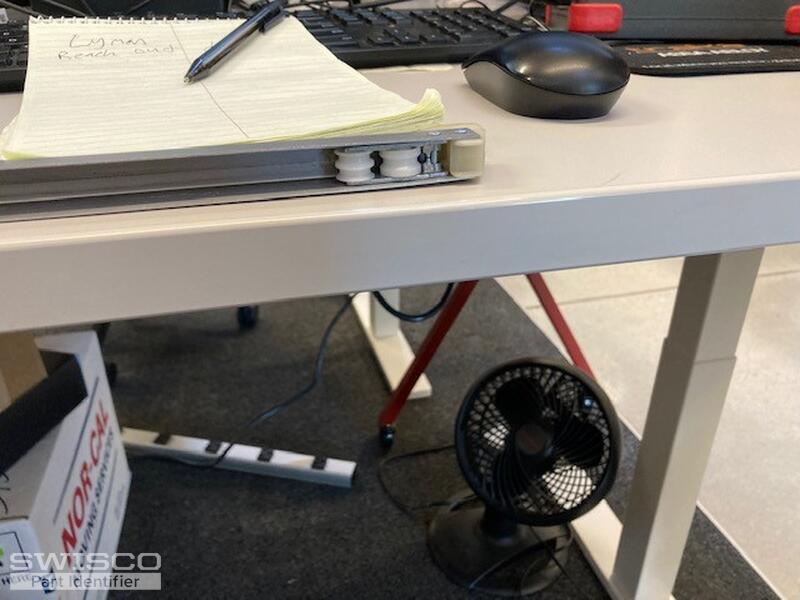

Thumbnail of the uploaded file named Window Balance 2.jpg
Thumbnail of the uploaded file named Window Balance 3.jpg
Thumbnail of the uploaded file named Window Balance 4.jpg
Thumbnail of the uploaded file named Window Balance 1.jpg
Thumbnail of the uploaded file named Window Balance 6.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

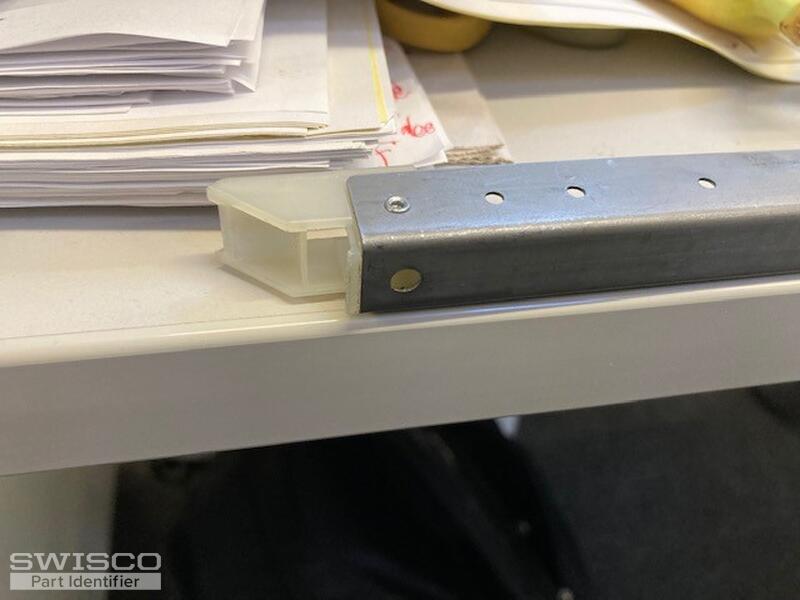

It looks like you have either our S351-26, with a 15-002 bottom attachment, or S390-26, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

As for the stamp on your metal channel, the number after the "DS" usually indicates the precise sash weight. In your case, it would be 32 pounds. A 2565 stamp option supports a sash weighing 30 to 33 pounds so if your sash is indeed 32 pounds, this option should be fine for your window. You can always weigh your sash on a scale if you'd like to be 100% sure.

If you have any questions just let us know!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
A quick learner says:

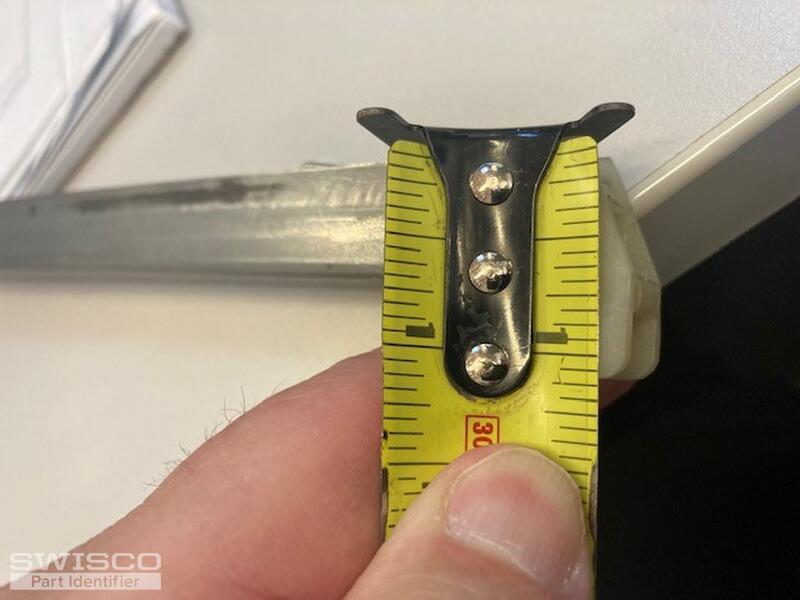

Hi That bottom attachment measures 1 1/16+ just between the two choices
Thumbnail of the uploaded file named sash balance part.jpg
Profile picture of Emily
Emily from SWISCO responded:

After years of use, the shoe tends to wear a little, which may make the depth a little less than what it once was. In your case, it may have once been 1-1/8" and simply wore down to 1-1/16".

A quick learner says:
Thanks so much, I have ordered the 390 version
