Window Balance 26-4 HA2 CMC 24

Quick Learner from California
May 13, 2024 6:00 pm
Hi
Looking for 2 window balancers marked 26-4 HA2 CMC 24. It measures from metal end to metal end 27 inches. The metal is 1/2 inch wide.

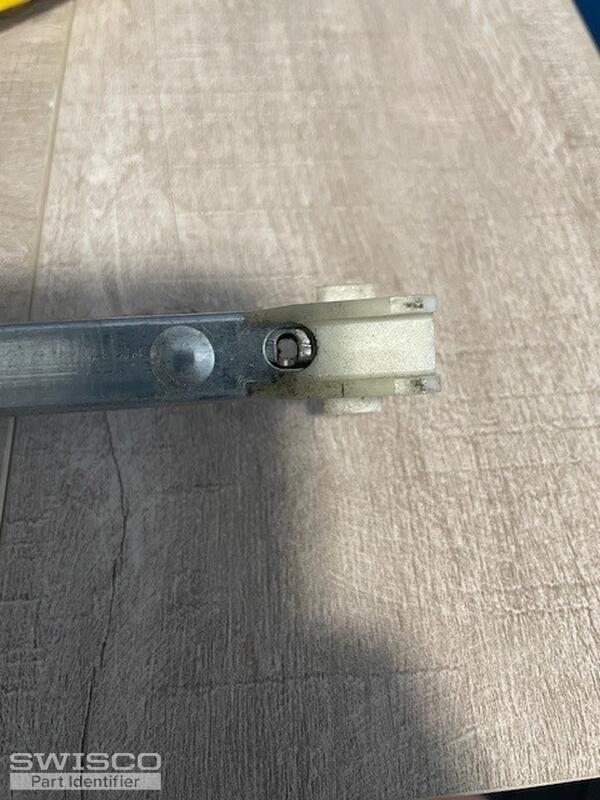

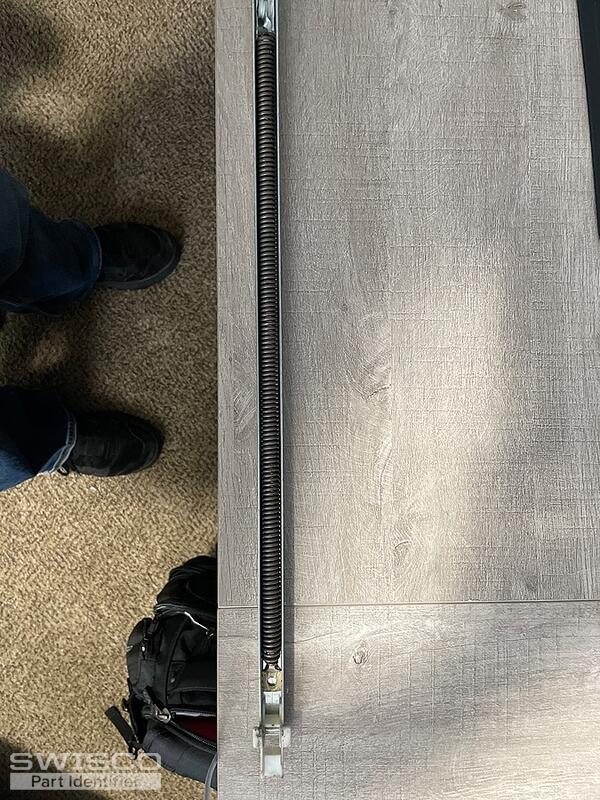

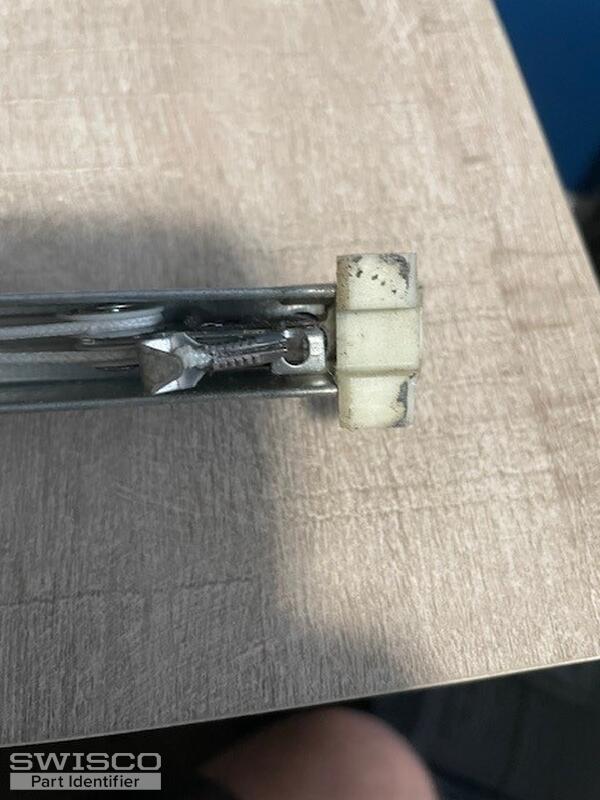

winged top fitting winged top fitting 26-4 stamped channel winged bottom shoe back of bottom shoe
5 user uploaded images
3 Replies
Emily
Emily from SWISCO
May 14, 2024 1:40 pm
SWISCO
EXPERT

Hey there! We should be able to help with this. Can you show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? I will do my best to help from there.

Quick Learner from California
May 14, 2024 1:54 pm
Here are the photos requested

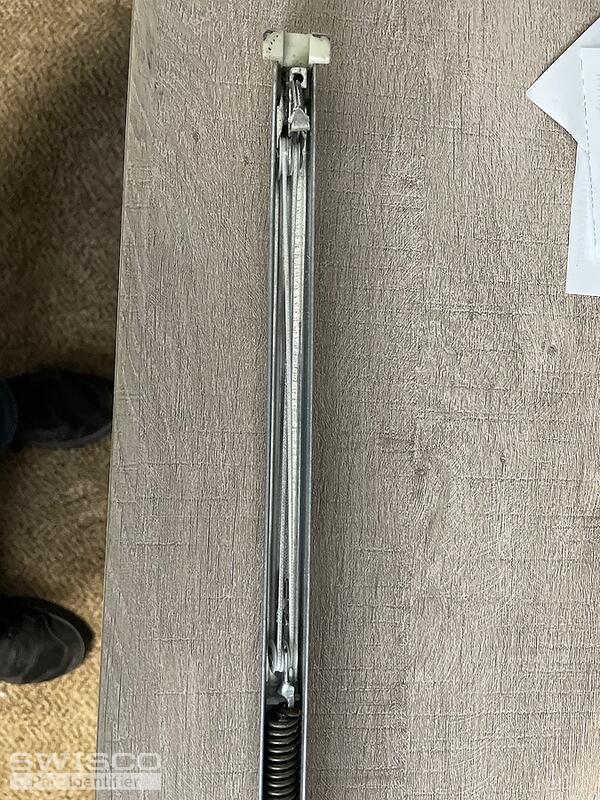

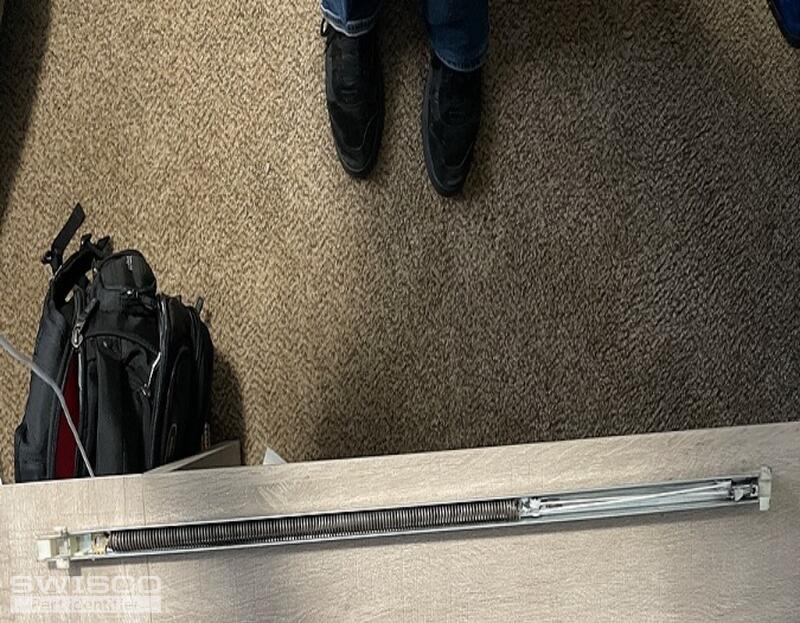

inner spring connection winged top balance assembly
3 user uploaded images
Emily
Emily from SWISCO
May 14, 2024 2:20 pm
SWISCO
EXPERT

Thanks so much! From what I see here, you want either the S380-27 or S385-27 channel balances. The best match depends on the depth of the bottom fitting though, so you'll have to measure as shown below. I also recommend the 2640 stamp option based on your old stamp.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
