Dear Expert,
Would you please help me to find this window balance?
Stamped as 26-5 CMC 34 but couldn't find the exact part on the internet.
I would like to place an order (2 of them) as soon as possible.
Your help would be appreciated.
Best
Brian

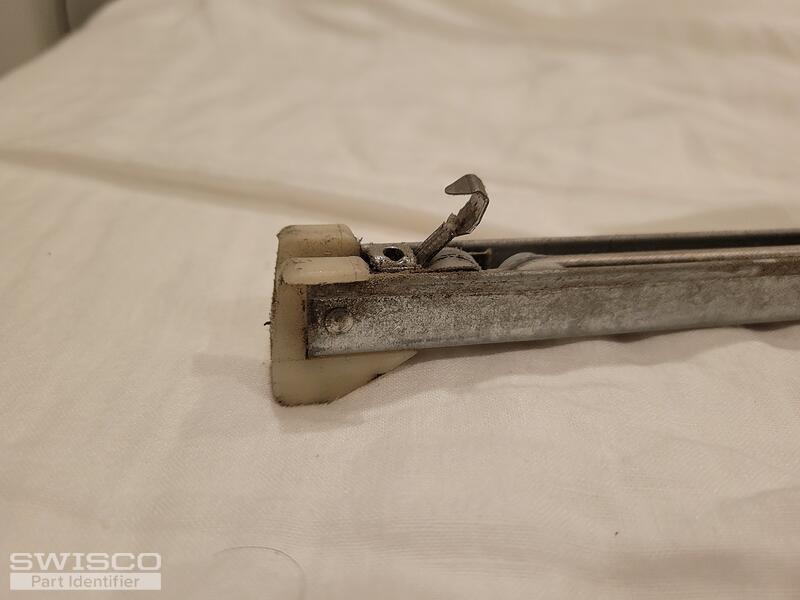

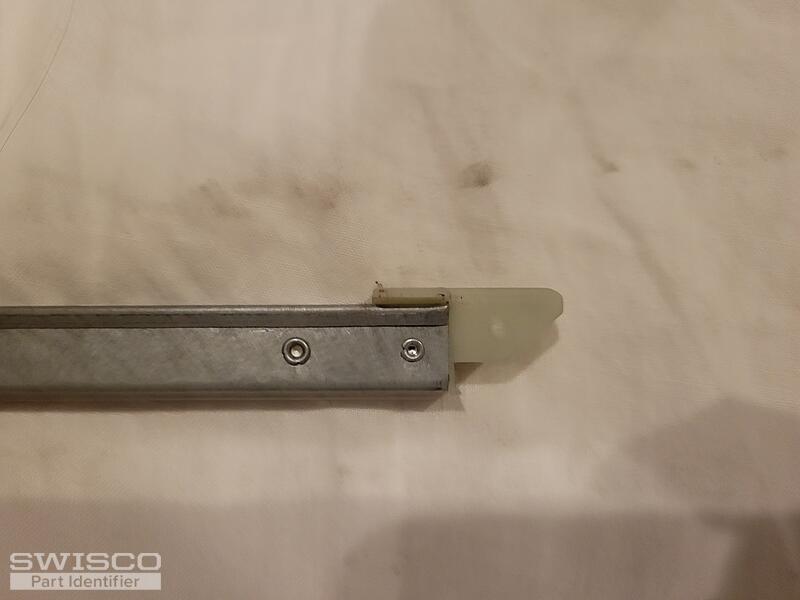

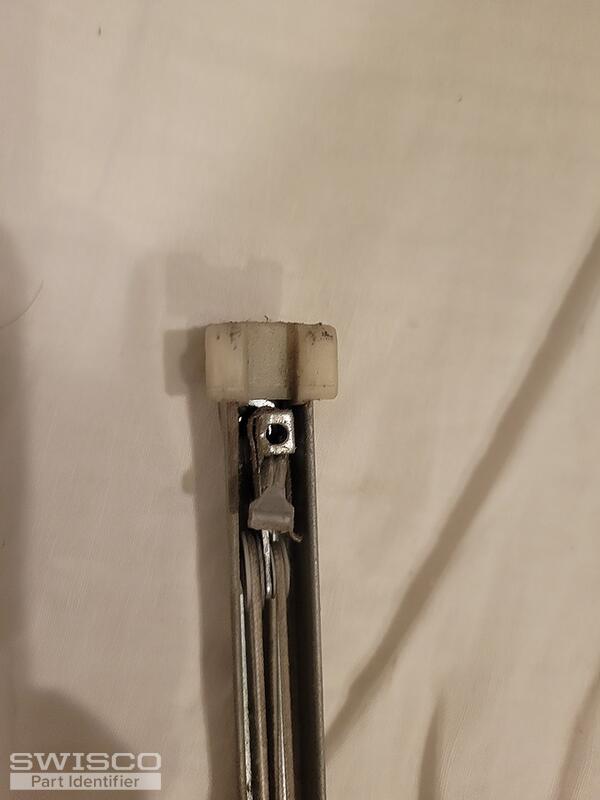

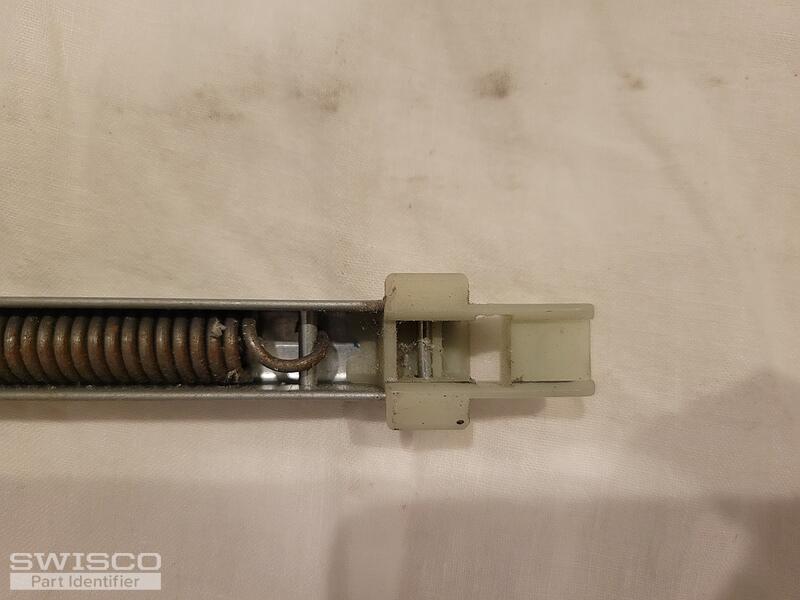

Window Balance 26-5 CMC 34
Home Owner from Irvine, CA
Aug 16, 2023 11:06 pm
3 user uploaded images
3 Replies
Home Owner from Irvine, CA
Aug 16, 2023 11:14 pm
The measurement of length is about 27 inches and the channel is 14 mm.
4 user uploaded images
Casey from SWISCO
Aug 17, 2023 3:54 pm
With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
You'll also need 2650 spring strength options for your replacement balances. Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
