The flexible cord and clip that holds the cord to the side of the window have broken and have been discarded. So I believe the simplest solution is a replacement balance for that side of my window.
Could you let me know which part number I'll need to purchase? Thanks.

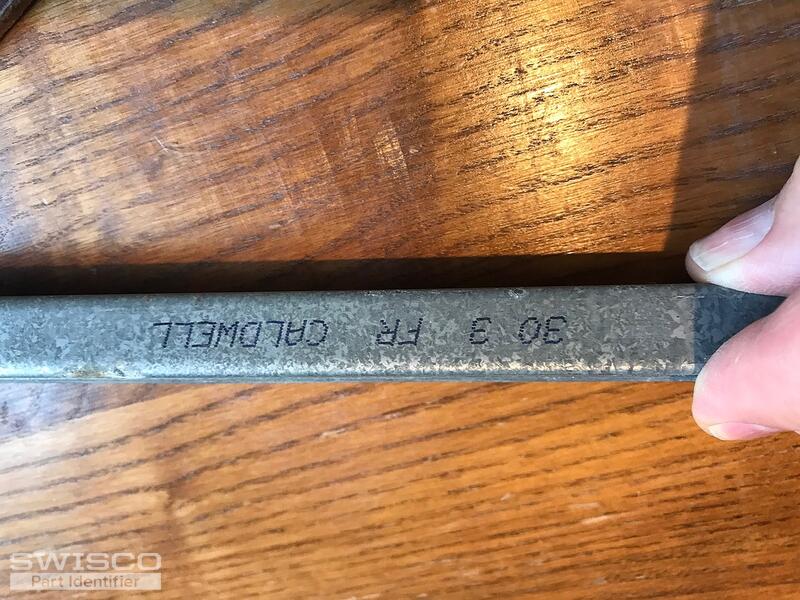

Window Balance: 30 3 FR CALDWELL
Quick Learner from 92620
Jul 12, 2021 2:33 pm
5 user uploaded images
3 Replies
Quick Learner from 92620
Jul 12, 2021 2:51 pm
I forgot to add the length of the Window Channel Balance. It is 31 inches. Sorry.
Emily from SWISCO
Jul 15, 2021 3:46 pm
Hi there!

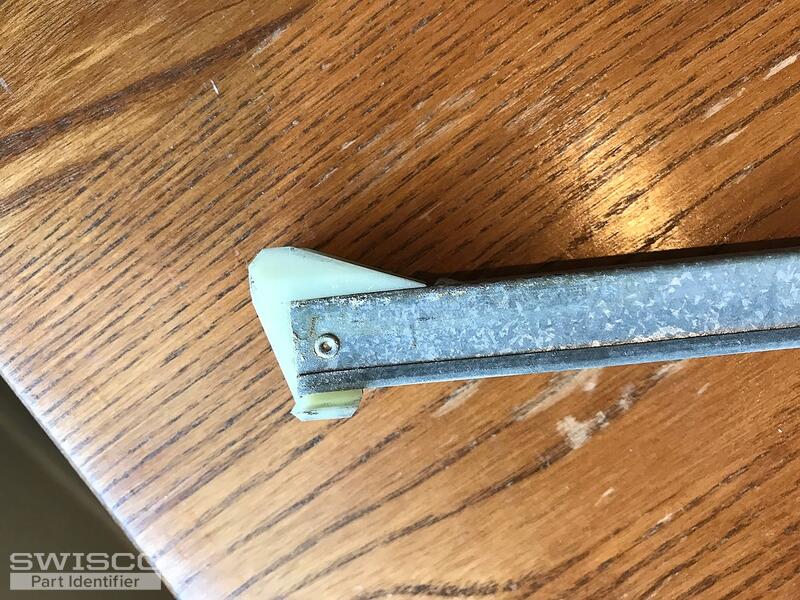

With this combination of attachments, you could have either an S380-31 or S385-31 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 3030.
If you have any further questions just let us know.
Comparison of the S378, S380 and S385 balance shoes.
