26RL Window Balance

A quick learner from Wisconsin says:
Hi I'm looking to replace a window balance for a tilting window.

The balance is 27 inches long and 5/8".

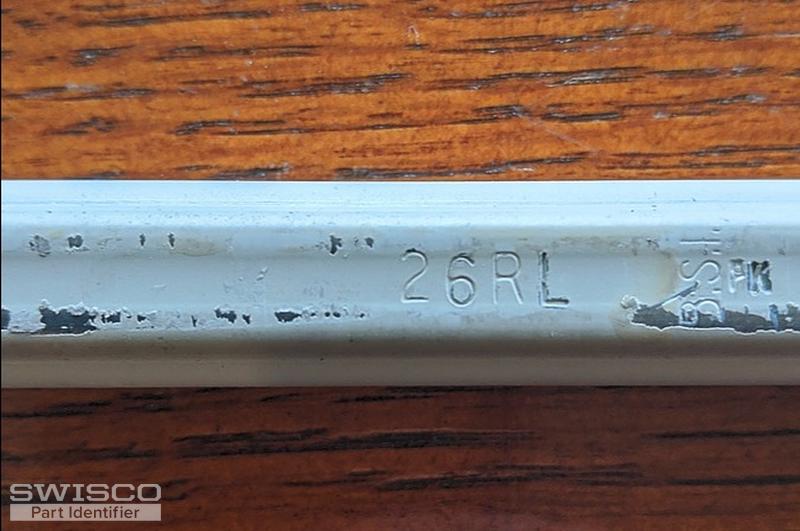

The current balance has a stamp of 26RL
Thumbnail of the uploaded file named IMG_20200411_135524.jpg
Thumbnail of the uploaded file named IMG_20200411_135516.jpg
Thumbnail of the uploaded file named IMG_20200411_135504.jpg
Thumbnail of the uploaded file named IMG_20200411_135452.jpg

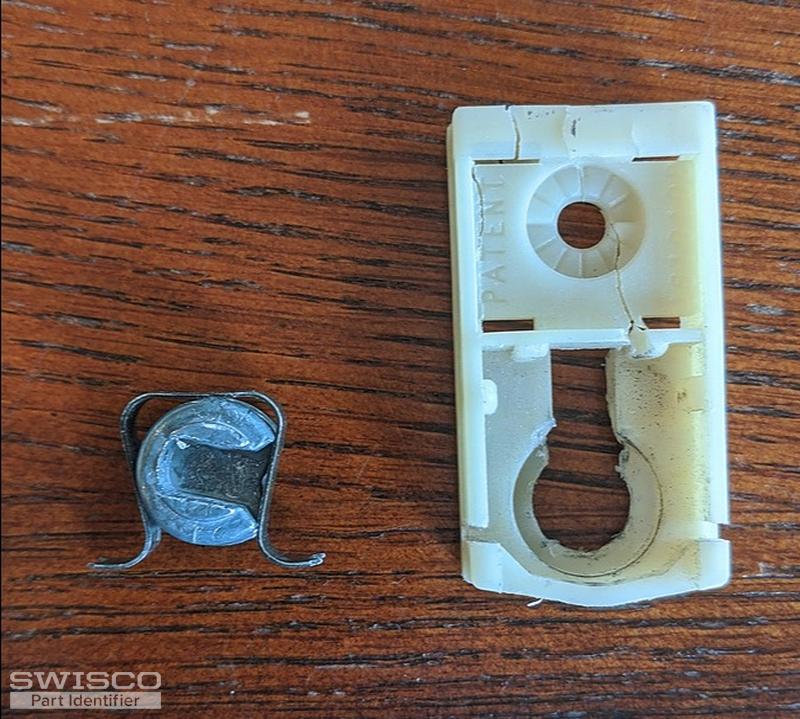

Thumbnail of the uploaded file named IMG_20200411_135411.jpg
Profile picture of Tom
Tom from SWISCO responded:

We should be able to help supply this balance, but I'm not sure how your balance attached to the pivot shoe in your last couple photos. Do you have undamaged versions of these parts that we can look at instead? I feel like there may be some components missing that would give us a clue as to what you have and what we carry that can work.

A quick learner from Wisconsin says:

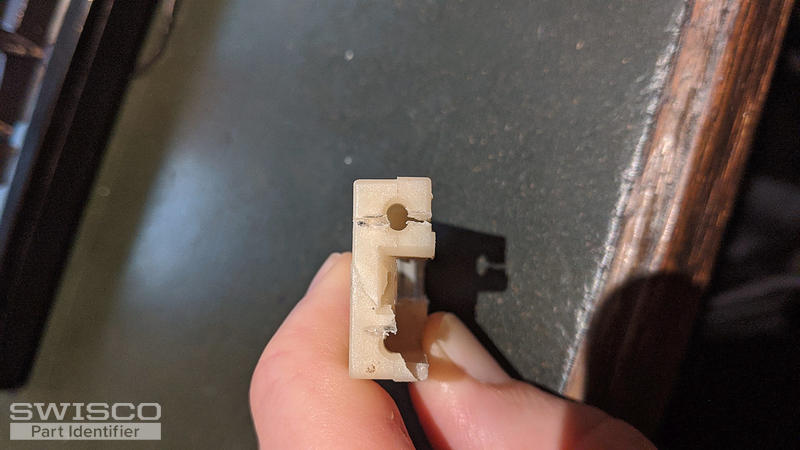

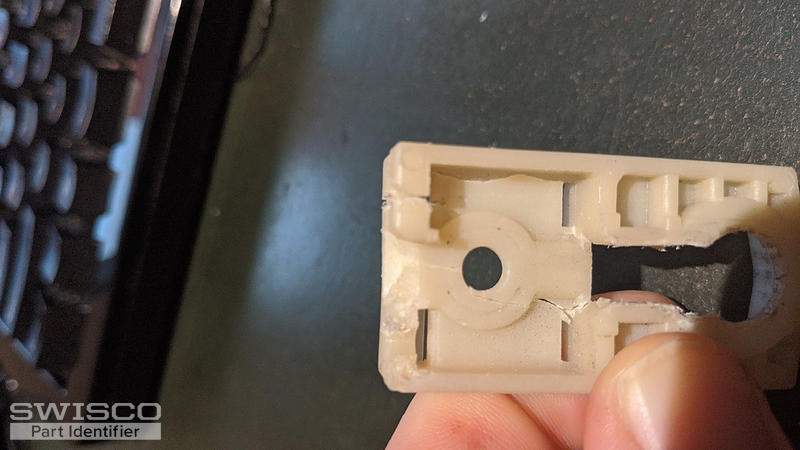

The cord comes in from the top of the shoe and is just knotted underneath.
Thumbnail of the uploaded file named IMG_20200415_073744.jpg
Thumbnail of the uploaded file named IMG_20200415_073729.jpg
Profile picture of Tom
Tom from SWISCO responded:

Thank you! That answers a lot of questions. Please give us a little more time to look into this and we'll get back to you ASAP. Your balance isn't a stock part but we'll do our best to track it down.

Profile picture of Tom
Tom from SWISCO responded:

Alright, we were able to find a replacement option for this balance. We can supply it to you as a custom order. Our newer style is a little different than yours but it should still work for you.

Please note that our balance will be stamped 26R. I've actually never seen a 26RL stamp before, but I believe the 26R is what you need. I'll email you an order link and price quote now for 2 of these. Let me know if you had any questions.
