Window Balance

A handy person from Culver City, CA says:
September 12, 2020
Hi I have Milgard windows where I need to replace the balances, take-out clips, and shoes. Balance is 27" long and says 26 5 FS Caldwell on it. Can you please help me identify which replacement balance I would need? Thank you.
Dan
Thumbnail of the uploaded file named IMG_3857.jpg
Thumbnail of the uploaded file named IMG_3858.jpg
Thumbnail of the uploaded file named IMG_3859.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 16, 2020

Based on your photos, you have either our S380-27 or S385-27. The only difference between them is the size of the bottom fitting, which is indicated on their respective store pages. You'll need to measure your bottom fitting to confirm which one is the better match.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A handy person from Culver City, CA says:
September 16, 2020
Hi.
I also need to replace the shoe. Which shoe would be the best fit (pun intended)? Thanks.
Dan
Profile picture of Tom
Tom from SWISCO responded:
September 16, 2020

That depends on the depth. As indicated by the diagram above, the shoe is either the 15-005 or 15-004.
A handy person from Culver City, CA says:
September 16, 2020
Got it. I'm looking for the portion that connects to the window itself. Pictures are attached. Some sites seem to call that a "shoe". I think they may be called Top Sash Channel Balance Guides? Would you know which one would be compatible with the balances you've mentioned? Thank you.

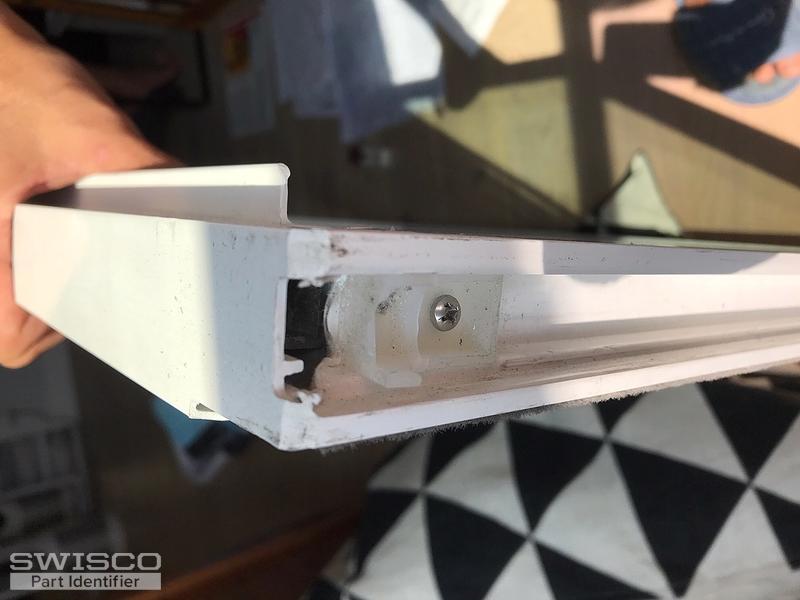

Thumbnail of the uploaded file named IMG_3860.jpg

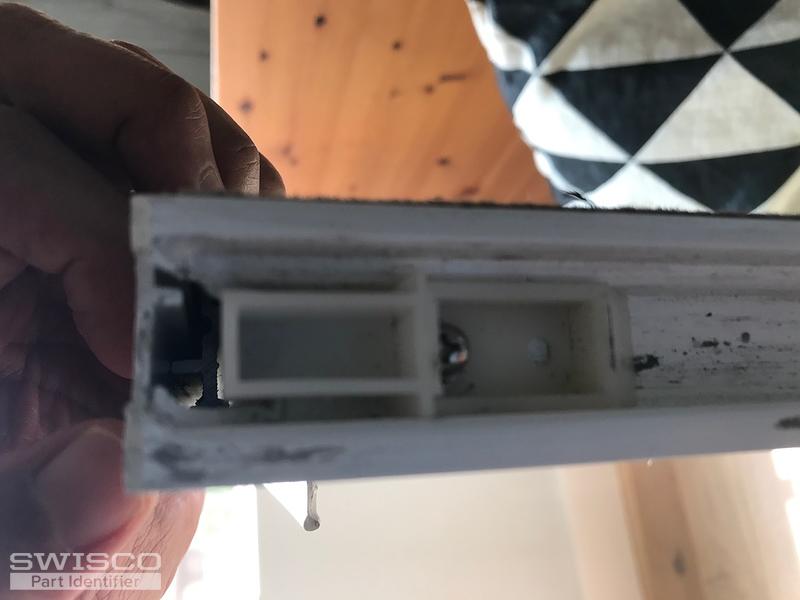

Thumbnail of the uploaded file named IMG_3861.jpg

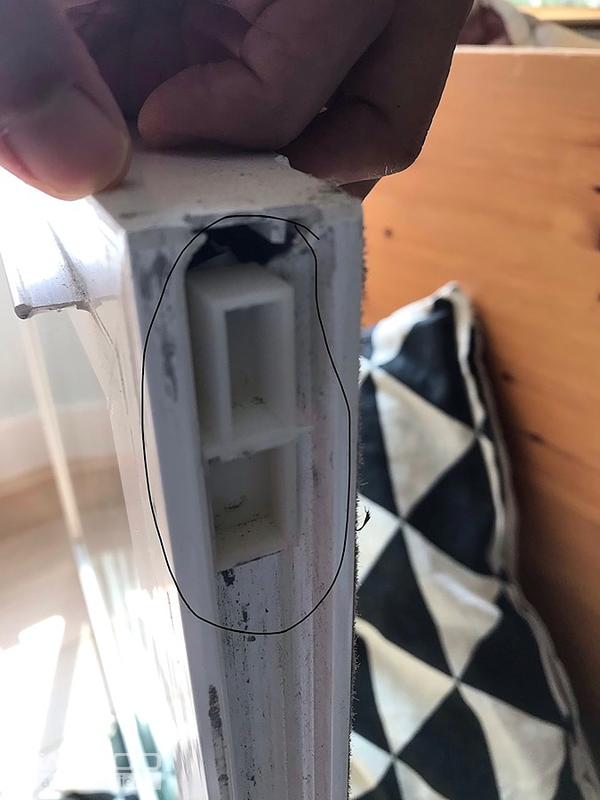

Thumbnail of the uploaded file named IMG_3862.jpg
Profile picture of Tom
Tom from SWISCO responded:
September 17, 2020

Yes, this part is called a top sash guide. Yours in particular is a match for our 18-171.
A handy person from Culver City, CA says:
September 17, 2020
Great. Thank you.
