Window Balance

A quick learner from Florida says:
January 13, 2021

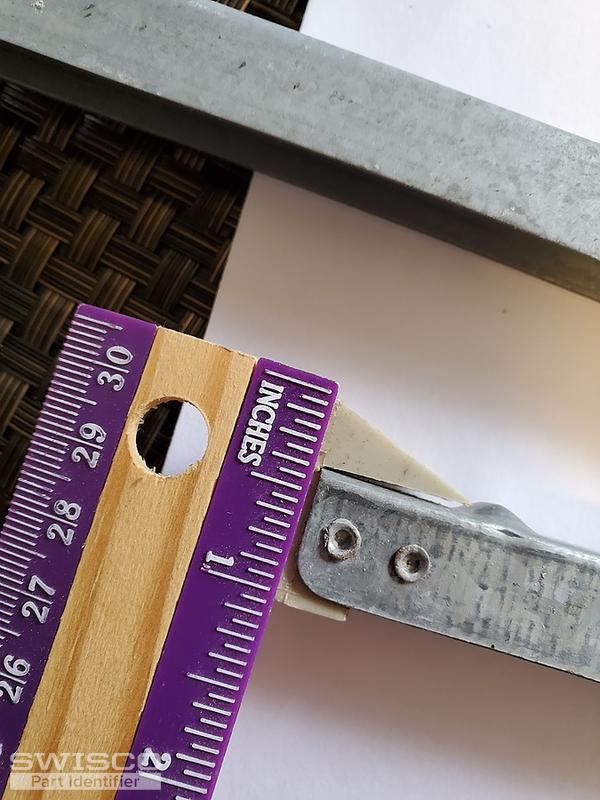

Hello, I have Seasonshield brand windows and the balance info has 28D USB, 28E USB AND 28F USB. Any help would be appreciated. I need 2sets of each.
Thumbnail of the uploaded file named 20210113_112550.jpg
Thumbnail of the uploaded file named 20210113_112533.jpg
Thumbnail of the uploaded file named 20210113_112508.jpg
Thumbnail of the uploaded file named 20210113_112436.jpg
A quick learner from Florida says:
January 13, 2021

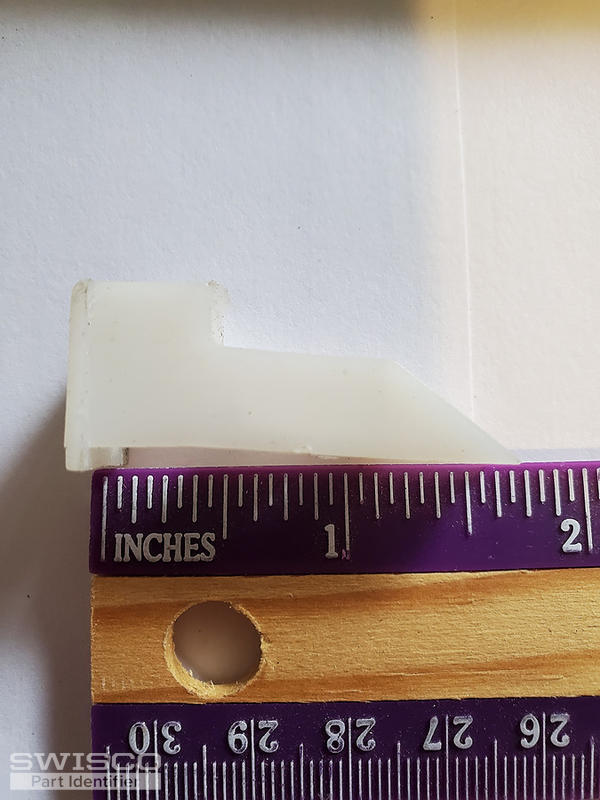

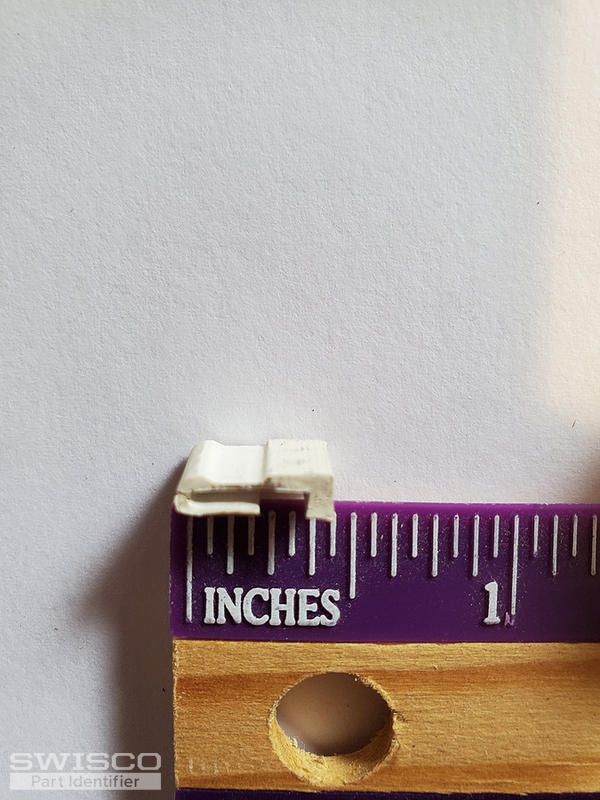

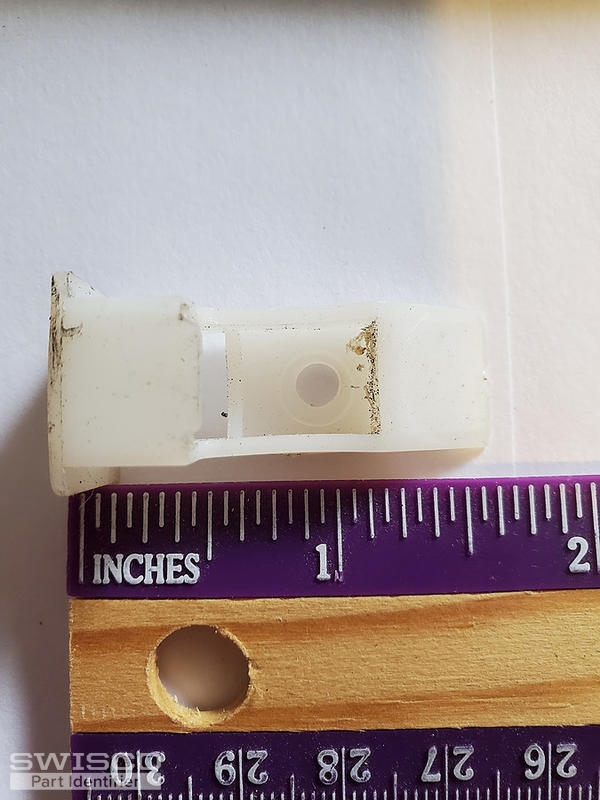

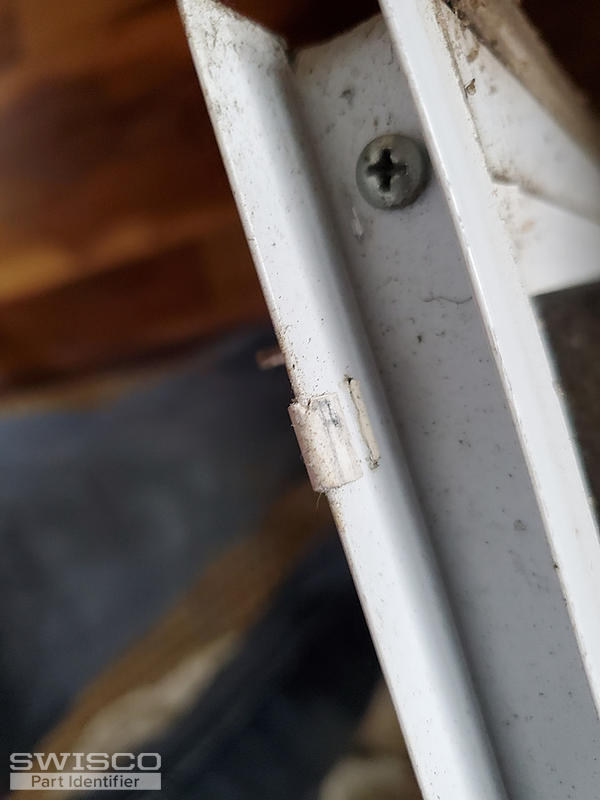

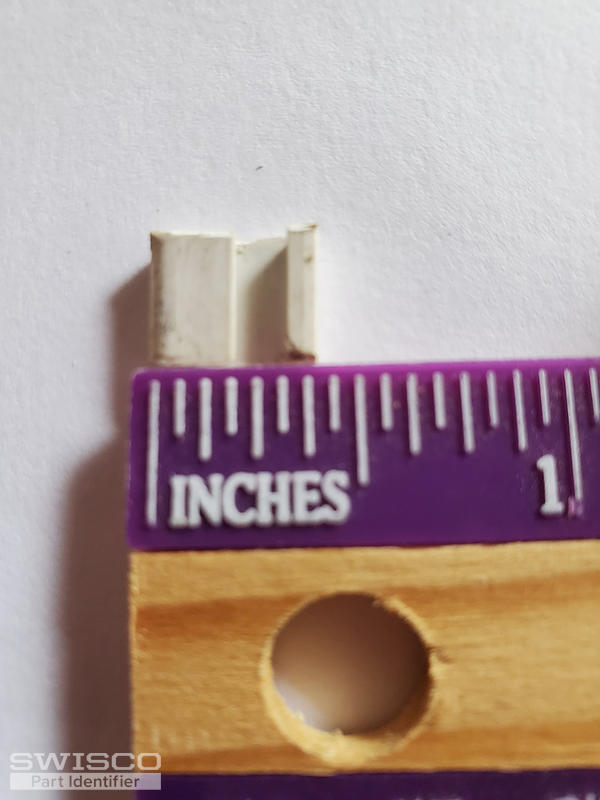

Also looking for tge parts pictured below
Thumbnail of the uploaded file named 20210113_123657.jpg
Thumbnail of the uploaded file named 20210113_123649.jpg
Thumbnail of the uploaded file named 20210113_123626.jpg
Thumbnail of the uploaded file named 20210113_123639.jpg
Thumbnail of the uploaded file named 20210113_114135.jpg
Profile picture of Casey
Casey from SWISCO responded:
January 14, 2021

Hello,

It looks like you have either our S351-29, with a 15-002 bottom attachment, or S390-29, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2840 spring strength option for your 28D stamped balances, 2850 to replace the 28E and 2860 to repalce the 28F balances.


Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
As fr your top sash guide, we've related a few similar options but you will need to carefully compare the dimensions on our product pages to determine if one of them is a match to yours. Unfortunately, we do not carry a suitable replacement for the second guide in your photos. Thank you!
29" Series 351 Channel Balance
29" Series 351 Channel Balance
S351-29
$11.10
29" Series 390 Channel Balance
29" Series 390 Channel Balance
S390-29
$11.10
5/8" Sash Guide, Lawson
5/8" Sash Guide, Lawson
18-201
$1.33
5/8" Top Sash Guide, Kinco
5/8" Top Sash Guide, Kinco
18-166
$1.33
5/8" Top Sash Guide, Seasonall
5/8" Top Sash Guide, Seasonall
18-127
$1.92
5/8" Top Sash Guide
5/8" Top Sash Guide
18-115
$1.89
