Window Balance

Quick Learner

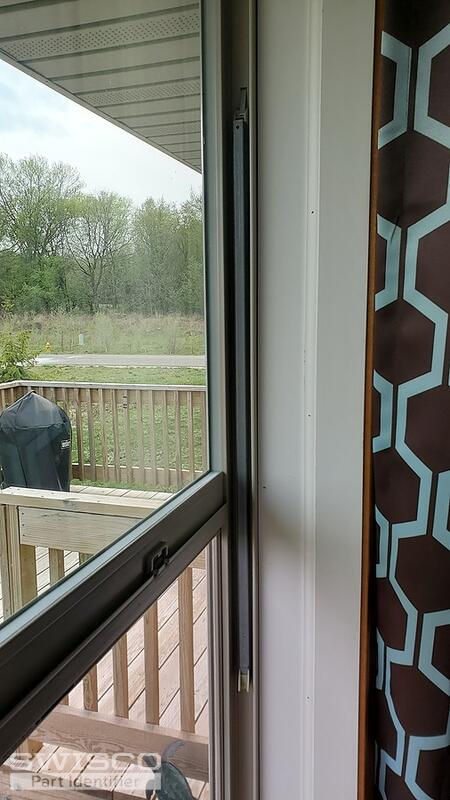

Trying to determine what balance to order. String broke has 27405cj stamped on it. Due to balance is not attached didn't want to remove window till I have replacement part.
2 user uploaded images
8 Replies
Tom
Tom from SWISCO
SWISCO
Expert

I'm afraid you don't have a choice in the matter. These have to be removed to ID. In order to ID this balance, I'll need you to remove it from the window and show me a clear picture of the top and bottom nylon fittings without obstruction. I'd also like you to measure the metal channel as accurately as you can; based on your stamp, it might be 27-1/2" long. If it is, then this will have to be custom made. Finally, please tell me how many you wanted.

Quick Learner

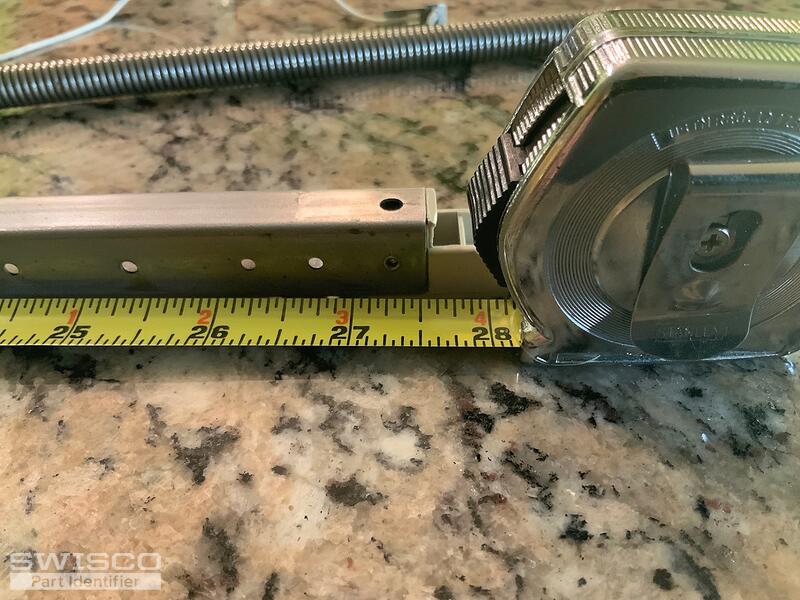

Metal rod length is 27.5 in total length is 28.5in(with plastic tabs included). Width is 9/16in. Quantity is dependant on cost. How much is custom going to be?
3 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thanks for getting back to us. I can confirm cost for you in a moment, but I still can't quite make out the nylon fittings in your photos. Those are very important details so we have to cover that first before we go any further. It looks like you might have a 19-002 top and then either a 15-001 or 15-002 bottom, but I'm not sure.

Please refer to the diagram below and tell me which of the two options is a better match for your hardware. We can then work from there.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
Quick Learner

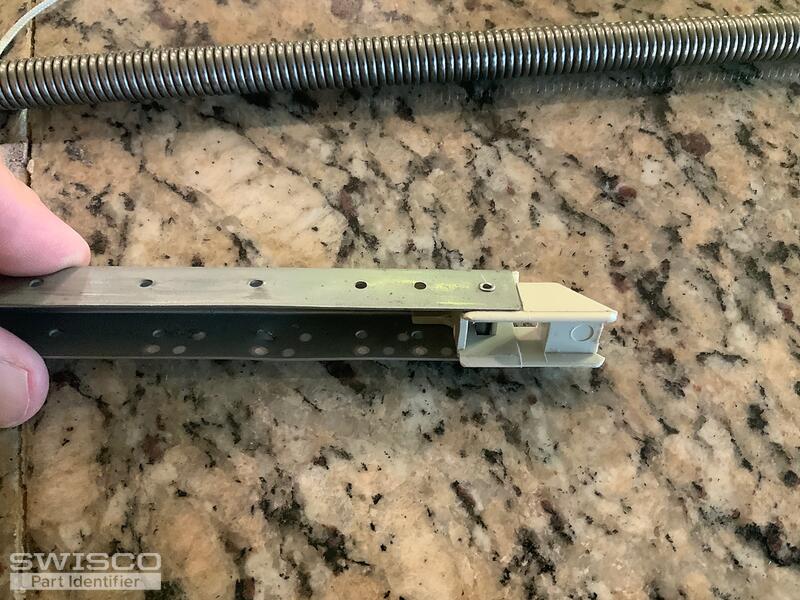

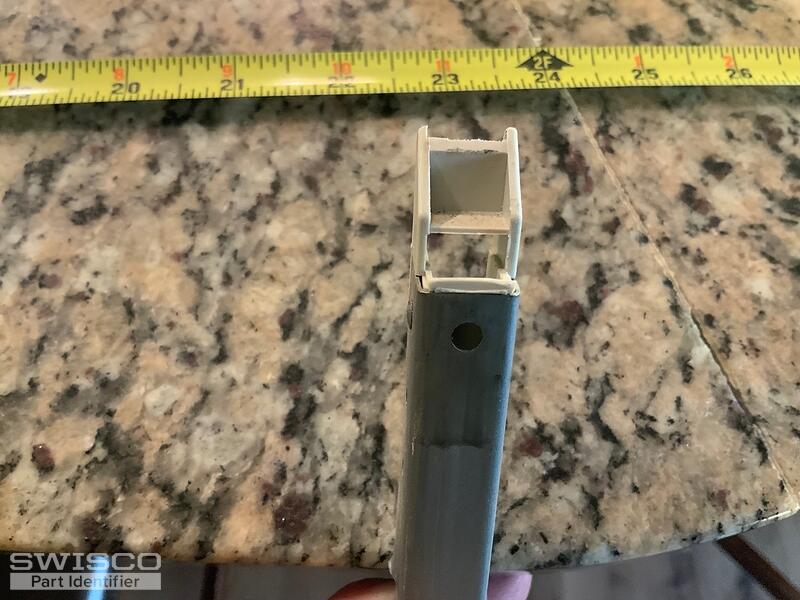

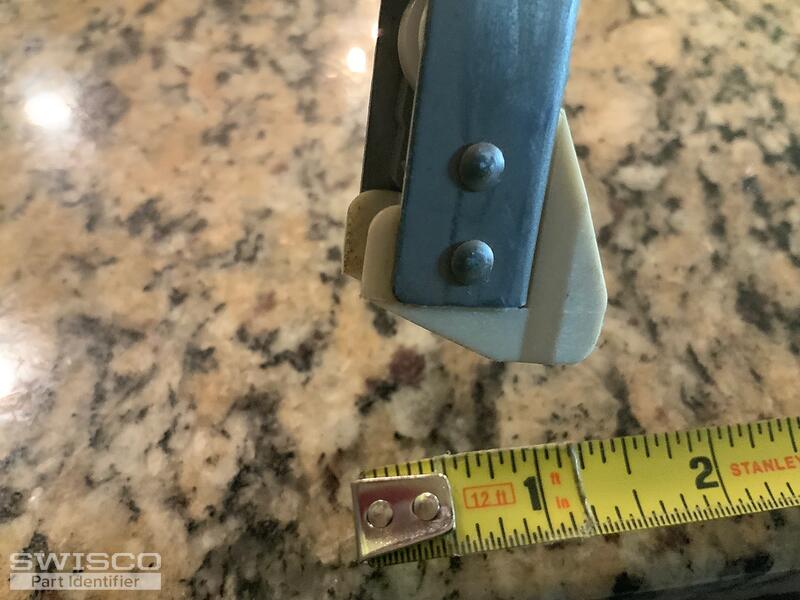

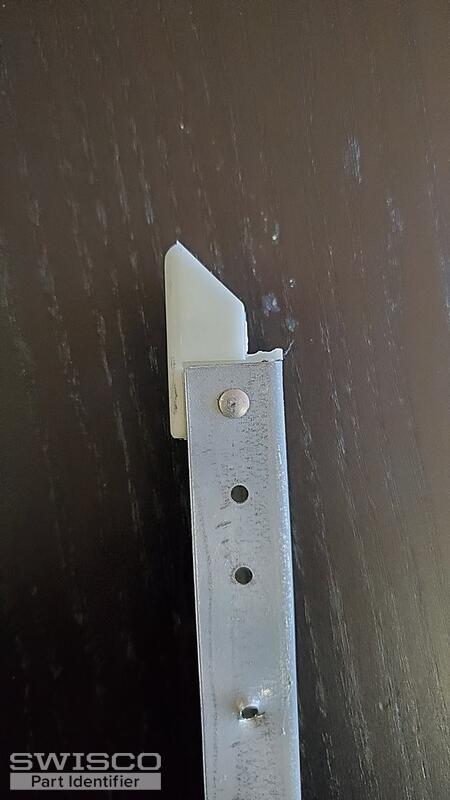

The bottom one looks like it's 1 1/8in . I've added more photos of the nylon fittings.
4 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Thank you. I'll email you a purchase link and price quote now for two balances, which is our minimum. If you wanted to change that quantity just let me know here and I would be happy to do so.

Handy Person

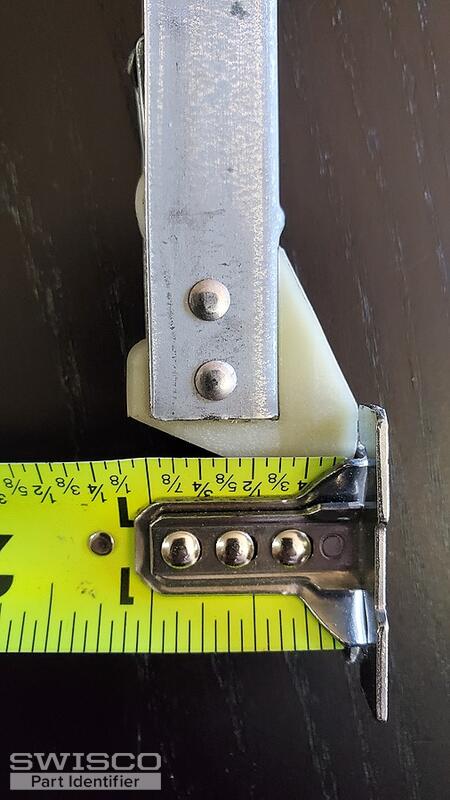

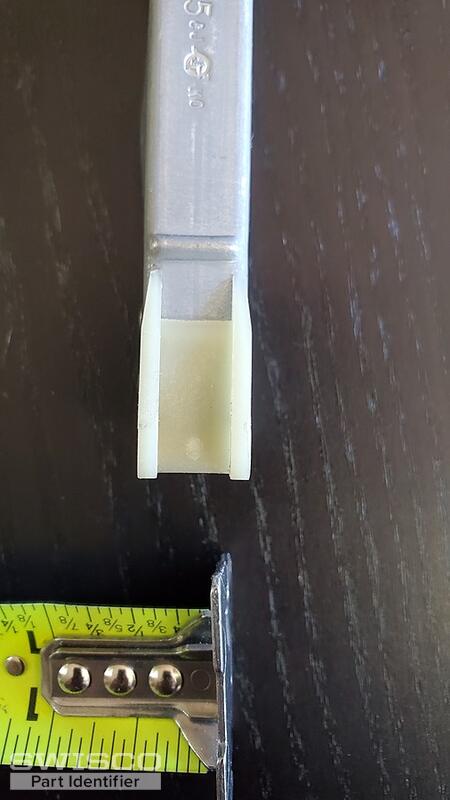

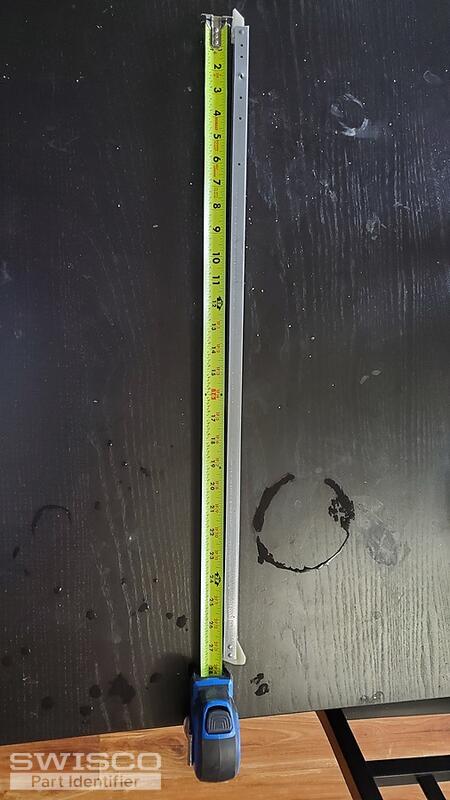

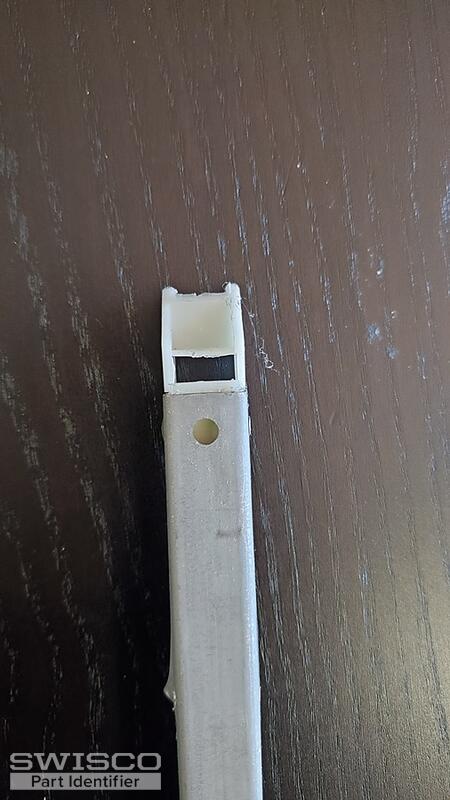

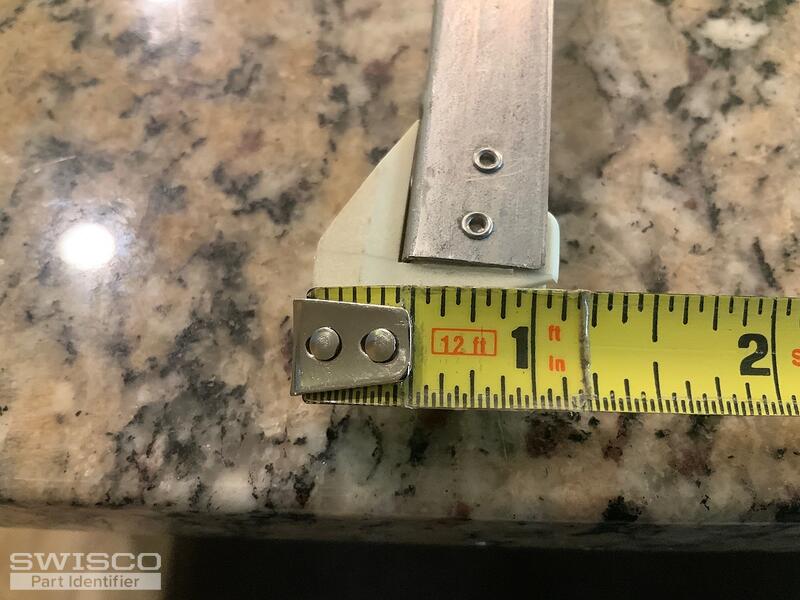

I believe I need the same spring order as above. Can you please advise if I am reading things correctly and if so, can I please have a cost via email as well? Thank you in advance!
5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

We can still supply this balance, yes. Before we go any further, can you kindly tell me what the stamp printed on your original reads? Can you also tell me how many you needed to buy? Both of these details impact price, so I will need that before we can offer a price quote.
