Window Balance

Quick Learner from Fl

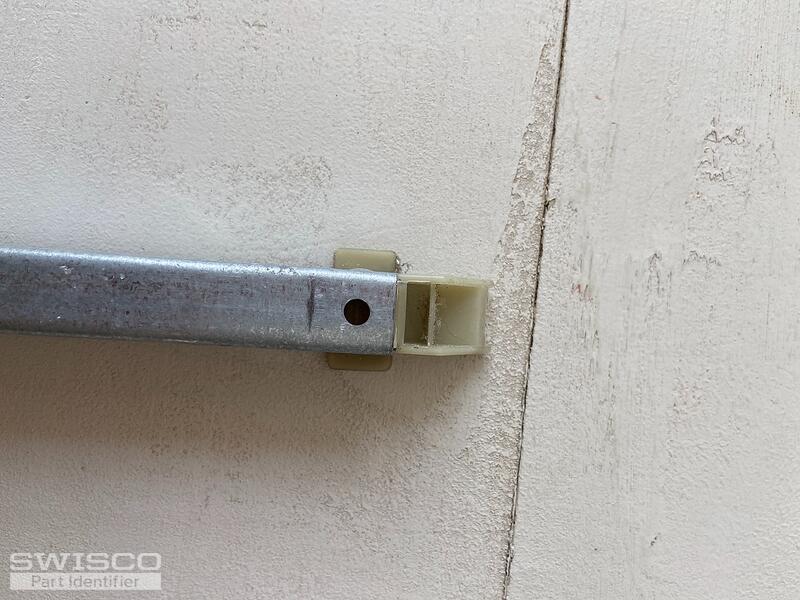

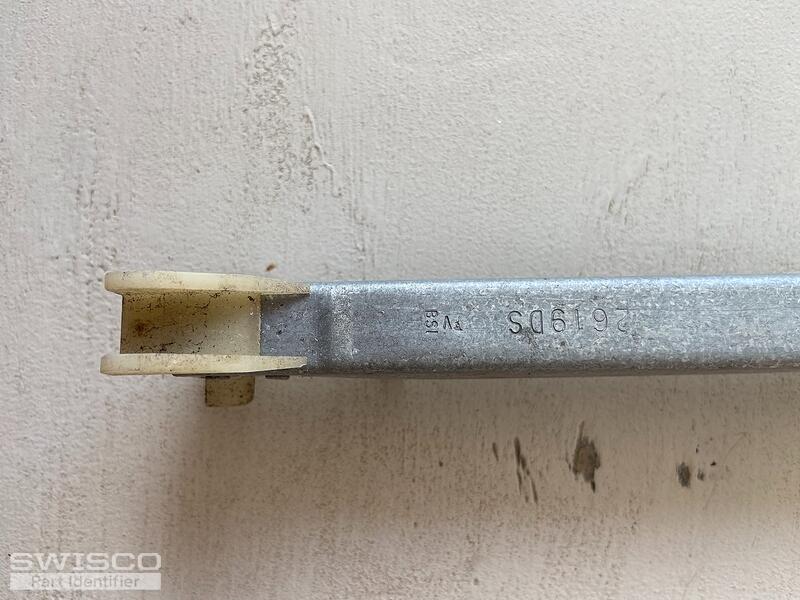

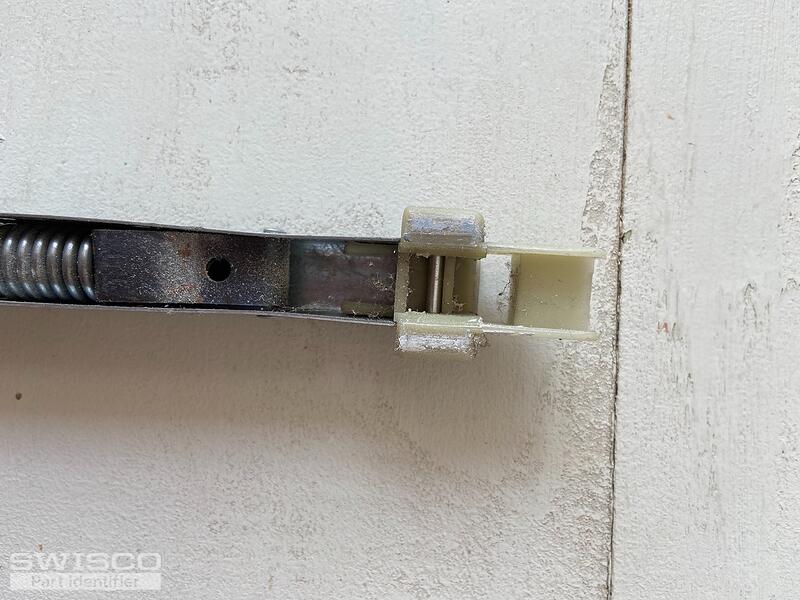

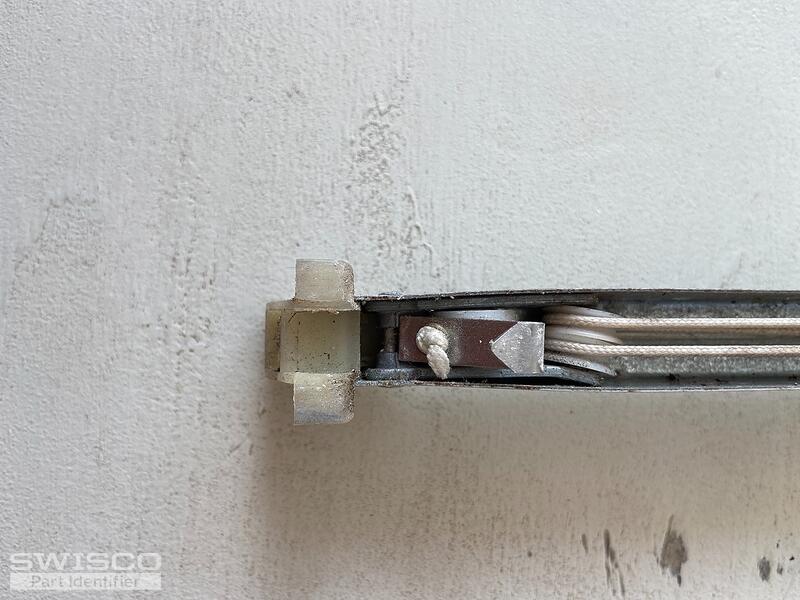

In need of a few 27" window balances.
5 user uploaded images
2 Replies
Casey
Casey from SWISCO
SWISCO
Expert

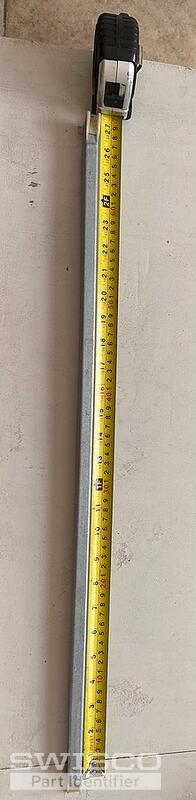

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

I'd also recommend weighing your sash to confirm which strength option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
