Window Balance

A quick learner from Bakersfield says:
June 6, 2021

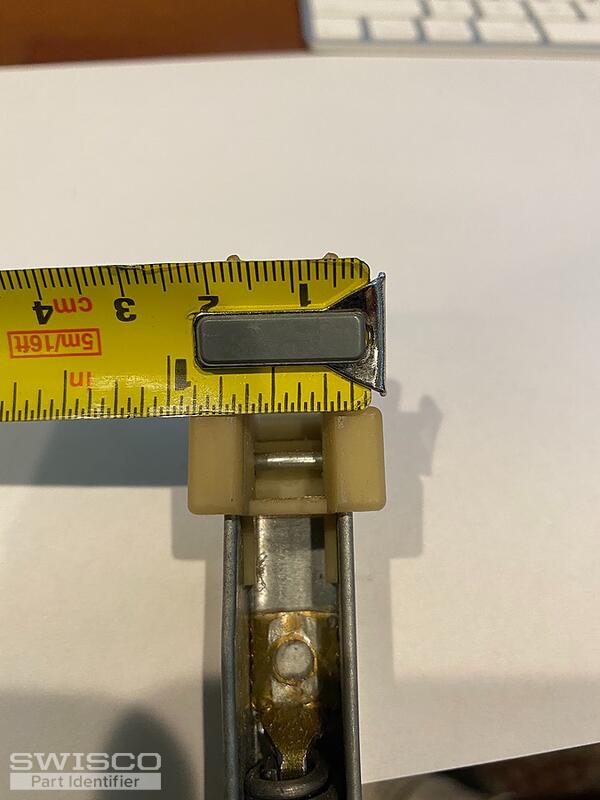

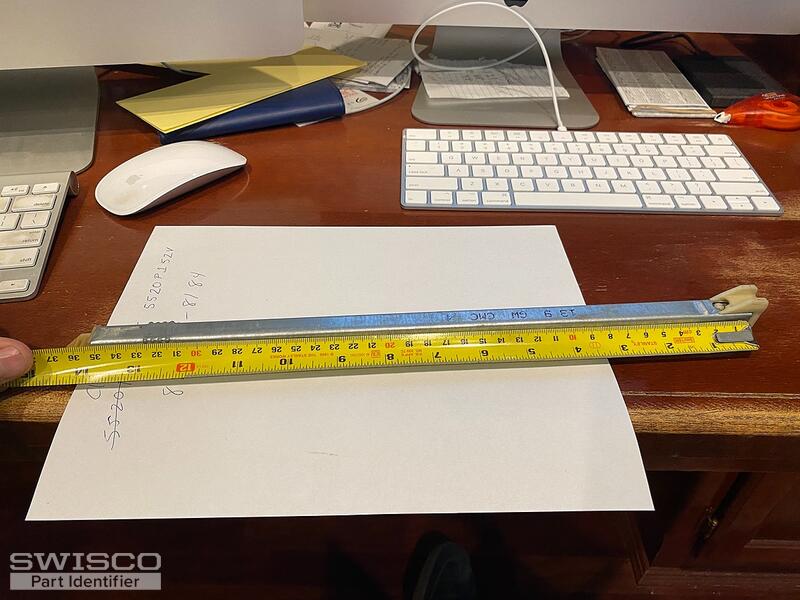

I need 6 of these. They come from a 4'x6' single hung window with a 1'6" vent. Window was made circa 2004
Thumbnail of the uploaded file named 004E2B39-F3AC-4063-B60E-7979C9B54DA2.jpeg
Thumbnail of the uploaded file named 13620EF9-4322-449F-A0DE-297592B07FE0.jpeg
Thumbnail of the uploaded file named 0AFA5B58-E26A-479A-B1BB-7B3850E667E5.jpeg
Thumbnail of the uploaded file named FC31D2DD-A8FB-499B-908F-09F826BD40A1.jpeg
Thumbnail of the uploaded file named 01EF7C24-392F-4030-8ABD-57A5EB846035.jpeg
Profile picture of Paul
Paul from SWISCO responded:
June 10, 2021

Hello!

Living in Bakersfield, you most likely have our S385-14 channel balance where the bottom nylon shoe depth is 1-3/32". Please compare this to your current bottom shoe and see what you think.

As for your spring weight, you'll need to remove your sash and weigh it to choose the appropriate weight option. There's a chart on the S385's product page that shows you which option you'll need based on the weight of your sash.
14" Series 385 Channel Balance
14" Series 385 Channel Balance
S385-14
$9.34
