Window Balance

Quick Learner from NH
Jun 5, 2023 9:26 am

Hello, my name is Duane and I am looking to purchase some replacement balances. I am hoping you can help me identify which balances I have so I order the correct ones. Thank you for your help!

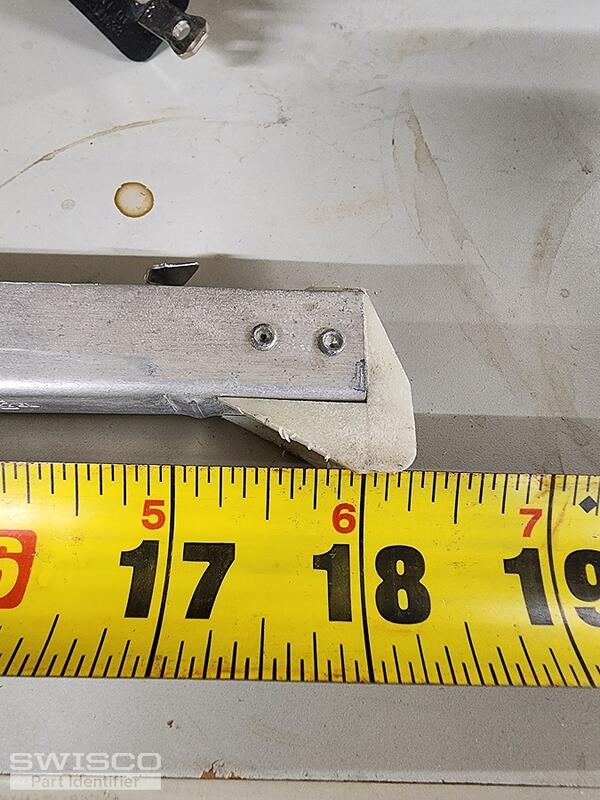

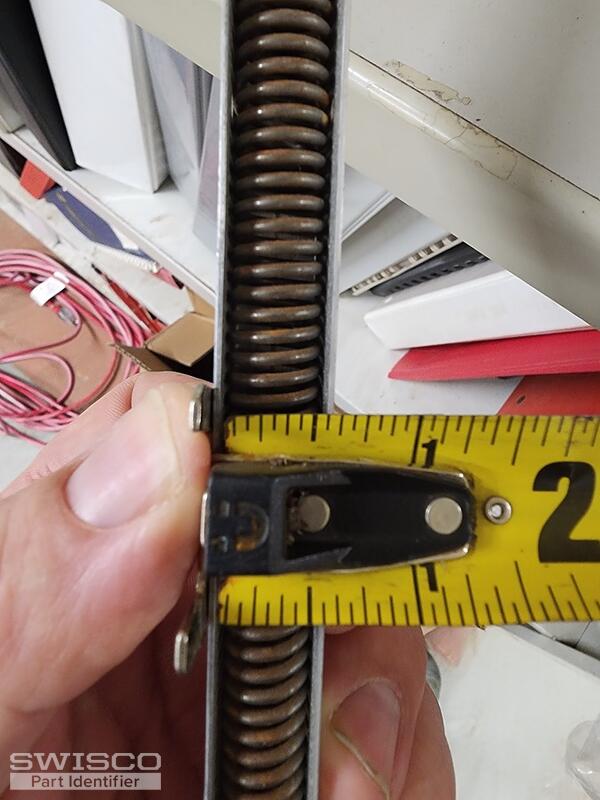

1763 BSI 20230605_091859 20230605_091818 20230605_091801 20230605_091718
5 user uploaded images
3 Replies
Casey
Casey from SWISCO
Jun 6, 2023 2:33 pm
SWISCO
EXPERT

Hello,

It looks like you have either our S351-18, with a 15-002 bottom attachment, or S390-18, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need.

Due to your unusual stamp code, you will need to weigh your sash to determine which option you'll need for your replacement balances. There is a chart on the product page that explains how to choose your option based on the sash weight.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Quick Learner from NH
Jun 6, 2023 3:20 pm

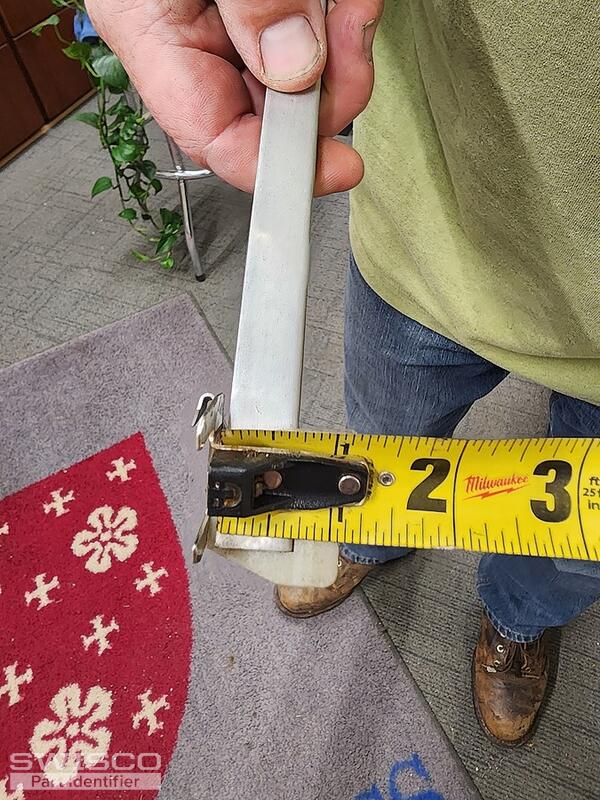

The width measurement looks like 1 1/8". So it seems like we have the S390 with a 15001 bottom. Correct?
20230606_151722
1 user uploaded images
Casey
Casey from SWISCO
Jun 6, 2023 3:39 pm
SWISCO
EXPERT

We can't make out accurate dimensions from photos but it does look like your shoe is over 1" deep. If so, then the S390 would be the way to go.
