Window Balance 27B

Home Owner from Texas
Jan 15, 2024 5:07 pm
I believe I am in need of a SWISCO replacement balance. The potential part number identified is "27B JO5 CMC 3". I would like help to get a replacement or equitable window balance to replace my old one. Thank you!
image image
2 user uploaded images
3 Replies
Casey
Casey from SWISCO
Jan 17, 2024 9:23 am
SWISCO
EXPERT

Hello,

Your channel balance resembles the S795-27 with a 27B strength option except that your assembly uses the 15-272 bottom fitting for installation. We can supply replacement balances with this shoe attached through a custom order.

Alternate view of 15-272
Alternate view of 15-272

Alternate view and dimensions for 15-272
Alternate view and dimensions for 15-272

To get started, we'll need to see a photo of the metal clip at the end of the balance pulley cord that is used for installation. Also, please note that the minimum order would be two balances since it is important to replace both sides at once to ensure that the sash is equally supported.

Home Owner from Texas
Jan 17, 2024 4:44 pm

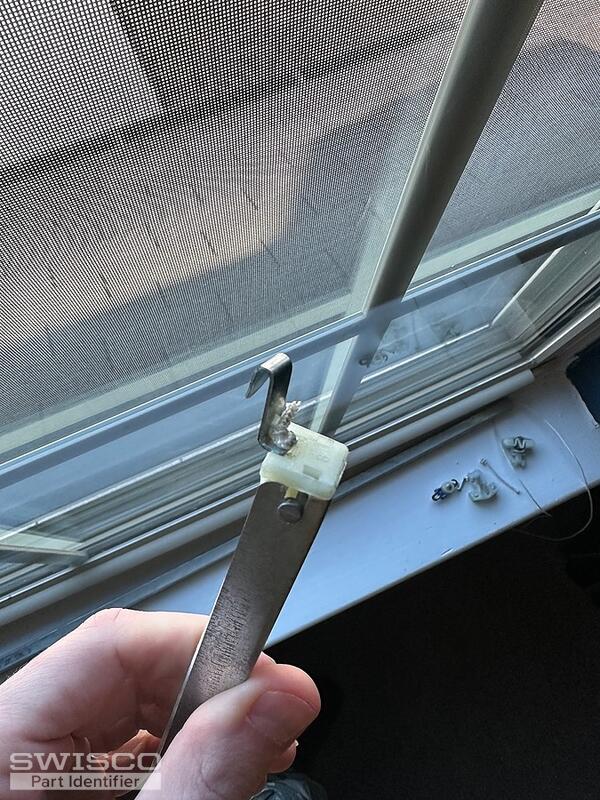

This is the metal clip for mounting as well as the mounting hole.
IMG_2152 IMG_2153 IMG_2154
3 user uploaded images
Casey
Casey from SWISCO
Jan 18, 2024 8:21 am
SWISCO
EXPERT

Thanks for getting back to us. We just sent over an order link and price quote for the balances you requested. Note that the 27B strength option for these balances will support a window sash between 11-17 lbs. Take a look and let us know if you need anything else.
