Window appears to have been forcibly removed shearing off the springs to the window balance. Balance body and shoe appear undamaged.
The springs are marked as 6.5 x 35, and #7.5 x 35" respectively.
I need the two sets of springs to repair this window balance.
Please advise.
James
Hi James, thank you for posting,

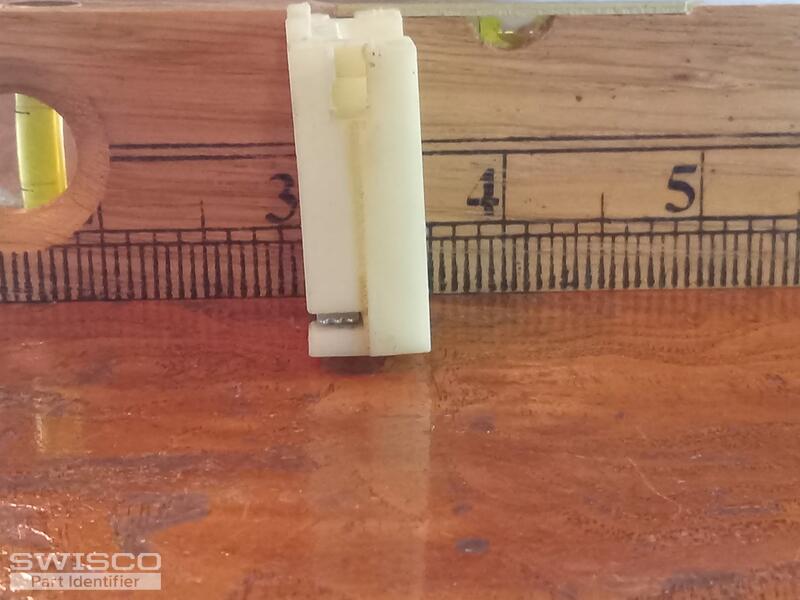

To further review, are you able to provide a picture of the coil shoe that these coils attached? Can you also confirm if the coil is 1/2" or 3/8" thick? From there we can confirm the best fit for your window. Thank you!
Thank you,

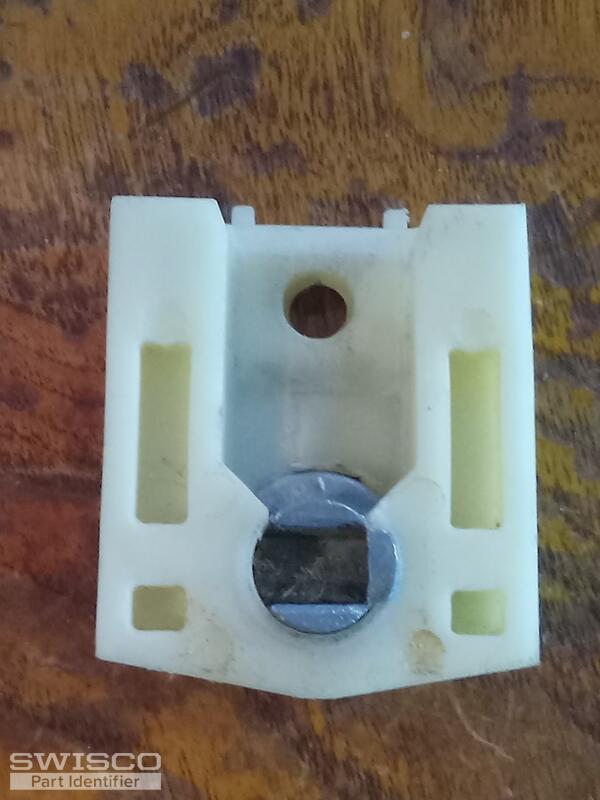

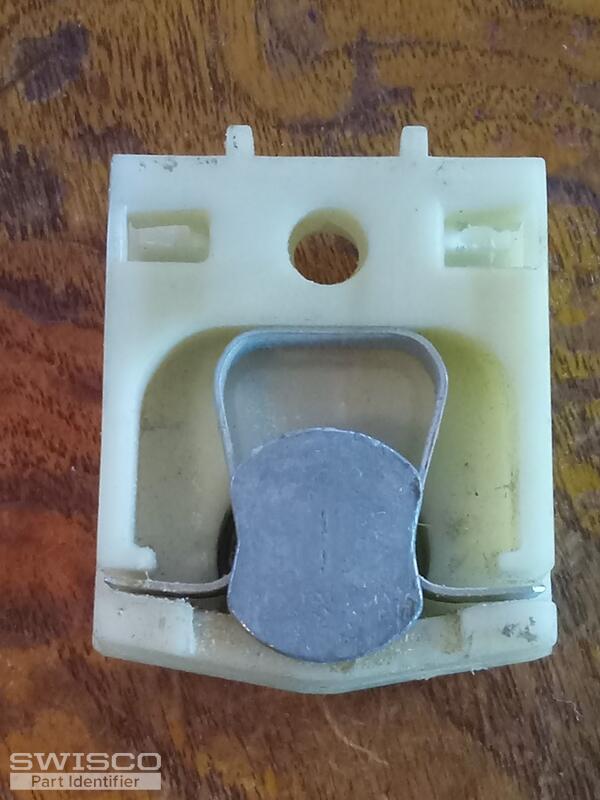

Your pivot shoe resembles the 15-228. If the coil springs are a 1/2" thick, please review the Series 160 coils.
It appears the cover is marked with "14" indicating the assembly can support 14 pounds of weight. See the S160-6 and S160-7 coil springs that can be stacked to get to 14 pounds of support. Together with the other side, the total sash weight should weigh 28 pounds. We recommend weighing the sash to confirm this.
Please review all dimensions and let us know if you have any additional questions!
