Window Balance.

Home Owner from WA
I need to replace three pairs of window balances. On the front of the frame is BSI 2130.
4 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hello there. It looks like you have either an S351-22 or S390-22 Channel Balance. The only difference between these two balances is the 'depth' of the bottom nylon shoe, or the 'heel-to-toe' measurement. See the diagram below for reference. Measure your old balance's shoe depth to see what matches best. In either case for a stamp option choose 2130.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.

Home Owner from WA
I think it is a S 390.

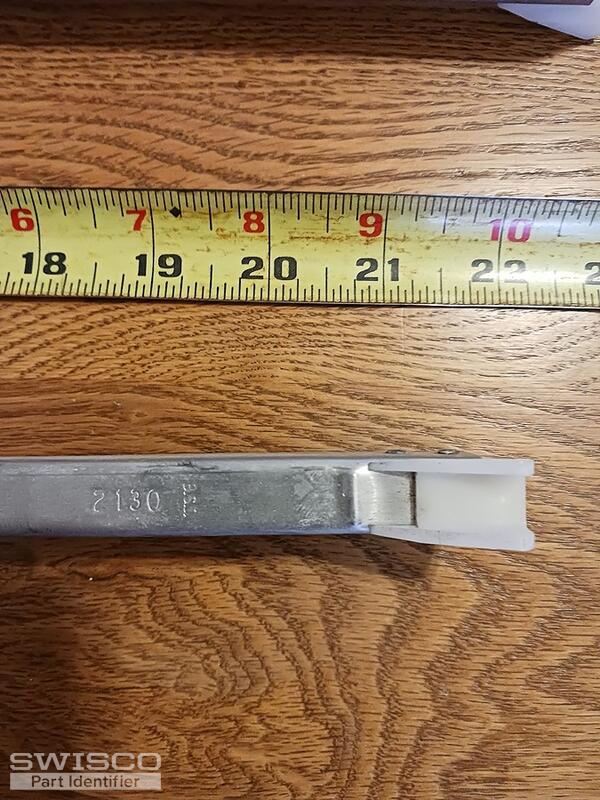

Total lenght +23" Lenght of the metal frame =22"
Bob
Bob from SWISCO
SWISCO
Expert

We measure channel balance length on just the metal channel, without including the end attachments. So if you are confident it is a Series 390, then you'd need the S390-22, stamped 2130. Let me know if you have further questions!
