Window Balance Assistance

A home owner from Bremerton, Washington says:
July 15, 2022

Hello,

Thanks in advance for your help!

Based on the information from your website, it appears that we have "block and tackle rod" style window balances. Upon closer inspection of our balances, it was not a big surprise to learn that the industry has discontinued the manufacture and use of this type.

Window details:

*Single hung window (vertical slider)

*Tilt sash

*Vinyl frame

*Bottom sash measures 26" W x 29-3/4" H (not including the two latches on top of the frame). Weight of bottom sash is 18.8 pounds. Glass opening is 27" H.

*Slot in window track is approximately 5/8" wide. The plastic clip that rests under the sash tilt pin measures approximately 1" wide.

Attached photos (my submission was limited to five):

01_Window Balance (all).jpg

09_Window Balance (sash tilt pin clip close-up).jpg

21_Window Balance - upper (in-situ).jpg

23_Window Balance - lower with string connection (in-situ).jpg

33_Window Track (empty).jpg

+++++

Please let me know if any additional information or photos are needed to identify suitable replacement window balances.

Regards,

Alan

Thumbnail of the uploaded file named 01_Window Balance (all).jpg
Thumbnail of the uploaded file named 09_Window Balance (sash tilt pin clip close-up).jp
Thumbnail of the uploaded file named 21_Window Balance - upper (in-situ).jpg

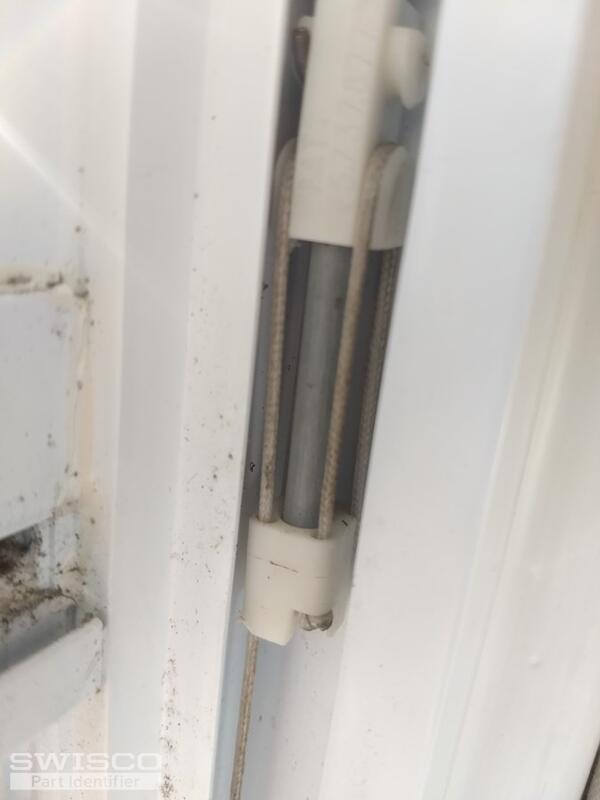

Thumbnail of the uploaded file named 23_Window Balance - lower with string connection (

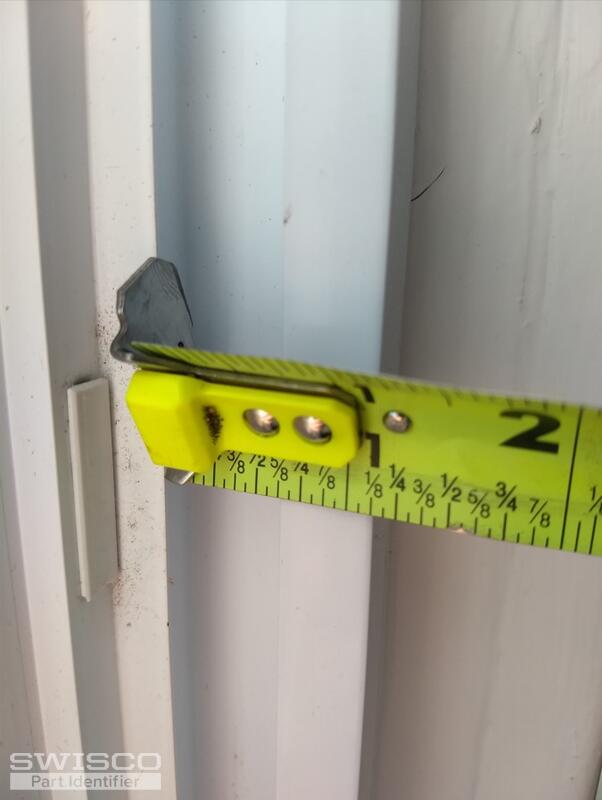

Thumbnail of the uploaded file named 33_Window Track (empty).jpg
Profile picture of Casey
Casey from SWISCO responded:
July 21, 2022

Hello,

Based on your photos, you can use the S775-28 channel balance with a 28C strength option to replace your old-style assembelies. It also looks like you'll need the 1-1/4" wide shoe option for your assembly. Take a look and thanks for posting!
A home owner from Bremerton, Washington says:
July 22, 2022
Hi Casey,

Thanks for the quick reply and guidance!

Per your recommendation, I have ordered two pairs of the 28" Series 775 balance (Option 28C with 1-1/4" Shoe).

Looking forward to trying them out. The link to the S775 installation guide was also much appreciated, and the process seems very straight-forward.


Regards,

Alan
28" Series 775 Balance
28" Series 775 Balance
S775-28
$21.91
How to install a S775 balance
How to install a S775 balance
GUIDE
READ >
