Window Balance Confirm Part

A handy person from Nashville, TN says:
October 14, 2020

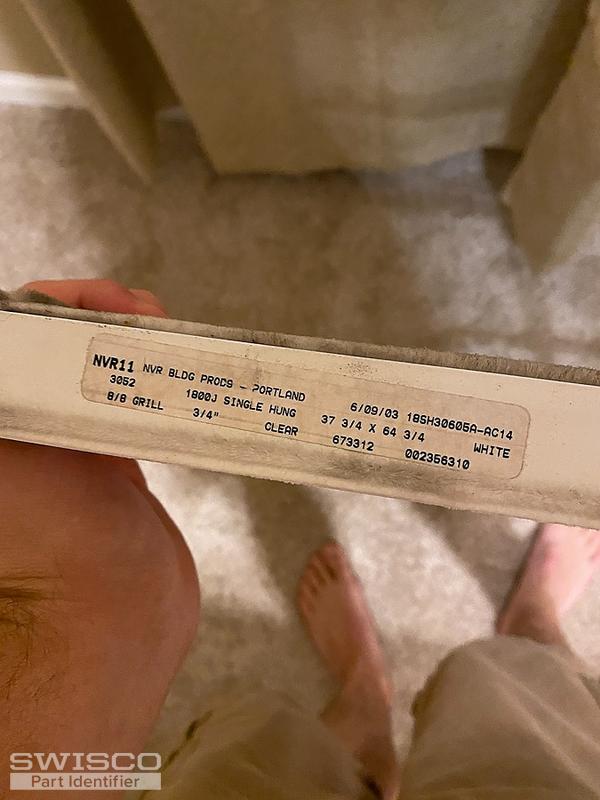

I think I need the S795-30, but I want to be sure I don't need any other parts of accs. to make this work for my system. Let me know what you think. Measured at 30"
Thumbnail of the uploaded file named CABABEAA-04E8-4899-9B58-72996203AB95.jpeg
Thumbnail of the uploaded file named 552D6E49-73CD-46C1-9ABA-A630AB000E3B.jpeg
Thumbnail of the uploaded file named 4E6F0A1A-F8B7-4063-80C0-BEC826F0218D.jpeg
Thumbnail of the uploaded file named C9FD167A-475B-4193-AC37-43849B231E83.jpeg
Profile picture of Casey
Casey from SWISCO responded:
October 19, 2020

Hello,

I agree that your balance resembles the S795-30 channel balance with a 30C strength option and 1-1/4" wide t-lock shoe. Just keep in mind that our balance has a screw tab for installation at the end of the pully cord, where some of these balances use a hook. If yours has a hook, you may be able to use the 26-200 screw plug us the hook of your original balance installs in a square cutout in the jamb. Take a look and see what you think.
Balance Screw Plug
Balance Screw Plug
26-200
$0.49
30" Series 795 Channel Balance
30" Series 795 Channel Balance
S795-30
$13.87
How to install the 26-200 Screw Plug
How to install the 26-200 Screw Plug
VIDEO
WATCH >
How to Install a T-Lock Shoe on a Channel Balance
How to Install a T-Lock Shoe on a Channel Balance
VIDEO
WATCH >
How to Convert a Crossbow Balance to a Channel Balance
How to Convert a Crossbow Balance to a Channel Balance
VIDEO
WATCH >
Modifying the Series 795 Balance
Modifying the Series 795 Balance
GUIDE
READ >
