Window Balance Help

Handy Person from Oceanside, CA

Aug 14, 2020 11:48 am

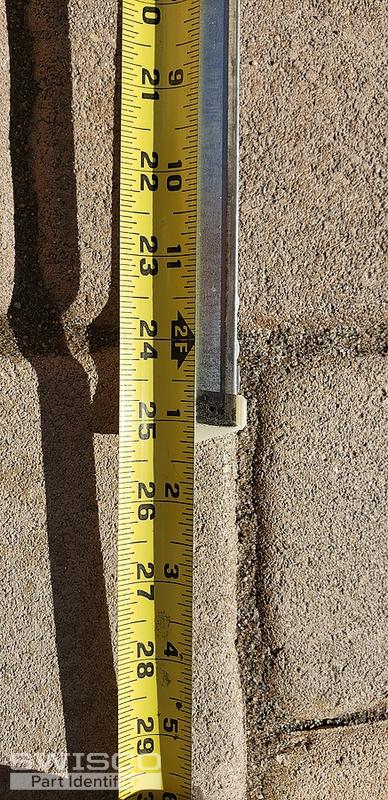

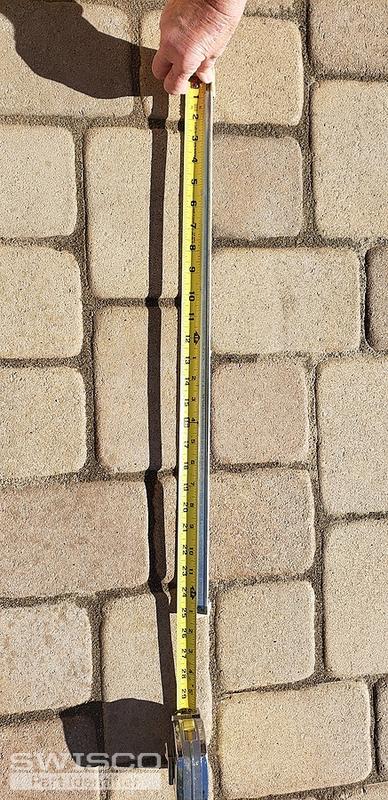

I need help picking a replacement balance spring for my window. I have more pictures if needed.

5 user uploaded images

5 Replies

Handy Person from Oceanside, CA

Aug 14, 2020 11:49 am

I've attached more photos.

5 user uploaded images

Bob from SWISCO

Aug 19, 2020 9:21 am

This looks like either our S380-25 or S385-25, depending on the depth of the bottom nylon shoe. You'll need a stamp option of 2450.

Handy Person from Oceanside, CA

Aug 19, 2020 4:43 pm

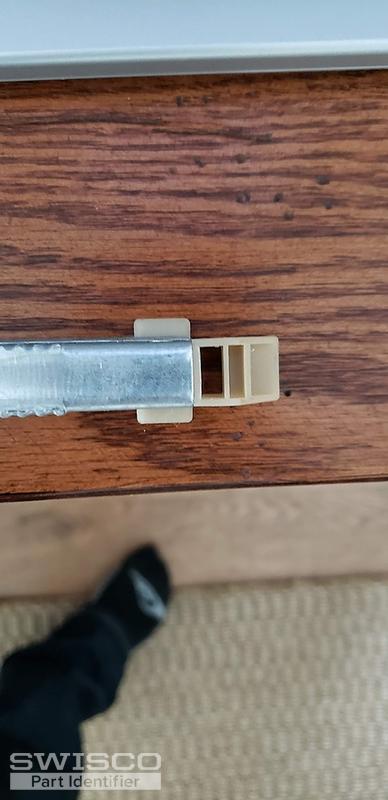

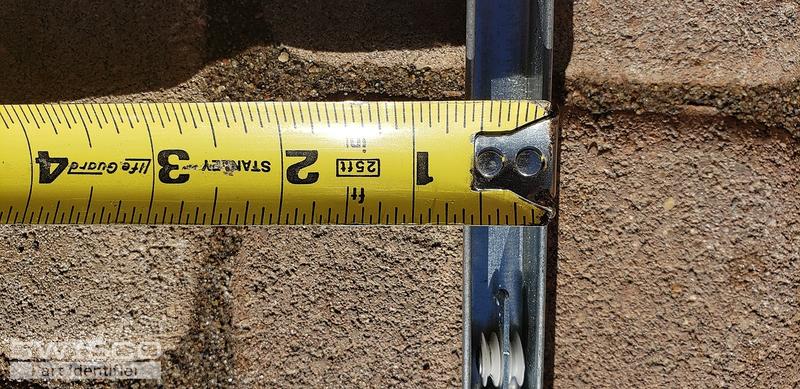

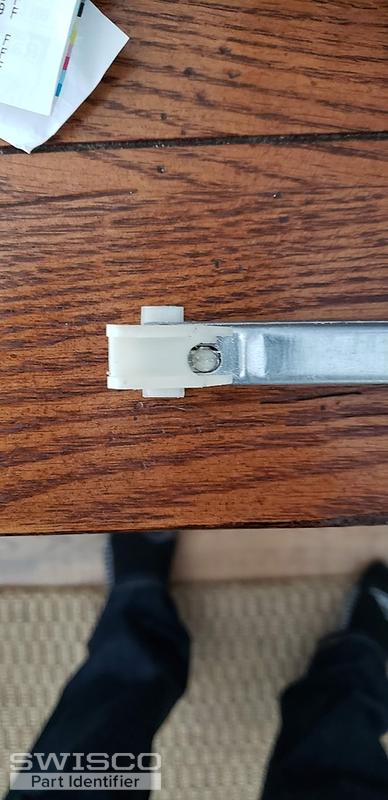

Hi Bob. Does this additional photo help? I looks like the depth is greater than 1" So I'm thinking I need the 1 3/32 S385-25 option.

Bob from SWISCO

Aug 20, 2020 8:27 am

I agree, the depth does look greater than 1". If it is at all, then the S385-25 is what you want.
