Window Balance Identifer

Question

Hello,

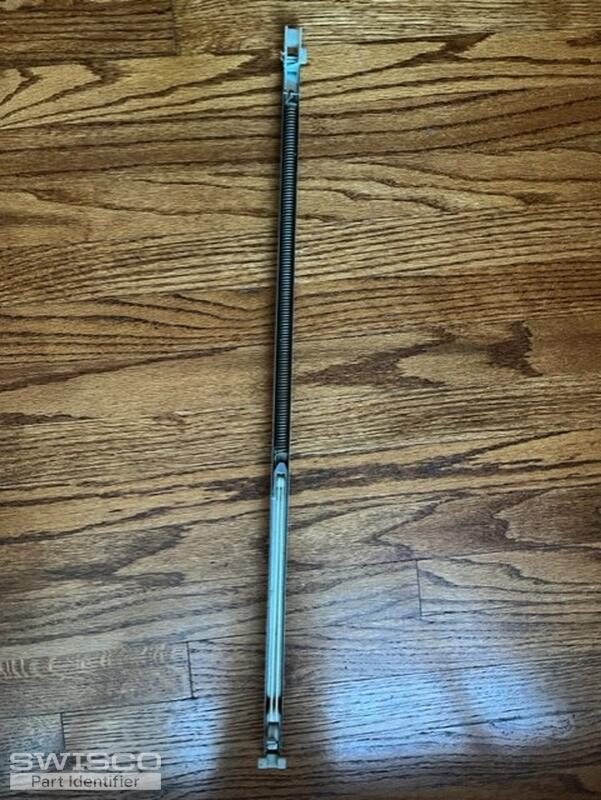

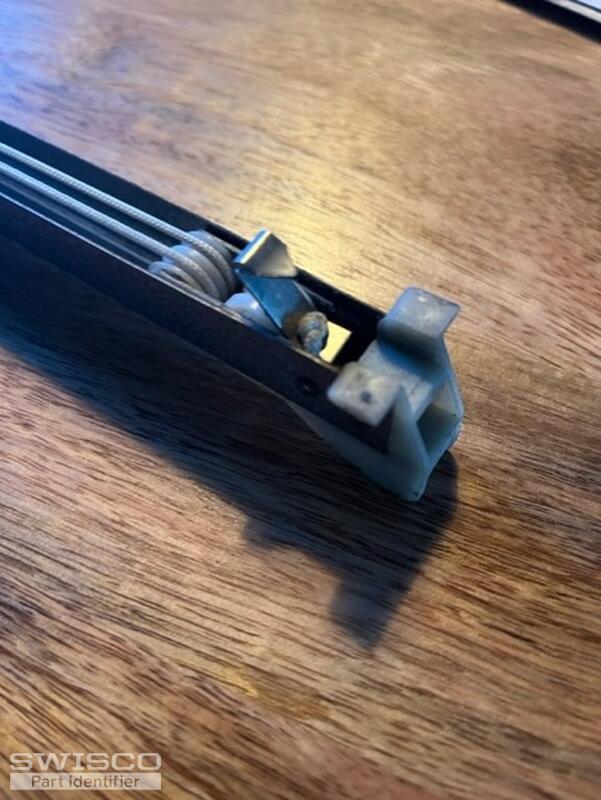

We have about 6 that need to be replaced. I am attaching photos as I am having trouble figuring out which ones they are. Also including the measurements:

2330 3si pl

24 inch

1/2inch

Thank you for your help!

Blair

Jasmine · Accepted Answer

Hi Blair,

Thanks for reaching out! Your channel balance reminds me of either the S380-24 with a 1" shoe depth or the S385-24 with a 1-3/32" shoe depth. To determine the series you have, you'll need to confirm the measurement for the depth of your bottom shoe.

You'll need to select the 2330 stamp option.

Comparison of the S380 and S385 balance shoes.
