Window Balance Identification

Quick Learner from Portland, OR
Trying to figure out which balance to purchase to replace this broken one. It measures 25" long and 1/2" wide. Code on the balance reads 24-4 BS5 CMC 69.
2 user uploaded images
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for your post! I'm confident we have the balances you need but I'll need to see a photo of the top attachment and a photo of the balance pulley in the center of the balance (where the spring and the string meet).

Unfortunately the stamp from the balance cannot identify the exact replacement you need. It can only tell us the weight range the balances should be able to hold to support the sash weight.

Once I have the requested information, I'll be able to provide you with any accurate recommendation for the replacements.

Quick Learner from Portland, OR

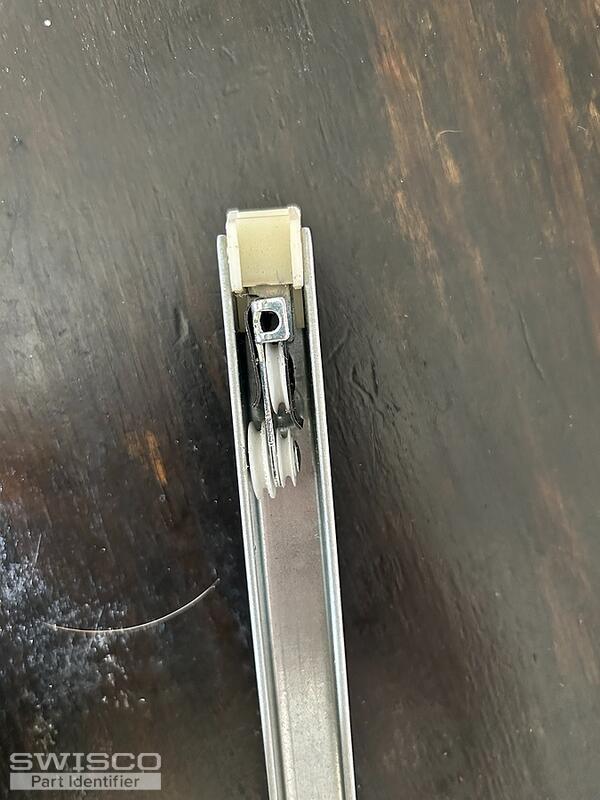

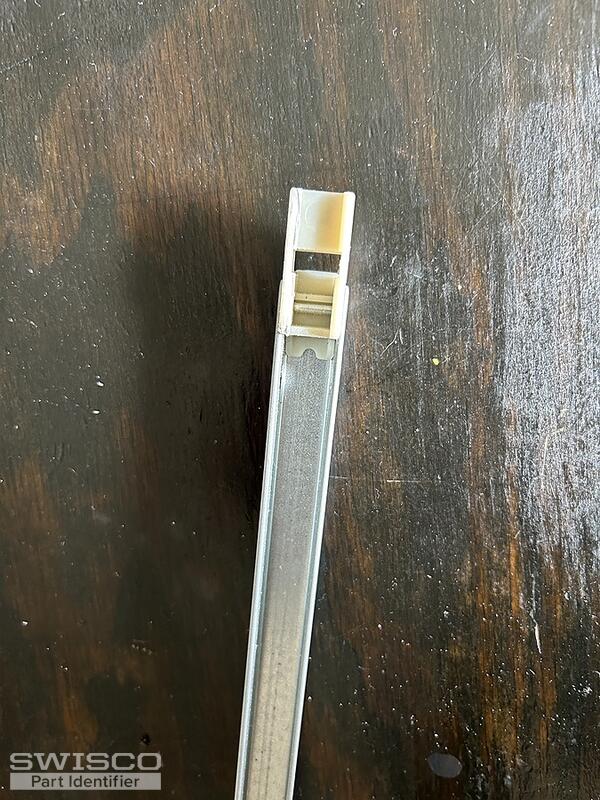

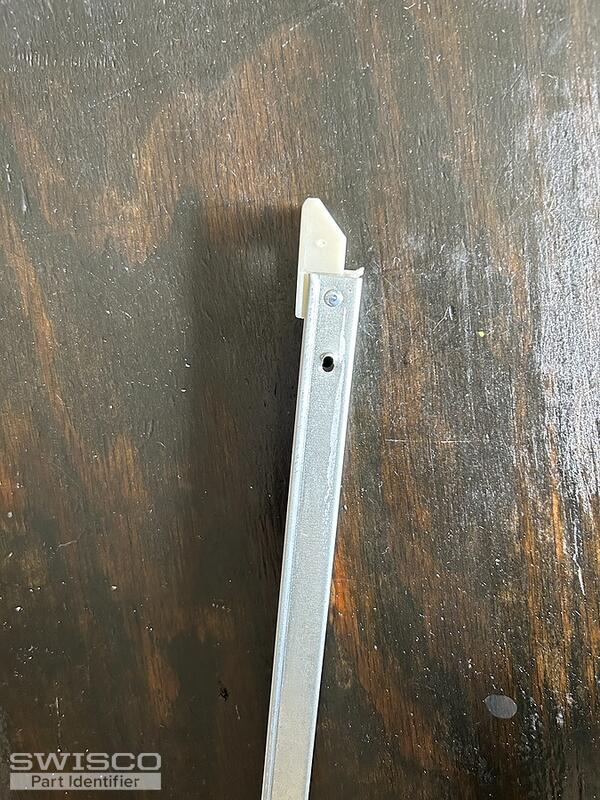

Hi there, thank you for your reply. Here are more photos. Hopefully this is what you need!
4 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Your balance can be replaced with either the S351-25 with a 1" shoe or the S390-25 with a 1-1/8". To confirm which of these is the best possible replacement, you'll need to confirm the depth of your shoe.

You can select the 2440 stamp option.

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
