Window Balance Inquiry

Quick Learner from Texas
Jan 8, 2025 12:29 pm

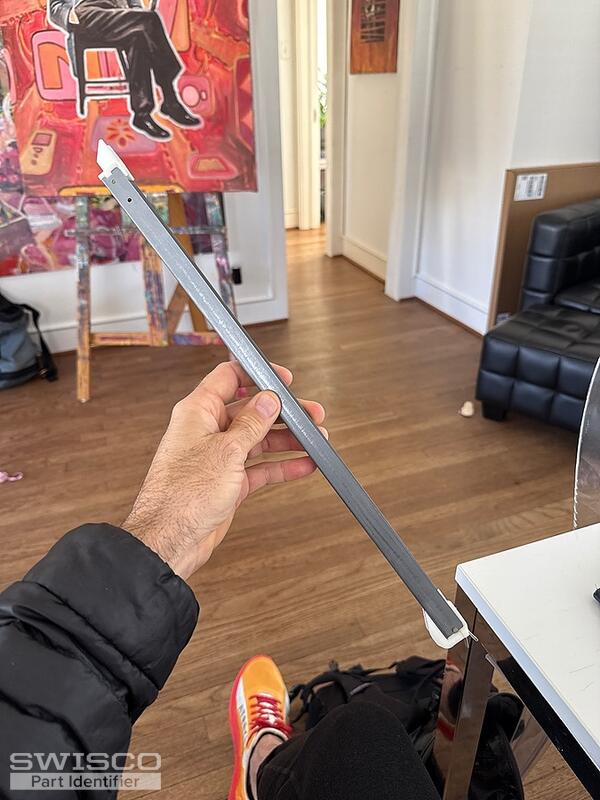

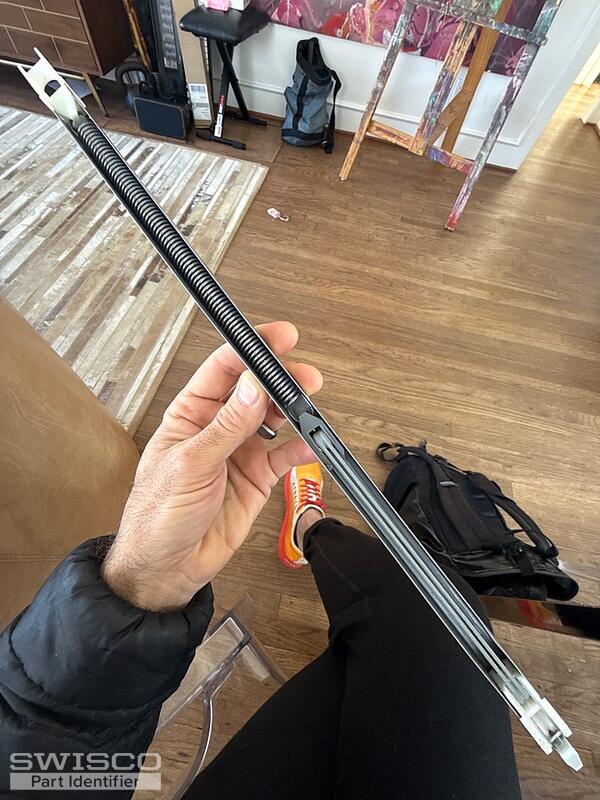

Hi there, I am replacing a few broken window balances and need assistance w ordering the proper balance. The markings are 1540 with and AX printed a bit behind it. It is a 16" balance (metal) not including the end attachments. It is a 1/2" channel and the bottom piece is 1" front to back. Thank you in advance. Cheers
5 user uploaded images
4 Replies

Casey from SWISCO
Jan 8, 2025 2:01 pm


Hello,
We can supply your replacement balances but it will need to be a custom order due to the length, extended travel pulley system and unique combination of end attachments. Before we get started, I'd recommend dopublt checking the length of the metal channel, which should measure 15-7/8" without the end fittings. If so, we'll just need to know the number of balances you need, with the minimum being two, to send over an order link and price quote. Thank you!

Quick Learner from Texas
Jan 8, 2025 2:49 pm
Hi there, Yes. It looks as though, after re-measurement, you are correct. The metal is 15 7/8" exactly. I will need two (2) slides to make this repair. Let me know if there is anything else you all need. I will order as soon as I receive the order link and quote.

Casey from SWISCO
Jan 8, 2025 3:34 pm


Great! We just sent over your order link. Take a look and let us know if you need anything else.
