Window Balance Replacement

Question

Hello,

I?m trying to find the right replacement balances for my windows. The windows say Gapco on them. They are aluminum sliding, they don?t tilt out at the bottom. Have to slide them up to tilt them off.

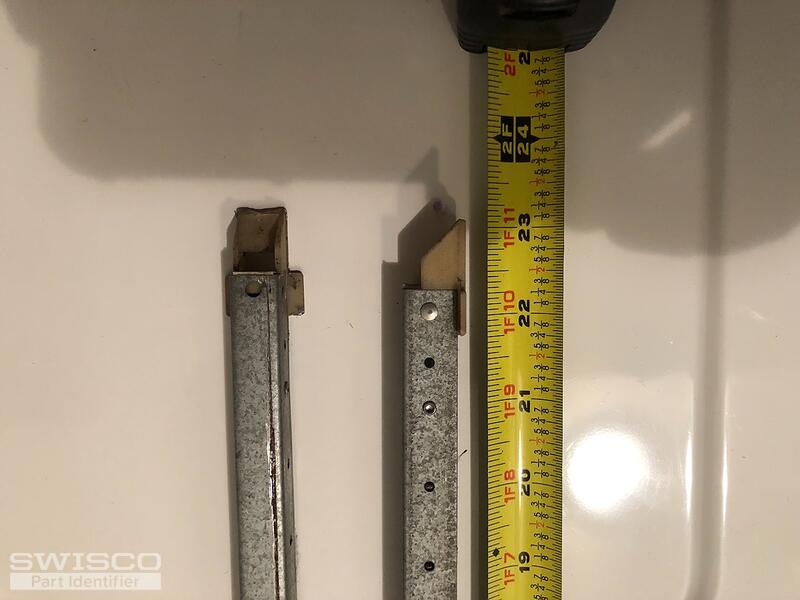

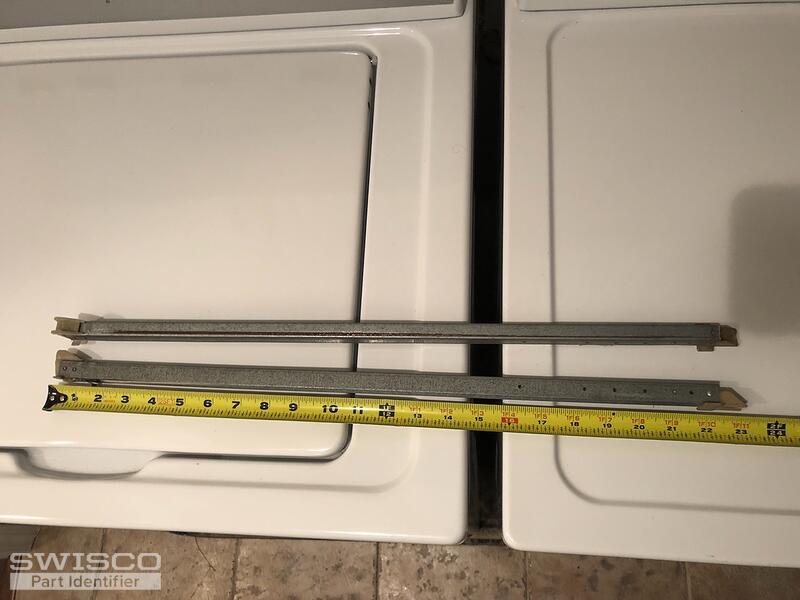

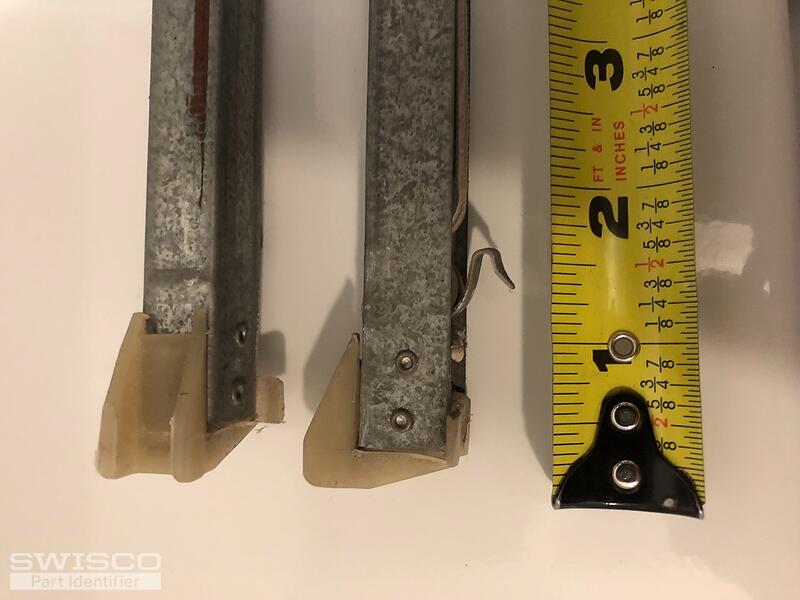

I?ve never bought these kind of parts before so not sure what else you need. Hopefully the pictures help. They seem to all be the same just different lengths. Please let me know if you need any other info to help me pick the right replacement part.

Thanks!
Tyler

Paul · Accepted Answer

Hi, Tyler. Looks like your Gapco window is using Series 385 side load balances (which come with 19-005 nylon tops and 1-3/32" deep 15-004 bottom shoes attached). Please compare.

Being that the metal channel is 22", you would order S385-22. You just need the code printed on the balance to complete the order once you verify all that.
