Window Balance Replacement #2740 & #2720

Start a new Discussion

Quick Learner from Visalia, CA

Sep 21, 2018 11:29 am

need replacements

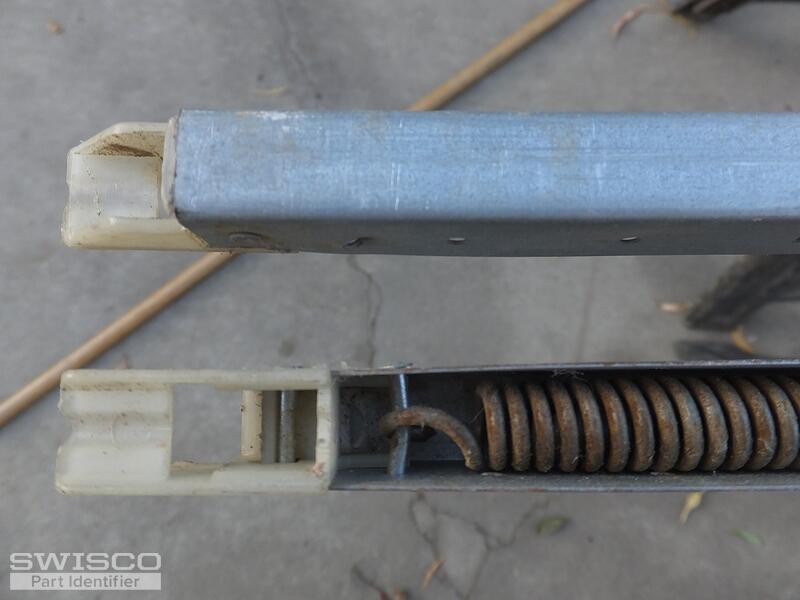

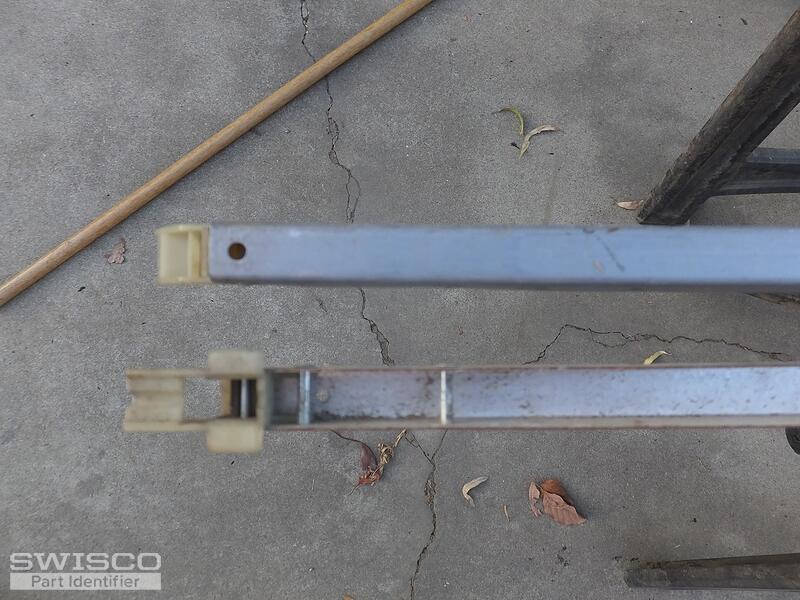

5 user uploaded images

4 Replies

Paul from SWISCO

Sep 21, 2018 1:17 pm

Hello,

We believe you can use our S390-28 channel balance with 19-002 top and 15-001 (1-1/8" depth) bottom balance fittings attached,even though we see wings on one of your balance tops. You'll also need a spring strength option of 2720 for a sash weighing 9-13 lbs. and two more with 2740 option for a sash weighing 19-26 lbs. Thank you!

Quick Learner from Visalia, CA

Apr 28, 2019 10:31 am

Need another channel balance...this is a smaller balance, same style, however, the number stamped on the side is 2330.

what would be the replace #.

Thank you

Bruce

Casey from SWISCO

Apr 29, 2019 7:47 am

Hi Bruce, welcome back. As long as the style is the same as your previous balance, you should be set with our S390-24 with option 2330. Just be sure to measure the metal length to confirm it's 24".
