Window Balance Replacement

A handy person from Oklahoma says:

March 5, 2021

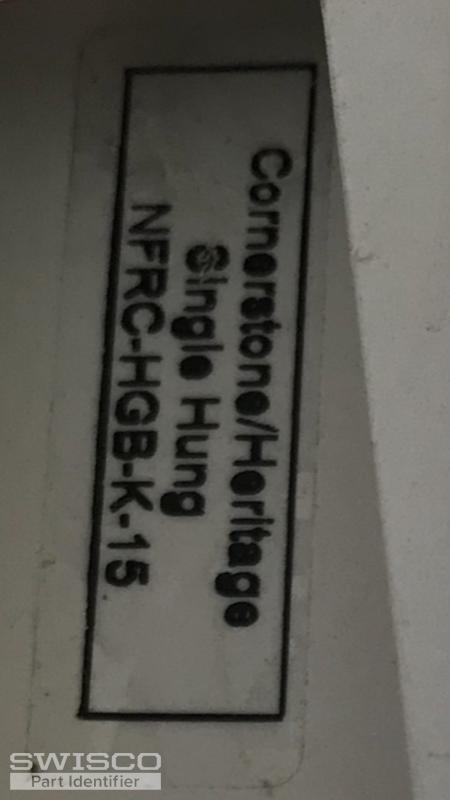

Need help finding a replacement window balance. The current balance is damaged beyond repair. According to the sticker on the window it is a Cornerstone/Heritage Single Hung NFRC-HGB-K-15 window. As you can see in the pictures provided the stamp on the metal portion of the balance reads: 32C HK5 CMC 5. Any help you can provide would be great.

Thanks.
Dale

Thumbnail of the uploaded file named image3.jpeg

Thumbnail of the uploaded file named image1.png

Thumbnail of the uploaded file named image2.jpeg

Thumbnail of the uploaded file named image0.png

Paul from SWISCO responded:

March 8, 2021

Greetings Dale. This balance system is pretty unique. We don't have anything exactly like it, but our S795-32 Tilt Channel Balance is our closest match. The channel is 32" long and counting the 1-1/4" T-Lock shoe that comes attached, it comes to a total 32-7/8" long. The stamp option you would choose is 32C. Look it over, and let us know if you think this could work for you.

32" Series 795 Channel Balance

S795-32

$14.52

Tilt Window Sash Pivot Pin, 3"

26-415

$1.97
