Quick Learner from San Jose, CA

Nov 4, 2024 11:30 am

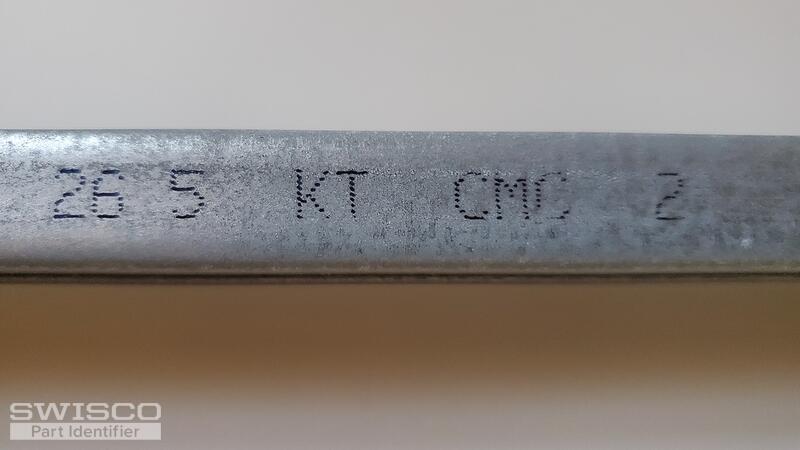

Metal Marking - 26 5 KT CMC 2
Metal strip length = 27" (without plastic ends)

Appreciate if you can provide the equivalent part number for the above.

Thanks!

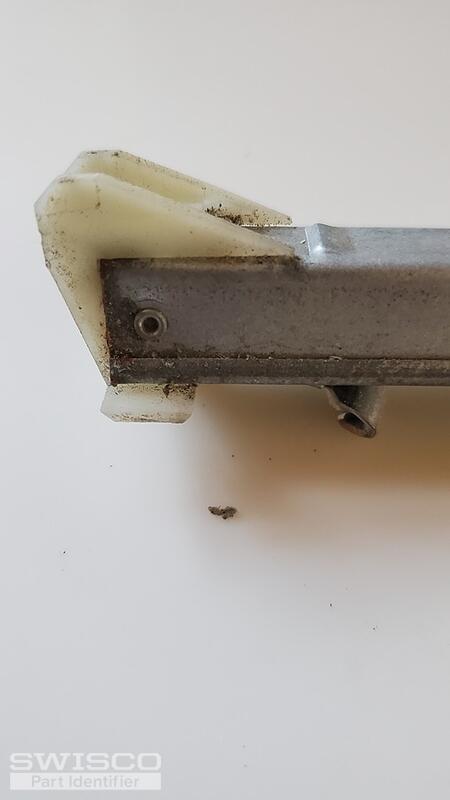

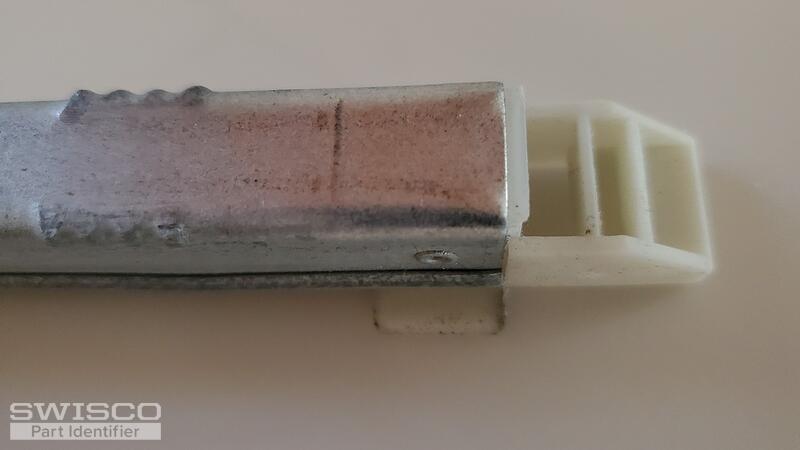

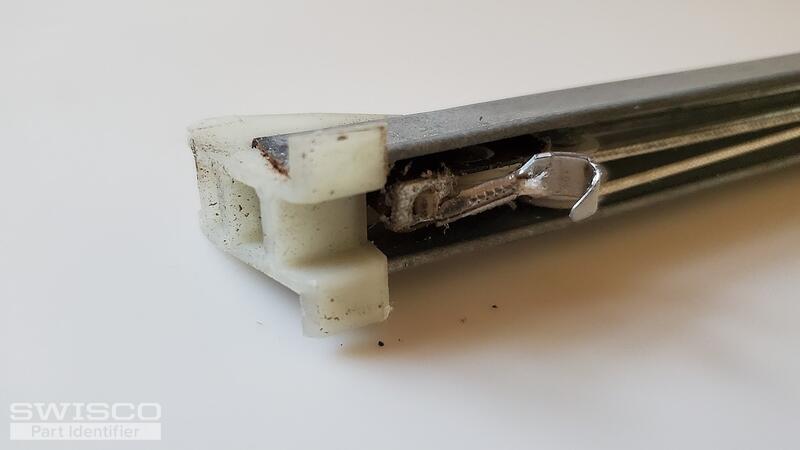

5 user uploaded images

6 Replies

Emily from SWISCO

Nov 6, 2024 2:55 pm

Hi there!

Thanks for reaching out to us. We're happy to help with this. Can you show us a photo of the inside of the metal channel where the innerspring connects to the pulley mechanism? That'd be located in the middle of the channel. Can you also measure the bottom shoe as shown below and tell us what you find?

Profile view of a winged balance attachment

Quick Learner from San Jose, CA

Nov 8, 2024 12:36 pm

Hi,

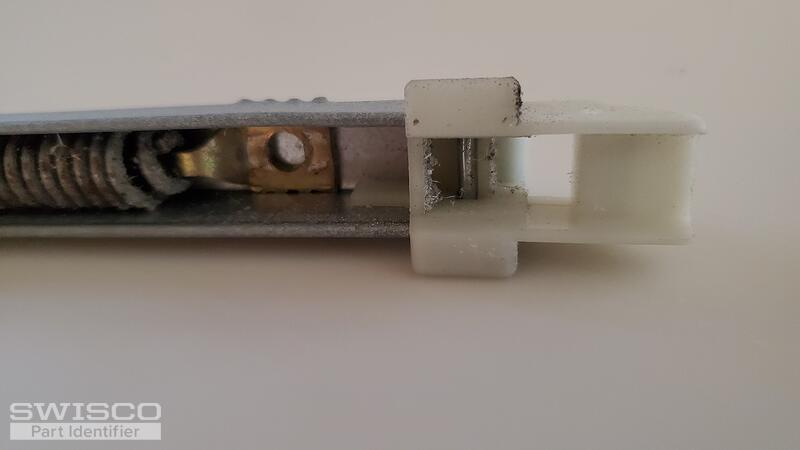

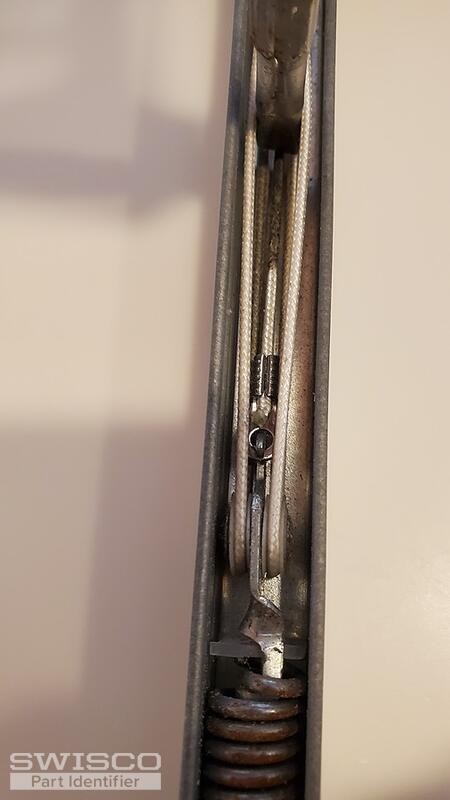

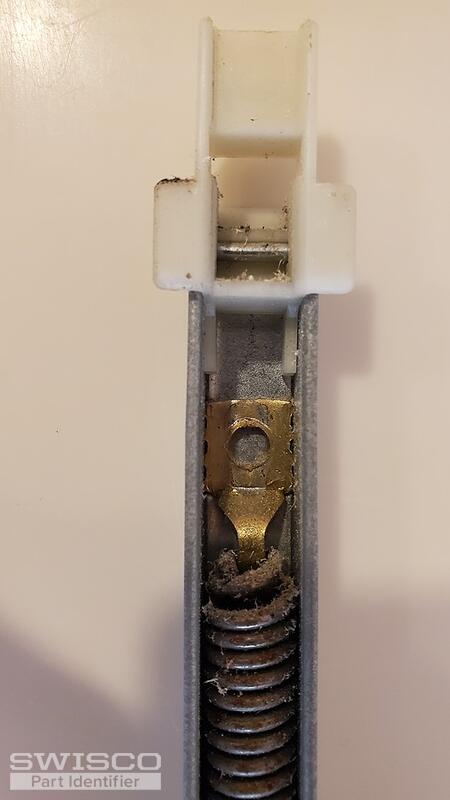

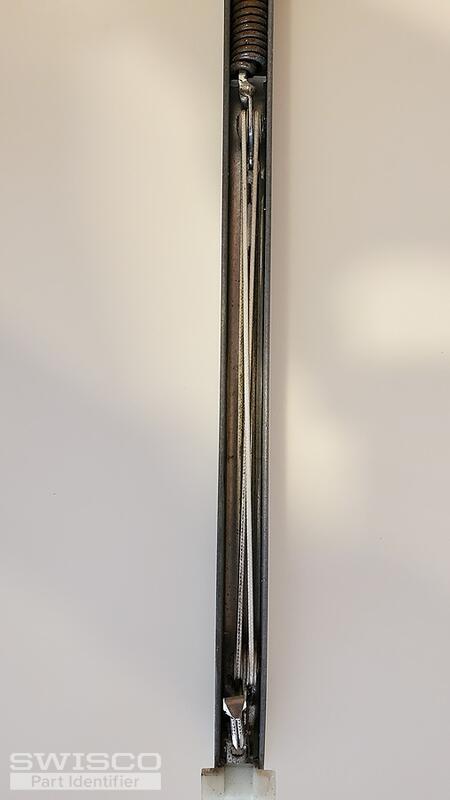

I added a picture of "innerspring connects to the pulley mechanism".

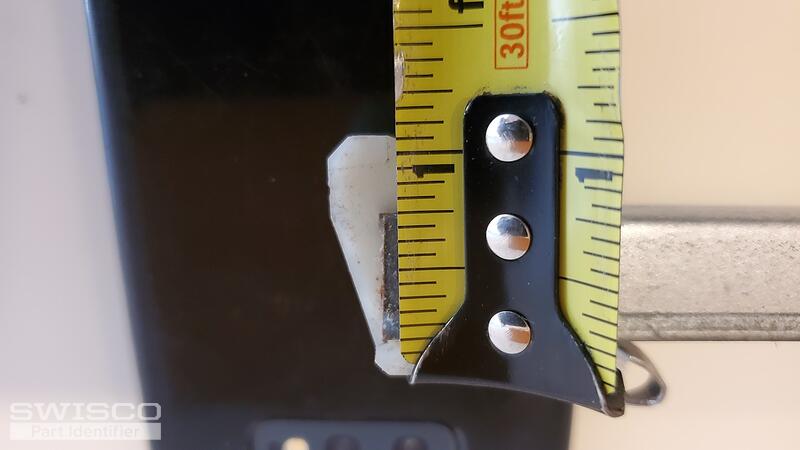

Bottom shoe depth is ~1 3/32" (picture attached).

Thanks for your help!

4 user uploaded images

Emily from SWISCO

Nov 8, 2024 1:09 pm

Thank you kindly! Based on these photos and since your shoe is 1-3/32" deep. I recommend you have a look at the S385-27. You can also select the 2650 stamp option for your replacements.

Let me know if you have any questions!

Comparison of the S380 and S385 balance shoes.

Quick Learner from San Jose, CA

Nov 8, 2024 5:58 pm

Thanks a lot!

Emily from SWISCO

Nov 11, 2024 8:12 am

No problem! Please let us know if you have any future hardware questions.
