Window Balance confirmation - Ends are a bit different

Home Owner from Jacksonville FL
Feb 8, 2018 12:50 pm

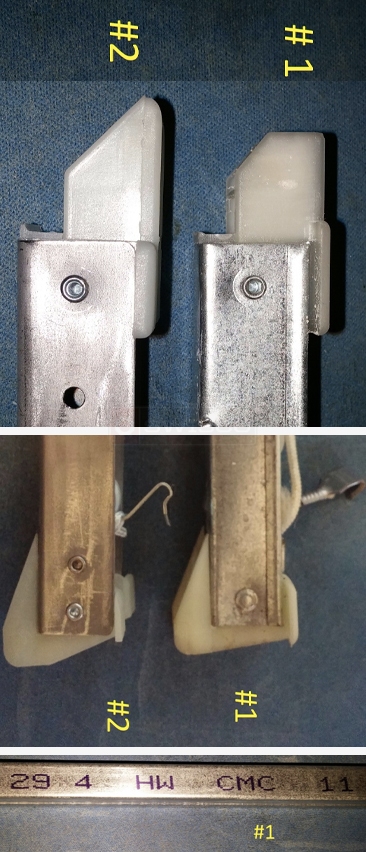

In the attached photos:
#1 = Original Balance
#2 = Replacement Balance received item S380-30 Option 2940

I ordered #2 in the photos and have not yet attempted to install the replacement balance but wanted to confirm if they should work. They look to be very similar and should work. I do not see any balances matching the ends of the Original (#1 in photos) exactly on the site.
Channel Balance
2 Replies
+ Add a Comment
Home Owner from Jacksonville FL
Feb 8, 2018 1:50 pm
I have now had the time to replace the balances on the window and all seems to be working just fine. The replacement balances do seem to be a bit heavier duty and stronger than the original balances, but the window does operate and remain open as expected.

Could you review the photos and just validate I have the correct spring strength? The window is 33W x 30H double pane. I do not have a scale to get the weight of the window.
Tom
Tom from SWISCO
Feb 13, 2018 10:42 am
SWISCO
EXPERT
29 4 is often correlated to SWISCO's 2940. If it holds the weight as well as the old balance did, you should be fine. If it doesn't, you may want to weigh the window. 2940 holds 23 to 28 pounds. Make sure that's what your window weighs.

As for the ends, as you noticed, I don't think they're different enough to cause a problem.
+ Add a Comment
