Window Balance for Milgard Window

Home Owner from Rocklin, CA
Do you have a balance that would work for a Milgard window? I've included a photo with a part number (32 4 JW CMC 7) If yes, what is the cost?
User submitted a photo of a window balance.
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert
Sure, I'm confident we can replace this. I can't tell what you have based on just this picture, though. Can you show me the top nylon attachment, as well? Also, can you measure the bottom nylon attachment? We will need to know its size before we can recommend a good match. Specifically, we need to know the "heel-to-toe" measurement. You'll find it easier to measure if you remove it from the window.
Home Owner from Rocklin, CA
I have included additional photos

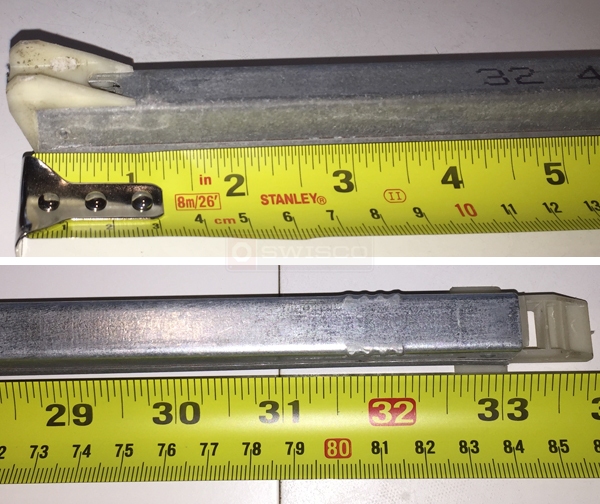

User submitted photos of a window balance.
Tom
Tom from SWISCO
SWISCO
Expert
Thanks! This is very helpful. I would start with our S385-33 channel balance. It's important to note that it comes with the 19-005 top and 15-004 bottom, so I would just make sure these match up to what you have now to confirm everything's the same.
