Window Balance replacement type

Handy Person from Delaware

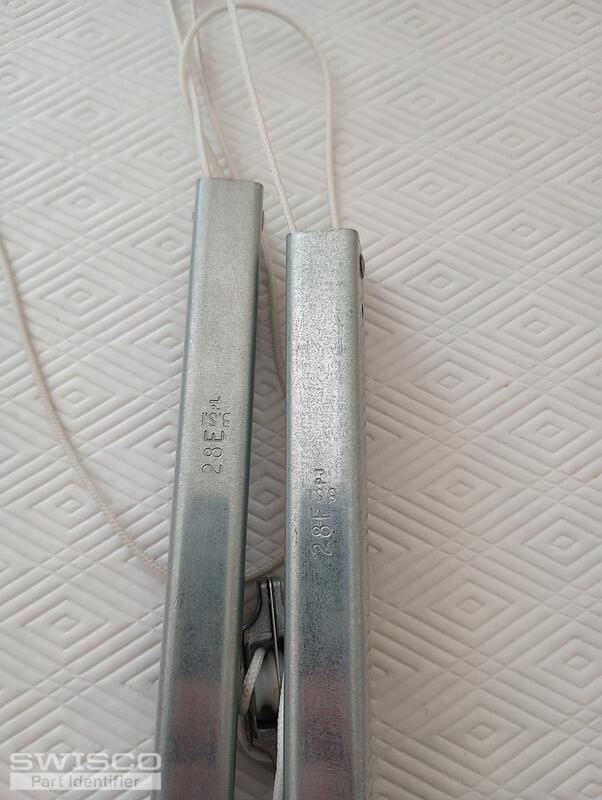

Looking for guidance on the correct balance replacement for the type I have in the pictures. I believe I need a S770 28E but my hanger type is a bit different. The picture shows a 28E and a 28F. These came from identical sashes. My sash weights 28.6lbs. Any assistance is appreciated.
4 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

I agree that your balances resemble the S770-28 except that yours appears to use a rivet at the top for an s-clip like our short 19-029 or long 19-030 s-clips to attach to. You would also need 28E strength options, which will support a window sash between 28-32 lbs. We can supply these balances but it will need to be a custom order. To get started, we'll need to confirm the number of balances that you need, with the minimum being two. Thank you!

Handy Person from De
I need to repair two windows so I need 4 balances. Thanks.
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. We just sent over an order link and price quote for the balances you requested. I would recommend confirming that your balance channel measures exactly 28" long before placing an order. Also, please note that the s-clips are not included in the order link but they can be added to your cart to purchase with your balances if you need those as well. Take a look and let us know if you need anything else. Thank you!
