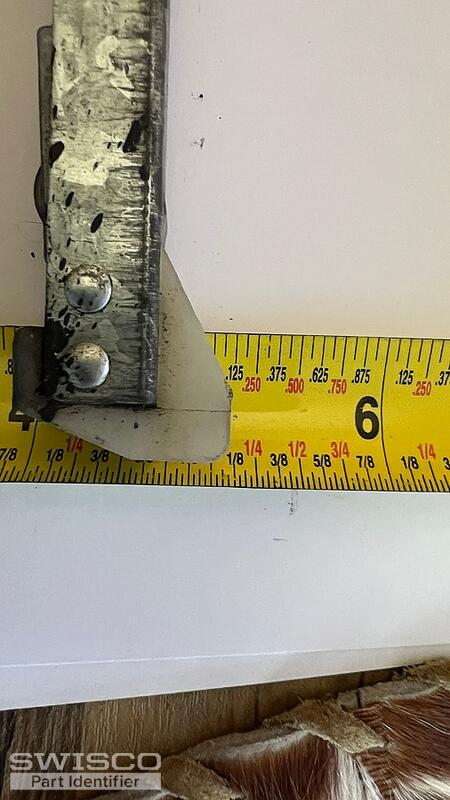

Need help identifying the ends. Winged top looks like a 19-005. Non-winged shoe looks like it could be 15-001 or 15-002. Measures about 1/16" over 1". What part do you suggest?
I'm thinking a S395-28 with option 2740 would fit, but concerned the 1-1/8" deep shoe might be an issue. Also is 2740 the correct option?

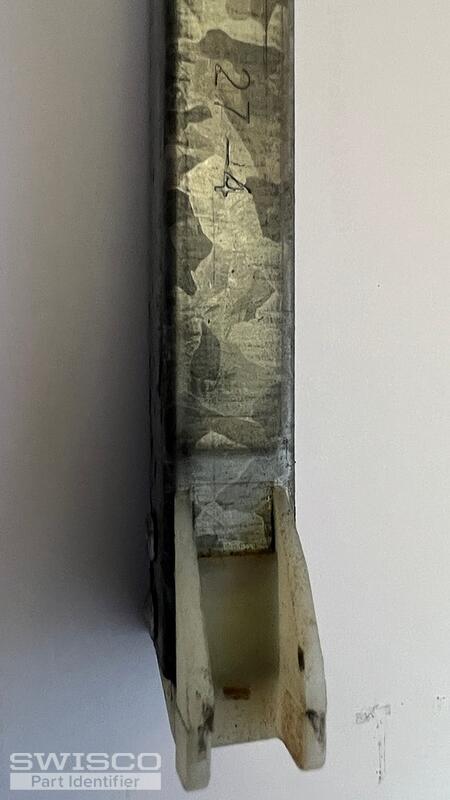

Window Balance stamped 27-4 and is 9/16" wide
Handy Person from Fort Worth, TX
Apr 19, 2025 1:47 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Apr 22, 2025 3:47 pm
Hello,
I agree that your balance resembles the S395-28 with 2740 strength options based on your stamp. The bottom fitting can wear down a bit over time with regular use. You should be good to go as long as the shoe measures over 1" deep but you could also check the shoe depth of another balance to be safe. Thanks for posting!
Close up view of the S395 balance top.
Close up view of the S395 balance shoe.
