Home Owner from Colorado

Aug 14, 2017 12:49 pm

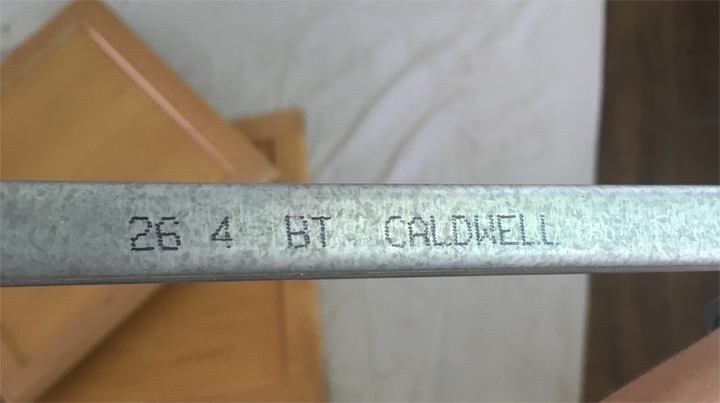

I'm looking for a replacement for one of my window balancers. This is the stamp included on the balancer 26 4 BT Caldwell. Hoping to get a specific part to replace it since it isn't obvious how to replace it.

Thanks!

4 Replies

Tom from SWISCO

Aug 15, 2017 2:19 pm

Welcome to SWISCO.com. Channel balance are identified based on the size and shape of the plastic attachments. Can you send photos showing both ends of your balance?

Landlord from Denver, CO

Aug 23, 2017 4:06 pm

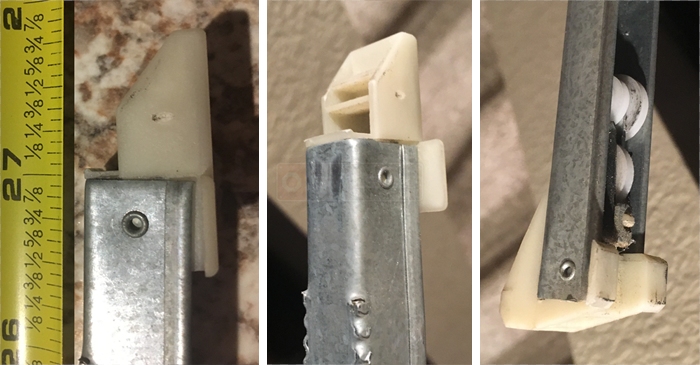

Here are a few pictures showing the attachments and the length of the balancer.

Thanks for your help!

Tom from SWISCO

Aug 25, 2017 10:43 am

Your 27" 2640-option balance belongs to either our Series 380 or Series 385. To tell which, you need to measure the bottom shoe. The only difference between the two Series is the measurement shown below. If you have the 1-3/32" shoe in the picture, you need Series 385. For a 1" shoe, pick Series 380. Either way, you need a 27" balance and an option of 2640.

Comparison of the S378, S380 and S385 balance shoes.
