Window Balancer Kinro

A quick learner from NM says:

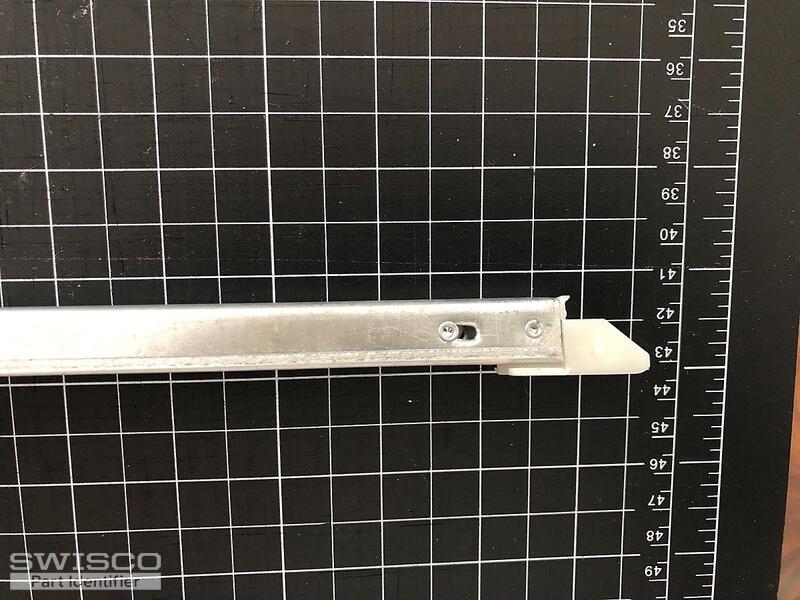

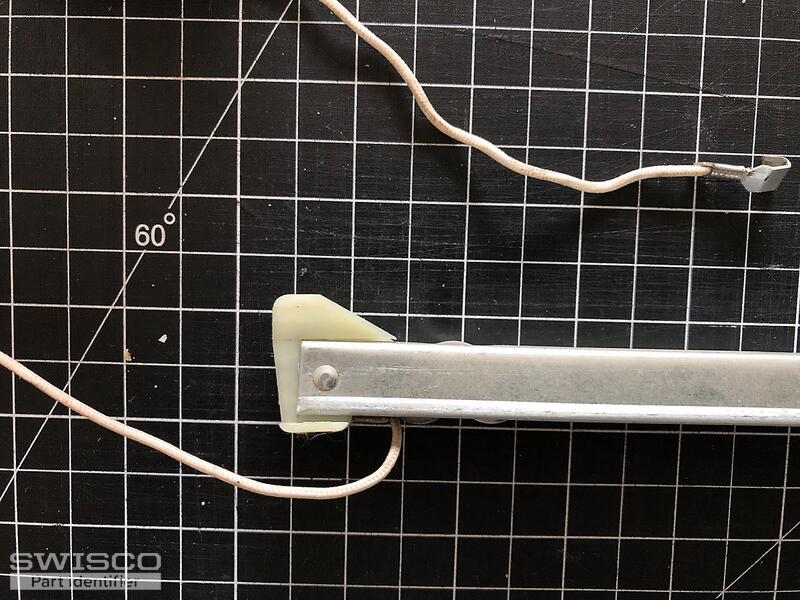

Wanting to make sure I purchase the correct part. 27" long metal piece. Attached are photos.
Thumbnail of the uploaded file named 5B4777CB-042A-4536-9A87-B79C8335952F.jpeg
Thumbnail of the uploaded file named 3028D773-5D29-4A88-91E0-C3798437EB15.jpeg
Thumbnail of the uploaded file named 50718C4F-9589-4C7C-8CE4-855BEAD1B2F1.jpeg
Thumbnail of the uploaded file named B39822ED-8FB3-429F-AD95-C695CE5E11B6.jpeg
Thumbnail of the uploaded file named 3FB5BB84-6A6B-4293-9389-59222FCF989B.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2640 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.


1
A quick learner from NM says:
The pulleys look different from what I have. Does that make a difference?
Profile picture of Casey
Casey from SWISCO responded:

Your pulley is broken, which is why it looks different. The end attachments and metal pulley clip are what we look at when recommending replacement balances.
