Window Balances

Home Owner from Colorado

Apr 27, 2024 10:04 am

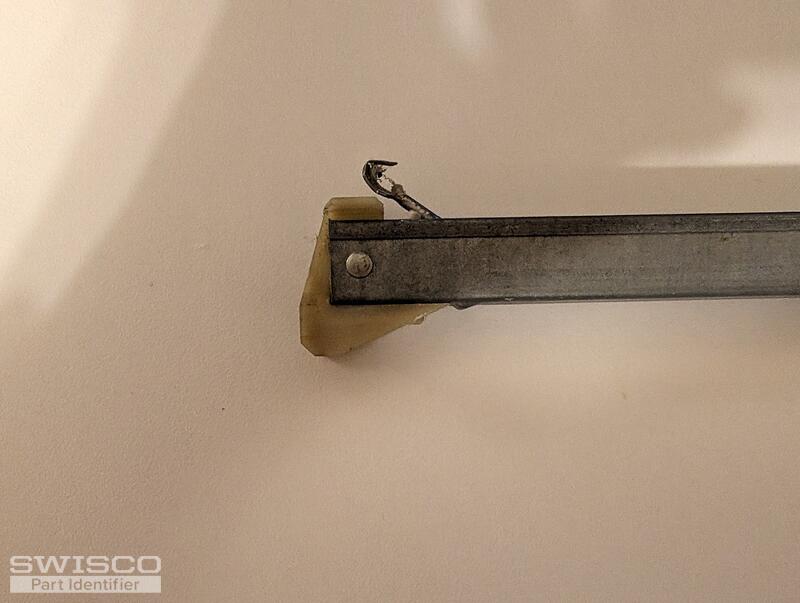

Hello, We are looking to replace our window balances. Our windows do not tilt outwards, they just move up and down. The marking on them says Caldwell 32-5-GS I believe. The metal part measures 33 inches and the depth is just over a half inch.

4 user uploaded images

4 Replies

+ Add a Comment

Tom from SWISCO

Apr 29, 2024 11:59 am

EXPERT

Thanks for your photos. Based on what I see here, you have either our S380-27 or S385-27, depending on the depth of the bottom shoe. That's the only difference between them. I recommend measuring your shoe and referring to our dimensions to confirm the best match.

Comparison of the S380 and S385 balance shoes.

Home Owner from Colorado

May 1, 2024 3:24 pm

great its the S385!

Home Owner from Colorado

May 1, 2024 3:37 pm

also, what would be the corresponding weight I should select for this? 3210,3220 3230 etc? Can you also recommend the corresponding sash guide for these balances? We will need a few of those as well.

Tom from SWISCO

May 1, 2024 3:52 pm

EXPERT

Great, I'm glad it's a match! As for option, you can use your old stamp as a reference. In your case, 32-5 matches our 3250 option for the S385-33. You can always weigh your sash on a scale to verify that this is correct.
