Window Balances

A quick learner from U.S.A. says:

September 22, 2020

These are for Republic Windows out of Chicago, IL.
It's a tilt window, plain channel and looks very similar to your 770 series except at the top.
Instead of the round plastic like wheel my window balance has a clip(see photo attached) it also at the top has a pin for the spring to attach to (see photo attached).
The other photo attached shows the # on the channel SBI 32D(?)

Thumbnail of the uploaded file named channel balance 1.JPG

Thumbnail of the uploaded file named channel balance .JPG

Thumbnail of the uploaded file named channel balance 2.JPG

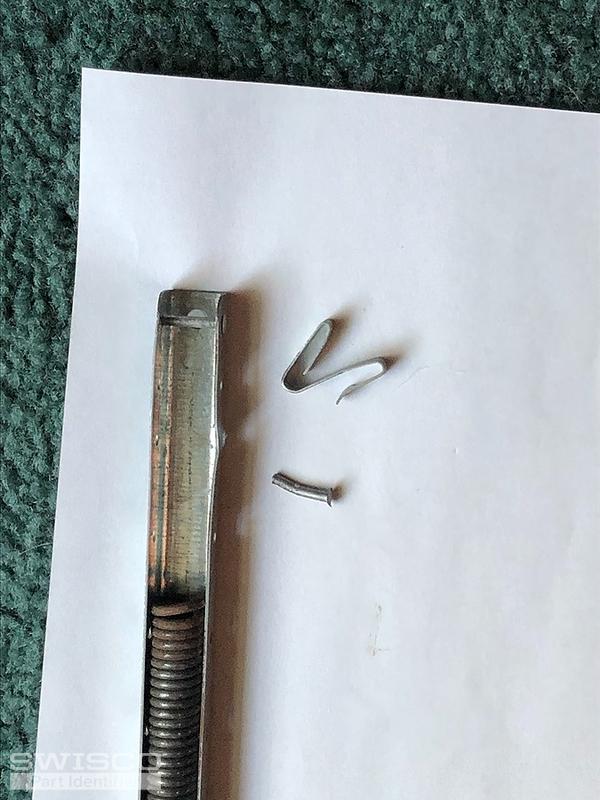

Thumbnail of the uploaded file named channel balance 3.JPG

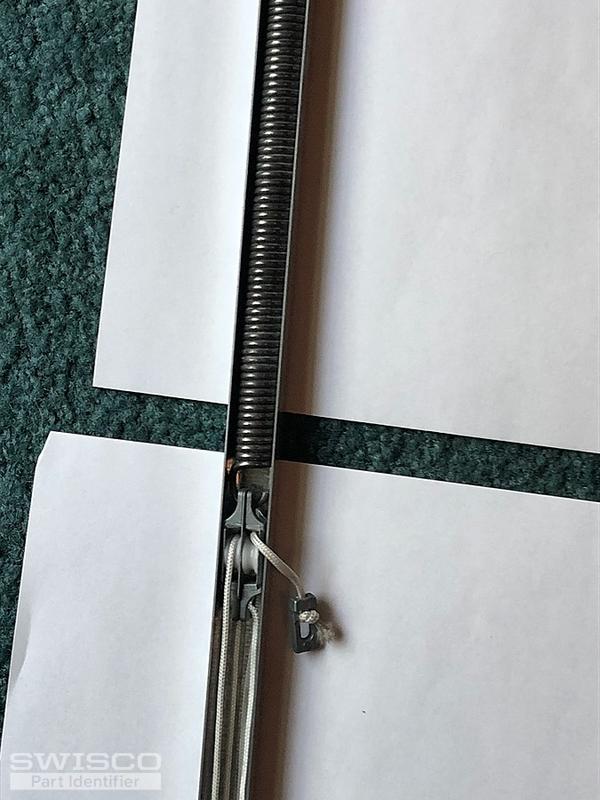

Thumbnail of the uploaded file named channel balance 4.JPG

Bob from SWISCO responded:

September 25, 2020

Thanks for posting. I agree, this looks like an S770-32 with a stamp option of 32D--but with a Rivet in the Top Hole, so that it can connect to the window jamb using an S-Clip like the 19-029 or 19-030. We'd be happy to make Series 770 balances for you with a rivet installed, via a custom order. I just shot you an email with a custom link to order a pair of such balances. if you need a different amount, just let me know. Note that the S-Clips are sold separately.
