Window Balances - Stamp 2730

Question

Good Afternoon,
I am looking to order multiple sets of window balances. They have a stamp 2730 is all I can make out on it. It's 5/8" diameter, but I can't figure out what series it is?
https://www.swisco.com/cl/Non-Tilt-Window-5_8-inch-Diameter-Tube-Balances

I am guessing I need 2 per window, and need to replace them all on 4 windows.

Correction: It's a channel balance NOT a Tube Balance. Its 1/2" Wide Channel Balance.

https://www.swisco.com/cl/1_2-inch-Wide-Channel-Balances

It's one of these at the link, but the only engraved stamp I can find is 2730 BS

The metal portion is 28" long
This is a NON tilt window
Stamp 2730
It looks barely wider than 1/2"

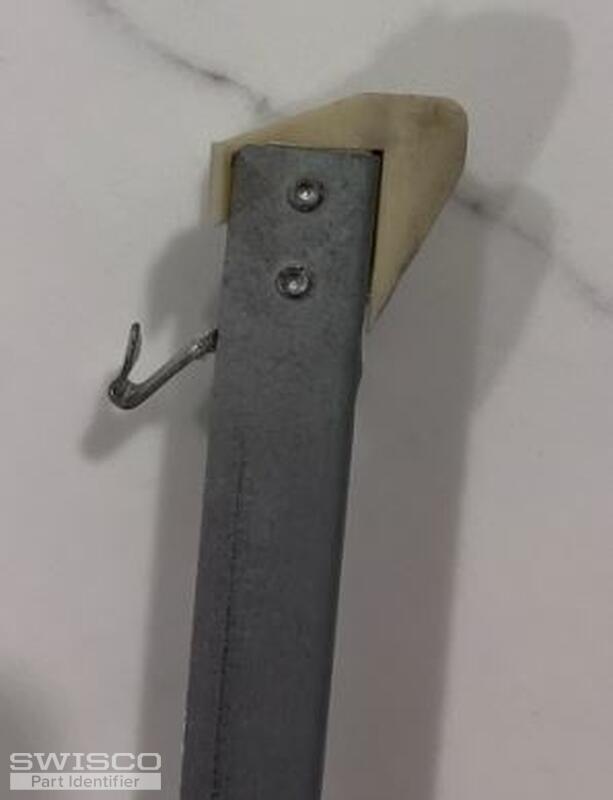

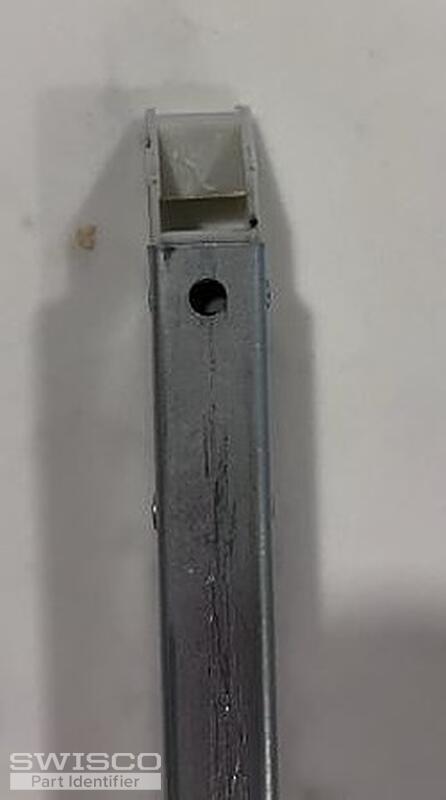

Top fitting does NOT have wings

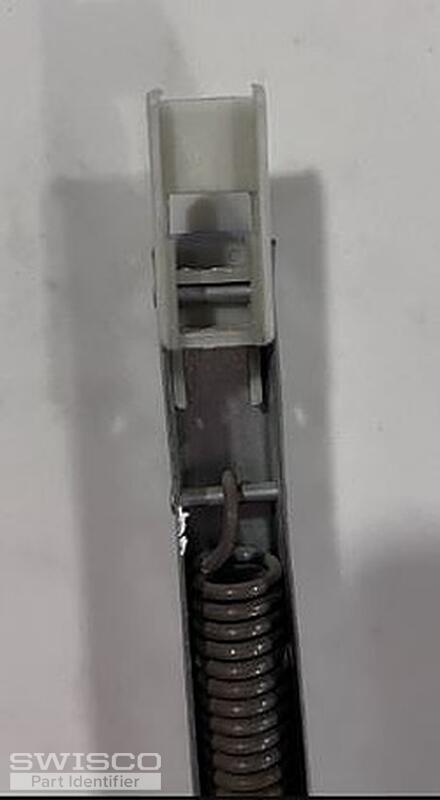

Bottom fitting DOES have wings
Depth of bottom fitting 1"

Jasmine · Accepted Answer

Hey there,

Thanks for reaching out! Your channel balances appear to be the Series 350 Channel Balance assembled with a wingless top guide and a winged bottom shoe. Although, I would be sure to double check the depth of the bottom shoe. The shoe that comes assembled on this balance has a 1-3/32" shoe depth.

If your shoe is truly 1", please let me know as this will need to be a custom assembly. I would also need to know the exact number of balances you intend to purchase; there's an order minimum of (2) per custom balance.

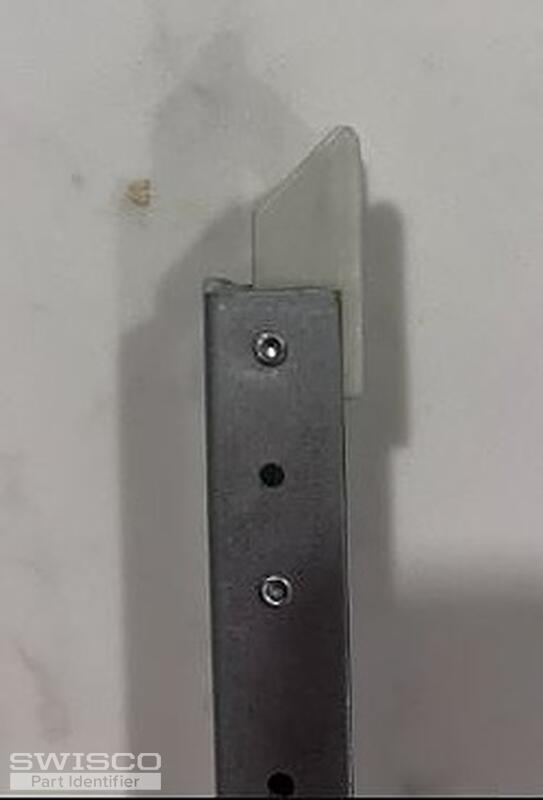

Close up view of the S350 balance shoe.
