Window Balancw

Handy Person from Oahu

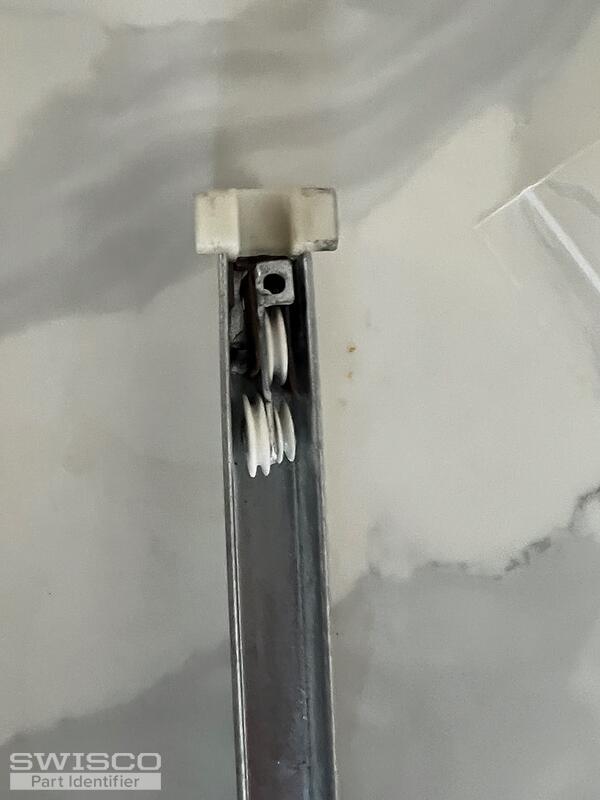

Looking to replace this balance.
1 user uploaded image
4 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for writing in! I'm certain we can provide a recommendation for this window balance. Although, I'll need to see more details from them to identify the correct replacements.

To start, I'll need to see the top and bottom attachments from the balance. I'll also need to see a photo of the bracket connecting the spring and the string (pulley system) on the spring side of the channel. Take a look at the video tutorials below for instructions on removing/installing them.

The stamp from the balance helps to determine the weight range a balance may be able to support; unfortunately, it cannot be used to identify the series.

Please feel free to reach out with any questions.

Handy Person from Oahu
Here are a couple of more shots. Hopefully they will preovide you with  the info you need.  The spring had origially fallen out of the balance. I pushed it back in for the picture.
3 user uploaded images
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Thanks for the additional photos. Your balances can be replaced with either the S380-34 or the S385-34. You'll need to measure the depth of the shoe to confirm the series you need.

You'll likely need the 3330 stamp option to replace your 33 3 stamp. Although, you may want to double check that the sash weighs between 18 to 23lbs.

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
