Window Block and tackle balance (29-9 GR, 30inch)

Question

Hi,

Please help me identify this part number and details(for a single replacement). If you can provide all the details to fill out for this part, along a link to purchase I'd appreciate this.

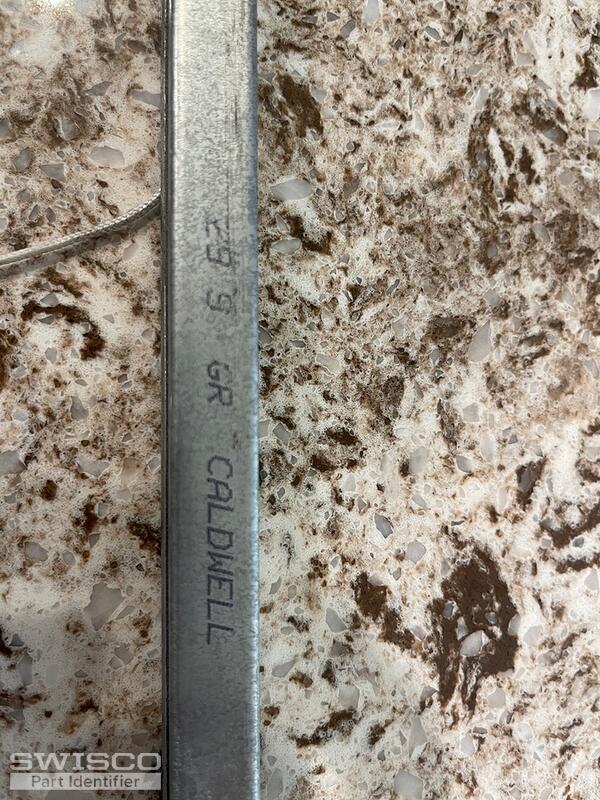

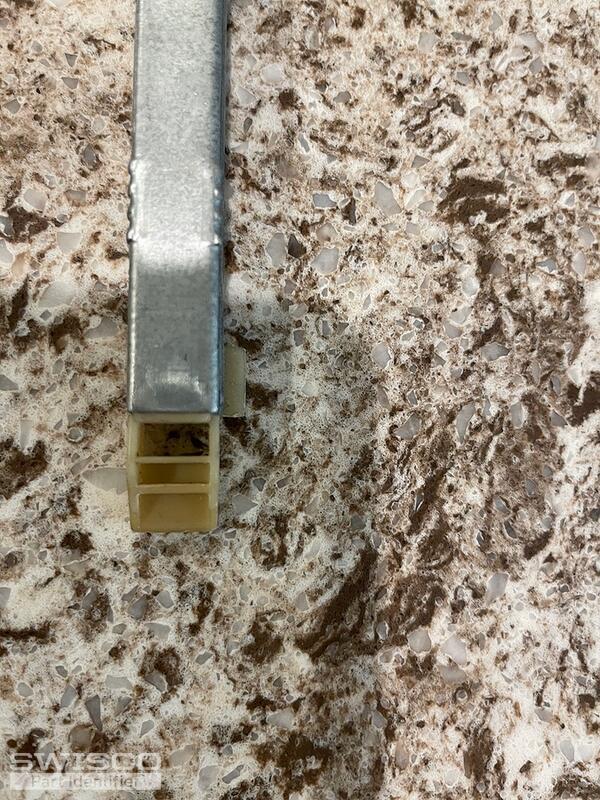

I'm not certain, but the The top seems to be a 15P142, and the bottom 15P104.

Thanks,

Vince

Jasmine · Accepted Answer

Thanks for posting! It looks like you have either the S380-30 with a 1" shoe or the S385-30 with a 1-3/32" shoe. To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. Let me know if it does not match either measurement.

Comparison of the S378, S380 and S385 balance shoes.

To select the correct stamp option, you'll need to obtain the exact weight of the sash. Once you have the window weight, you'll be able to choose your stamp using the chart shown below the product description of the balance you need. Just click on the link above for your respective balance and it will take you directly to the page on the website.
