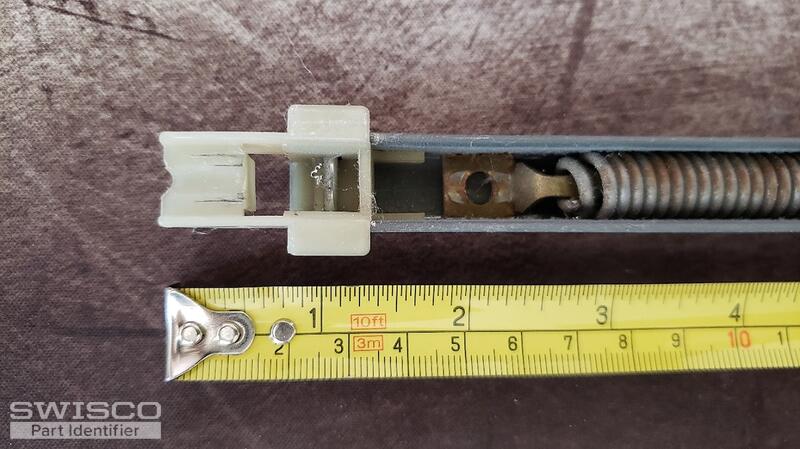

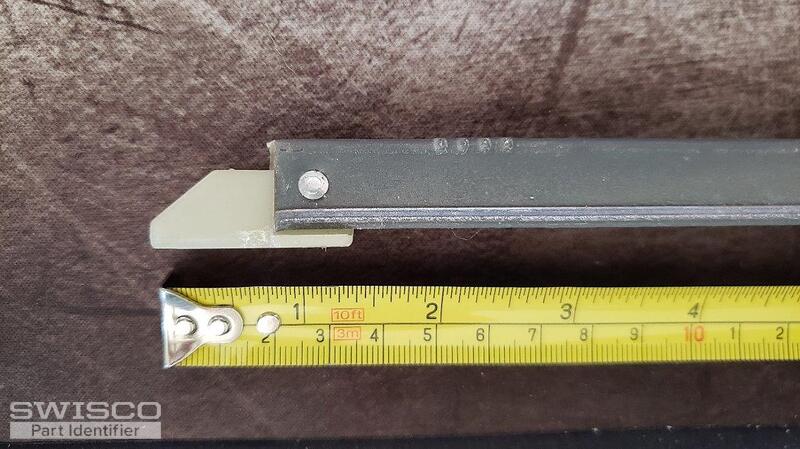

I would like to know what replacement part is needed that matches this window channel balance. The only markings are the "27 4 DN CALDWELL".
The metal section from the plastic end to the other seems to be 27in long.
Window Channel
Quick Learner from San Diego
Jun 13, 2021 3:21 pm
5 user uploaded images
3 Replies
Quick Learner from San Diego
Jun 13, 2021 3:23 pm
Width of metal is 1/2 in.
Emily from SWISCO
Jun 16, 2021 9:42 am
Hi there!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2740.
When measuring your balance, be sure to only measure the metal channel. Your stamp is 2740 which indicates a metal channel length of 28".
If you have any further questions just let us know.
Comparison of the S378, S380 and S385 balance shoes.
