Window Channel Balance

A home owner from California says:
March 12, 2021
Hope you can see the stamp on these. Our windows weight from 18 pounds to around 30 pounds. They're all the same length but different widths. Not quite sure what to get. Thanks.
Thumbnail of the uploaded file named 9740D9C6-A90F-4D87-8E38-3868ACDF68DE.jpeg
Thumbnail of the uploaded file named 04083A0A-5810-4F6C-9F45-09AB43085303.jpeg
Thumbnail of the uploaded file named 3C2AF756-FE25-4831-B532-7247138159CA.jpeg
A home owner from California says:
March 12, 2021
Not quite sure what parts to get. I hope you can see the details on the stamp. Our windows range in weight from 18 pounds to around 30 pounds. They are all the same length but different words

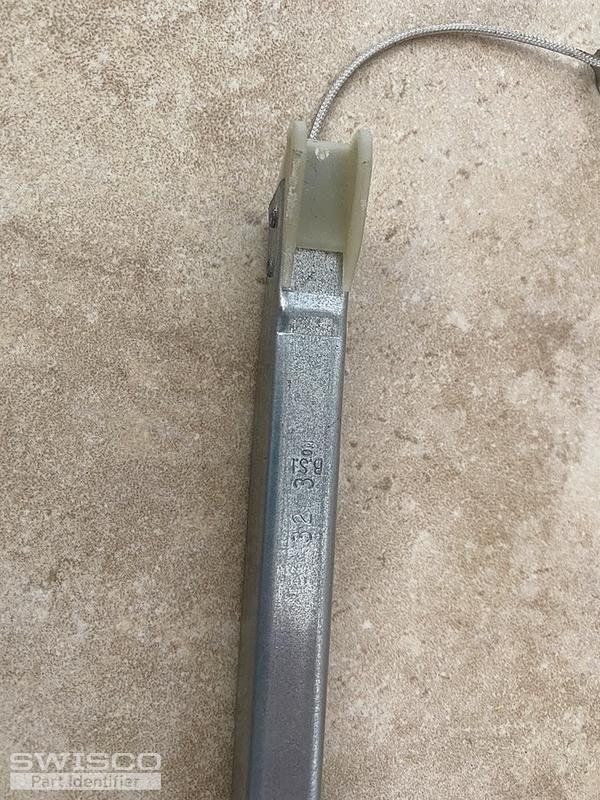

Thumbnail of the uploaded file named AC309C23-634A-4734-A799-8DD9C530A7C5.jpeg

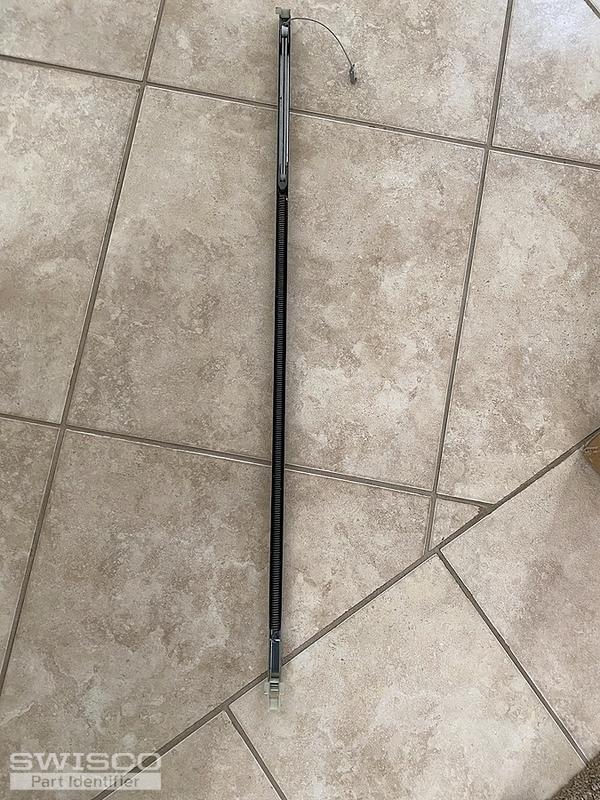

Thumbnail of the uploaded file named 834EBEB3-4944-4511-94CB-9BC2DF492051.jpeg

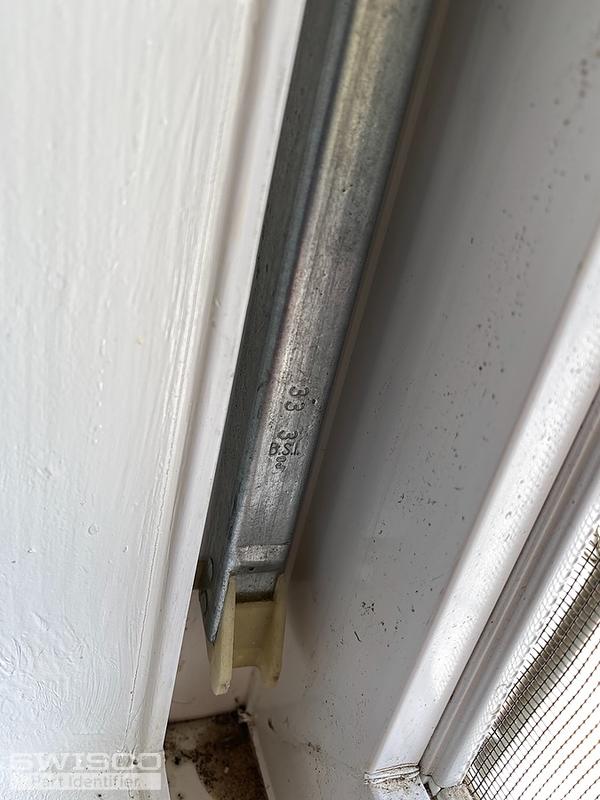

Thumbnail of the uploaded file named 9AB50599-69CF-410F-BE0F-04D6AA006CD8.jpeg

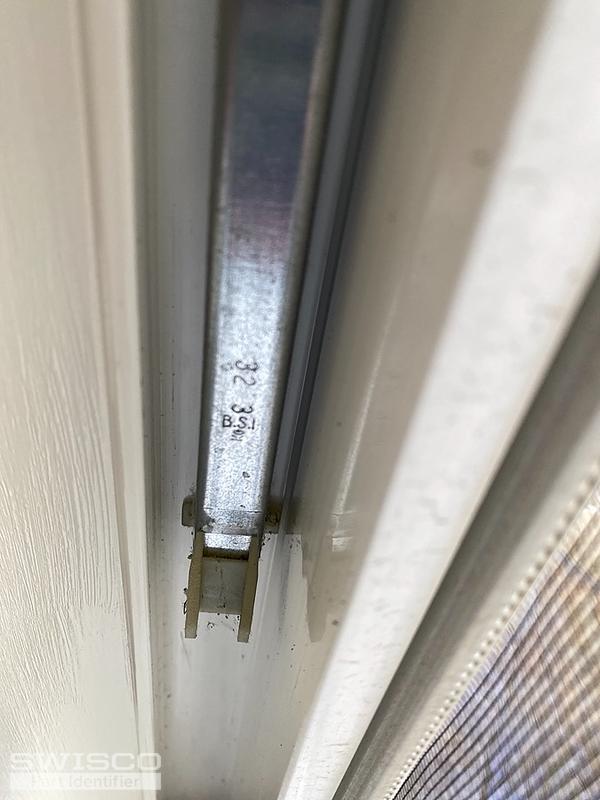

Thumbnail of the uploaded file named B5CA3C75-83AF-4AFE-B44F-CCF1FA4DFB08.jpeg
Profile picture of Casey
Casey from SWISCO responded:
March 15, 2021

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3230 and 3330 for your respective windows based on the stamps shown in your photos.

Thank you and let us know if you have any other questions or concerns.



Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
34" Series 380 Channel Balance
34" Series 380 Channel Balance
S380-34
$11.73
34" Series 385 Channel Balance
34" Series 385 Channel Balance
S385-34
$11.73
33" Series 380 Channel Balance
33" Series 380 Channel Balance
S380-33
$11.52
33" Series 385 Channel Balance
33" Series 385 Channel Balance
S385-33
$11.52
