Window Channel Balance 26-3

A quick learner from Chino, California says:
August 1, 2021

Channel Balance Length without top and bottom fittings: 27"

Channel Balance width: 9/16"

Bottom Depth: 1-3/32"

Top Depth: 11/16"

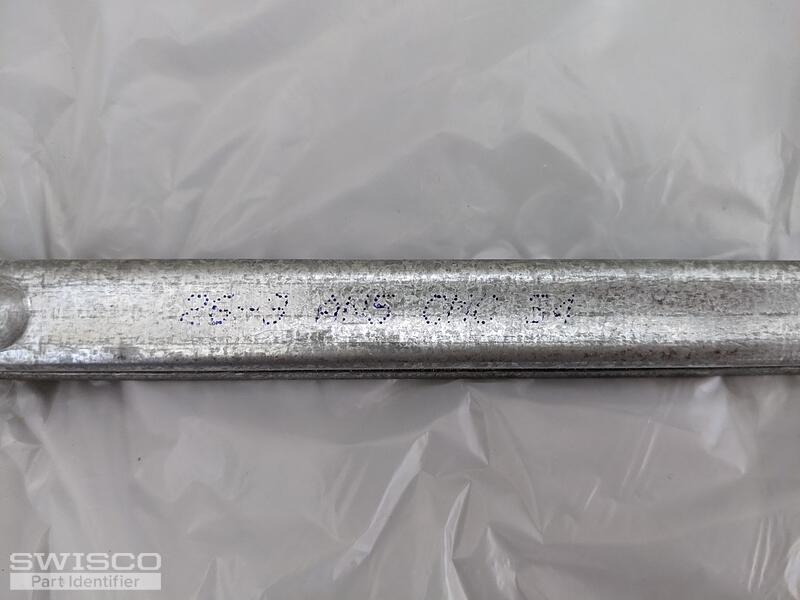

Is the stamp number 2630 correct for my channel balance?

Is 27" SERIES 385 CHANNEL BALANCE (Product Code: S385-27) the correct part for my channel balance?

One of window channel balances is broken.

Should I replace the broken one or should I replace both of channel balances? What do you recommend?

Thank you!

Louis

Thumbnail of the uploaded file named PXL_20210801_235505748.jpg
Thumbnail of the uploaded file named PXL_20210801_235635212.jpg
Thumbnail of the uploaded file named PXL_20210801_235257761.jpg

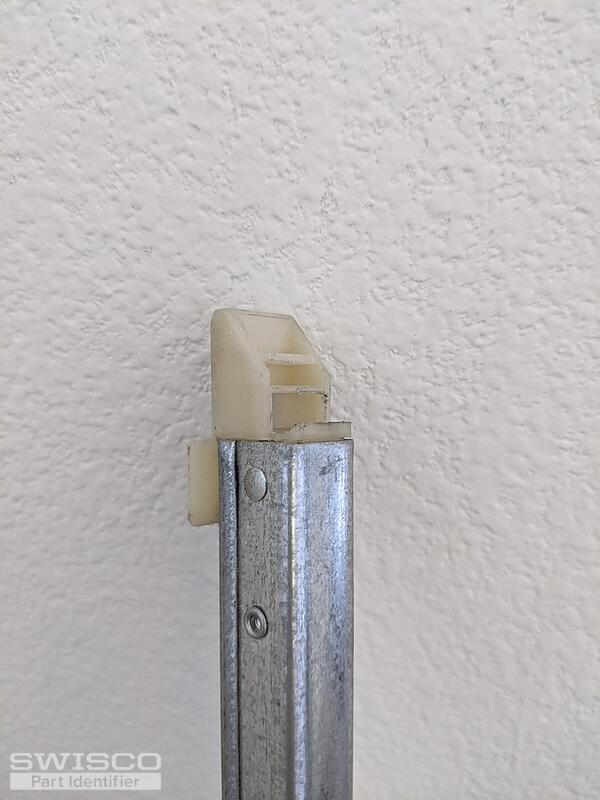

Thumbnail of the uploaded file named PXL_20210801_235410351.jpg
Thumbnail of the uploaded file named PXL_20210801_235754084.jpg
Profile picture of Casey
Casey from SWISCO responded:
August 5, 2021

Hello,

I agree that based on the information you've provided, the S385-27 channel balance with a 2630 strength option would be the correct replacement. We also always recommend replacing both balances at the same time since replacing one can cause the original balance to break or damage the new balance. Thank you!
