Window Channel Balance

Question

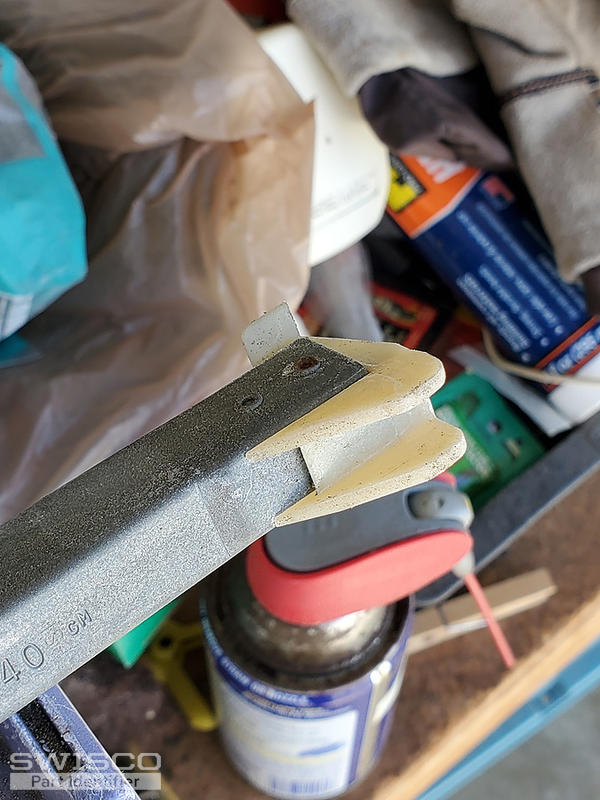

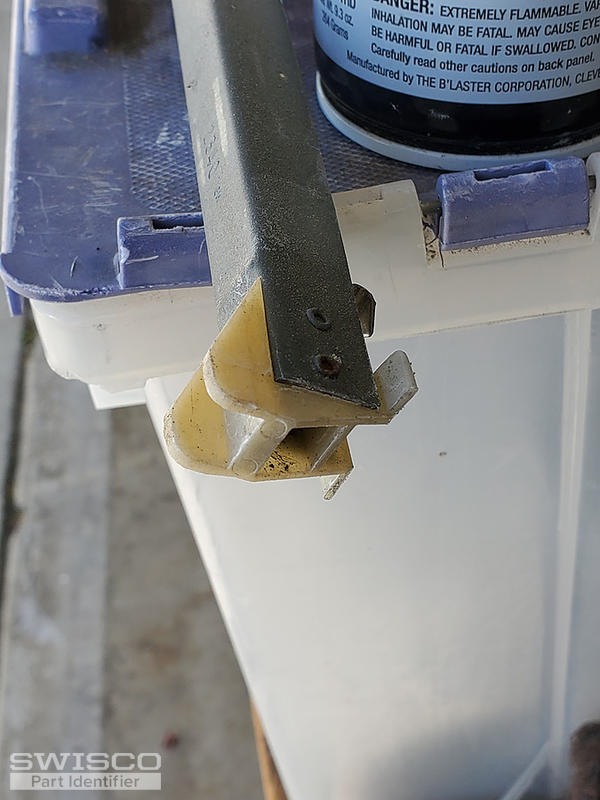

Hello,  the Window Channel Balance is 24 inches long,  1/2 inch wide and has a stamp of 2340 on it.   Thanks for your help.  I would like to replace them.

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-24 or S385-24 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2340 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
