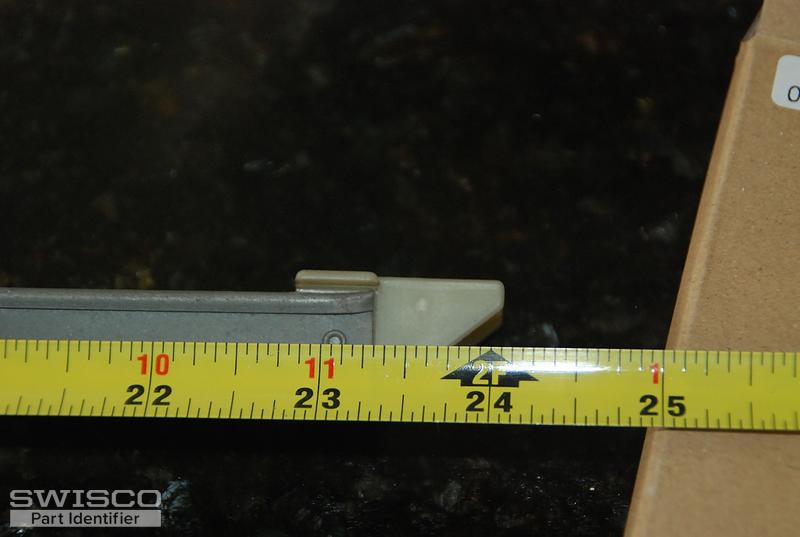

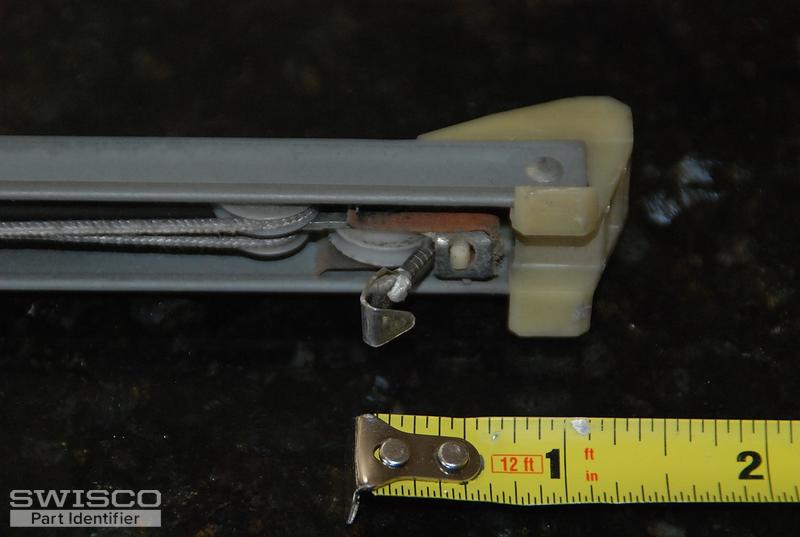

Window channel balance with spring and pulley. The metal is 23 inches and the overall length is 24 inches. It has two plastic ends and a little metal hook on the spring side. It says "22 4 BO CALDWELL" inscribed on the metal. My husband says he thinks the metal is 9/16 wide. Anyway... we need replacement parts asap.
Thank you for helping us. I took more photos but your website could only accept 5 photos. I hope these were what you needed. Please let us know if you have this part. Fingers crossed. Thanks again.
Window Channel Balance
Home Owner from West Jordan Utah
Feb 2, 2021 4:55 pm
5 user uploaded images
2 Replies
Casey from SWISCO
Feb 3, 2021 3:00 pm
Hello,
With this combination of attachments, you could have either an S380-23 or S385-23 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2240 spring strength options for your replacement balances.
Thank you and let us know if you have any other questions or concerns.
Comparison of the S378, S380 and S385 balance shoes.
