Hi,

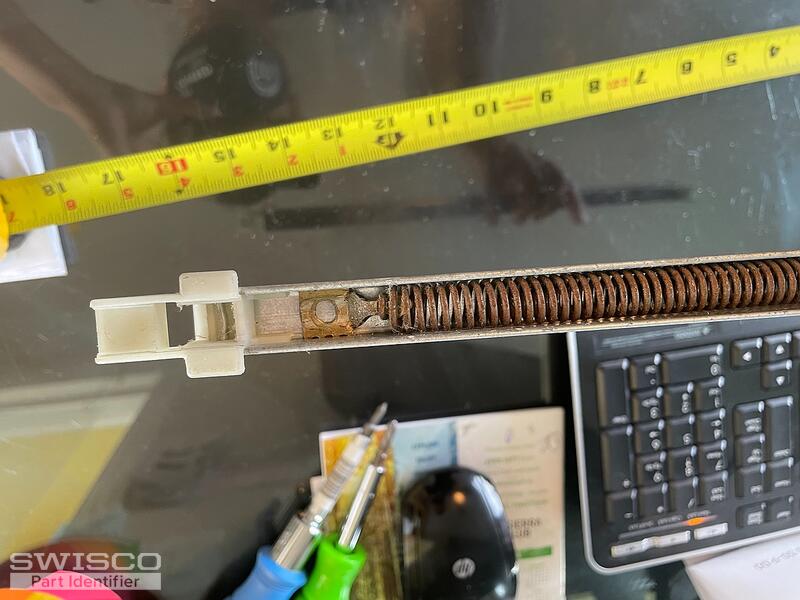

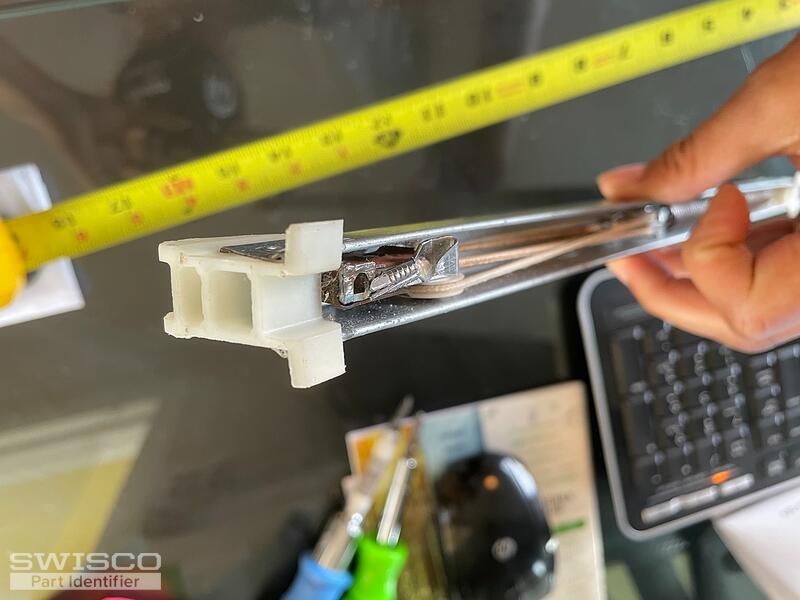

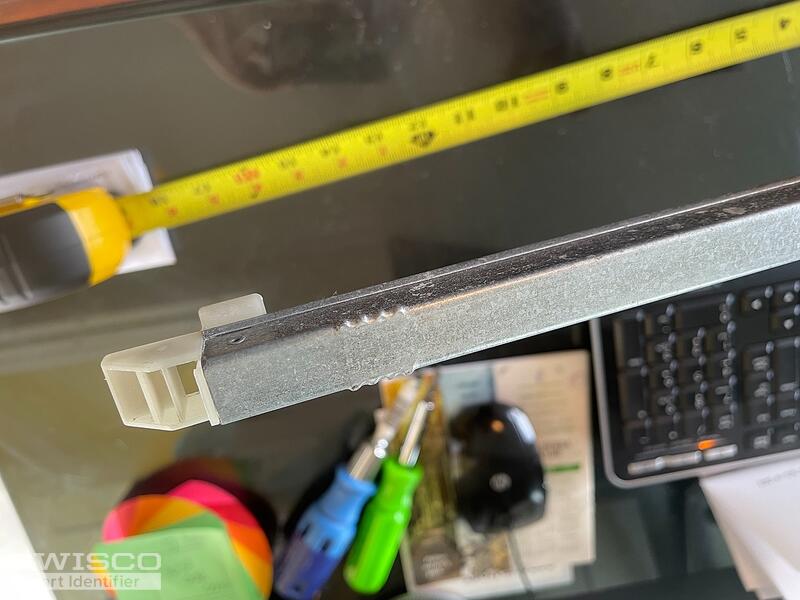

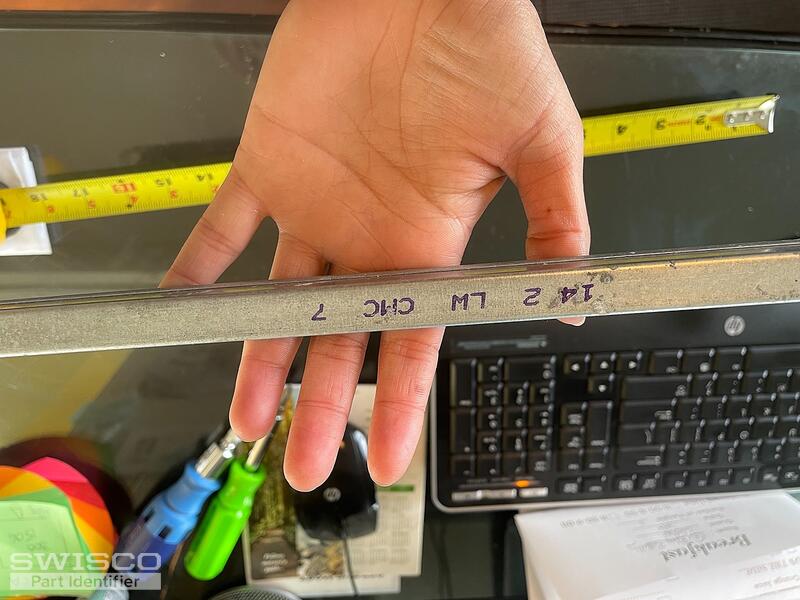

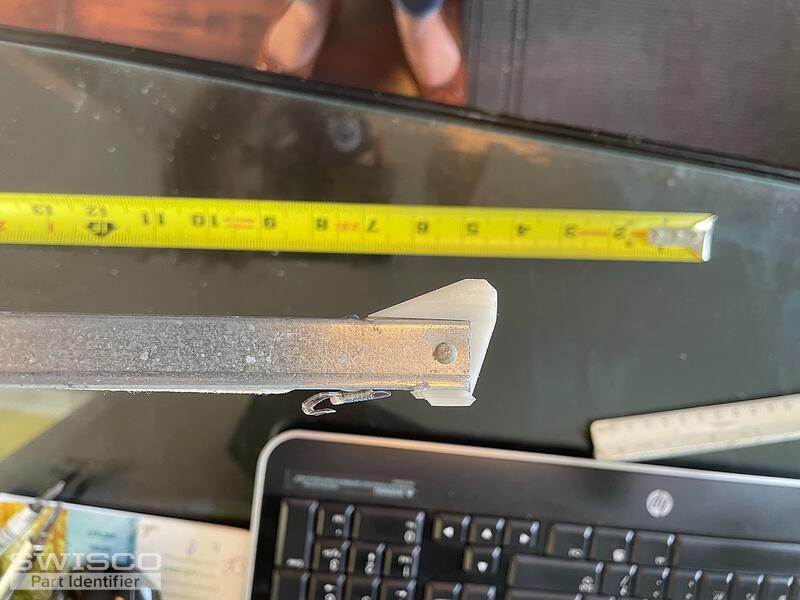

The balance is 15" long, and the channel is 0.5" wide. The markings say
14 2 LW CMC 7
Please help me identify this. Thanks!
Window Channel Balance
Quick Learner from Morro Bay
Oct 4, 2021 7:19 pm
5 user uploaded images
2 Replies
Lauren from SWISCO
Oct 8, 2021 8:37 am
Hello, thank you for posting!
With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.
Comparison of the S378, S380 and S385 balance shoes.
The length needed will be 15" with a stamp option of 1420. Please let me know if you have any questions!
