Window Channel Balance

Question

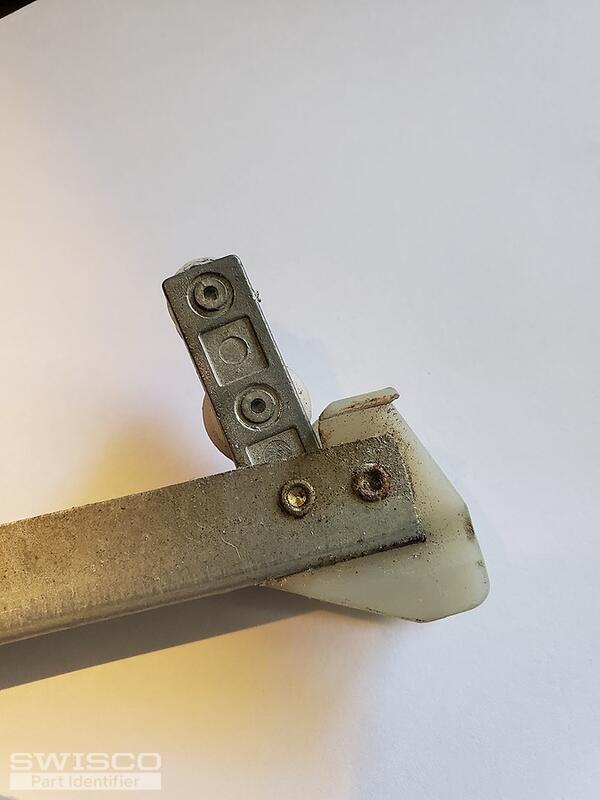

I need this set of Window Channel Balance for my window. The only numerical marking is 25-3 on the back side of the channel. Can you help me pick the right set from this group of pictures? The channel balance is 26 inches long.

Lauren · Accepted Answer

Hello, thank you for posting,

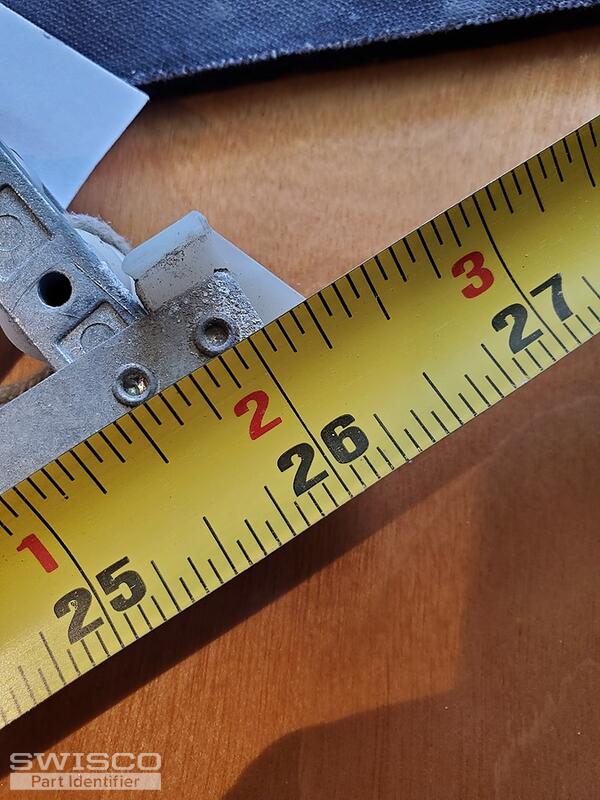

With this combination of attachments, you could have either an S380 or S385 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will need a 26" balance with a 2530 stamp option.

Please review and let us know if you have any additional questions!

Comparison of the S378, S380 and S385 balance shoes.
