Window Channel Balance

Question

I have two broken window balances.
I have added photos of one balance.
It's 15" L and 1/2" Wide.

Not sure which part to order can you please advise?
Thanks

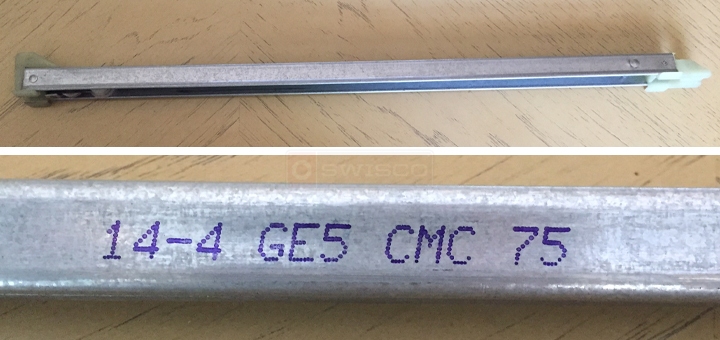

User submitted photos of a window balance.

Tom · Accepted Answer

Hello. Let's narrow it down. Based on your printed stamp and plastic ends, I can see you need either an S380-15 or an S385-15. Either way, you appear to need the 1440 option for a window sash weighing 12 to 13 pounds. Check that weight. If it's not 12-13 pounds, you need to select the weight option that matches your sash weight.

As for the Series, you can decide by measuring the bottom shoe. If you measure like in the photo below and come up with 1", you need S380-15. If it's 1-3/32", you need S385-15.

Comparison of the S378, S380 and S385 balance shoes.
