Window Channel Balance ID

A home owner from San Marcos, CA says:
Hello,

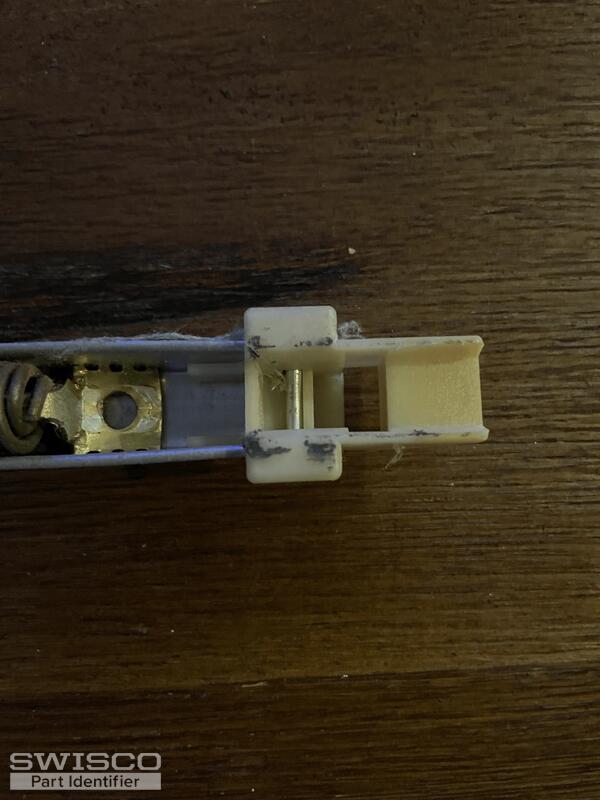

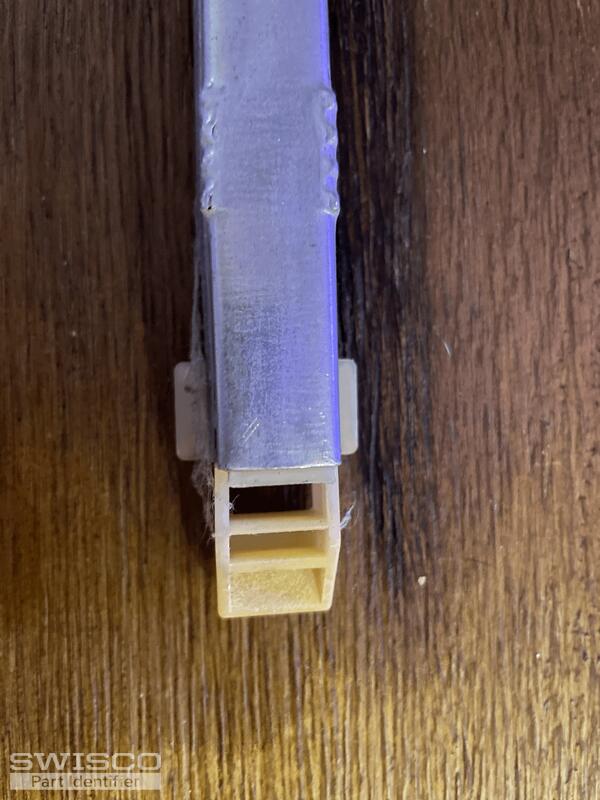

I need to know which part to order to replace the one in the pictures. The metal part is 27" long and 9/16th" wide. It has the following stamped on it: 26 4 FX CMC.

Thank you!
Thumbnail of the uploaded file named tempImageXQAs43.gif
Thumbnail of the uploaded file named tempImageAM1Spj.gif
Thumbnail of the uploaded file named tempImageiqtj5u.gif
Thumbnail of the uploaded file named tempImageqe5AgB.gif
Thumbnail of the uploaded file named tempImageiEYqHO.gif
Profile picture of Emily
Emily from SWISCO responded:

Hey there!

With this combination of attachments, you could have either an S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2640 spring strength option.

If you have any further questions just let us know!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
