Window Channel Balance Replacement

Quick Learner from Alameda, California 94501

Aug 17, 2024 7:01 pm

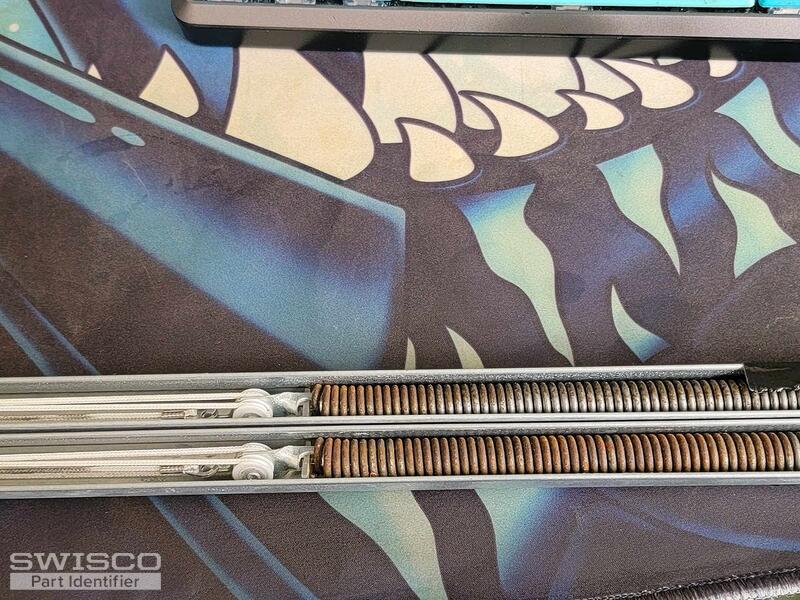

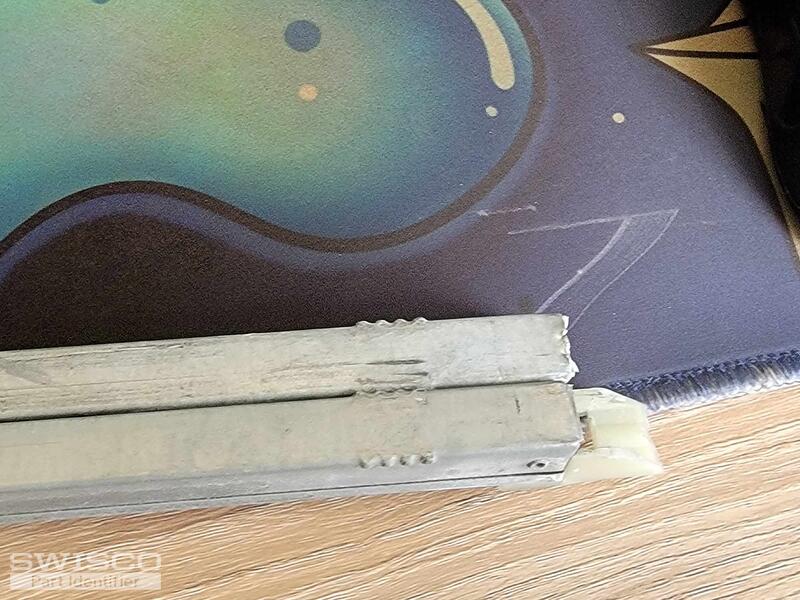

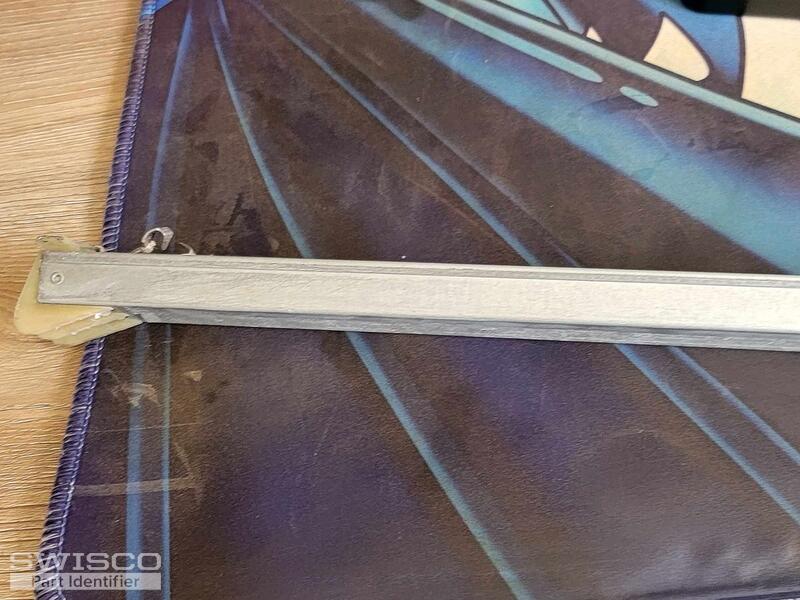

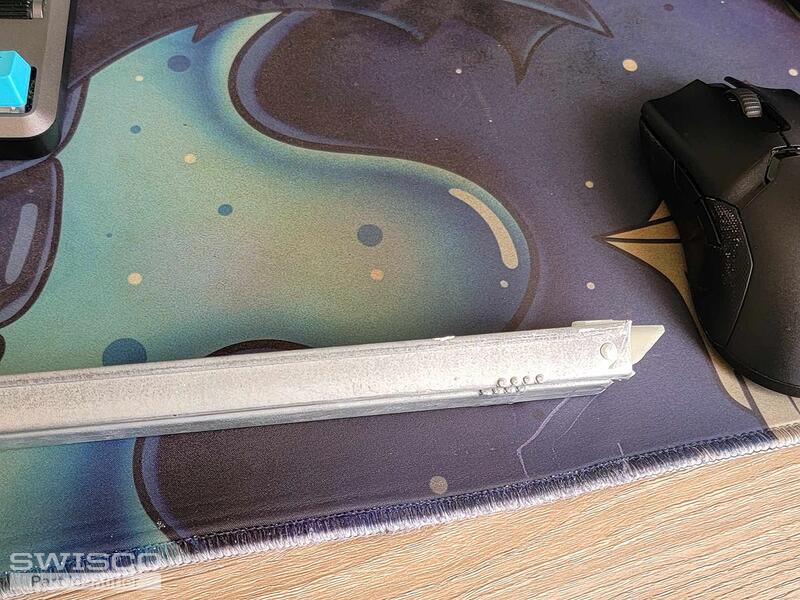

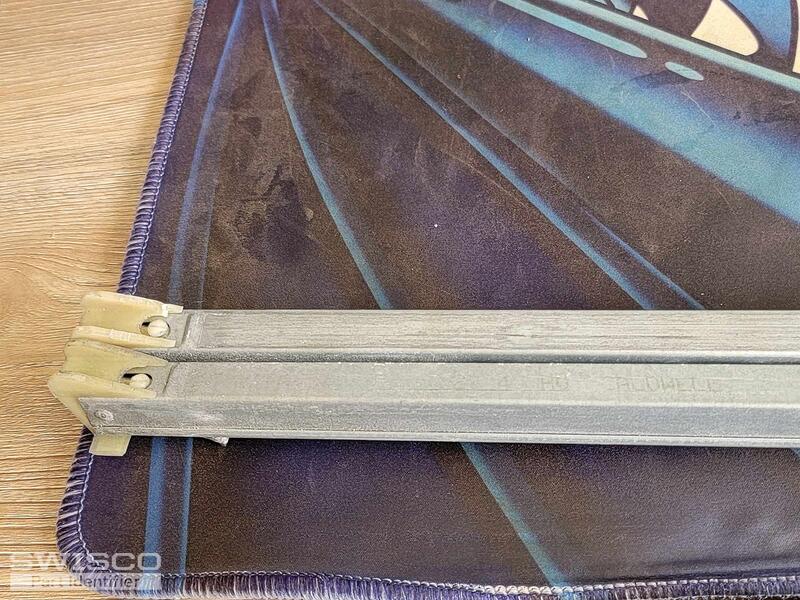

I was wondering if your company had replacement window channel balancers? If you need more photos or a video to see it in full, I will happily provide in an e-mail response.

-Kevin

5 user uploaded images

4 Replies

Lauren from SWISCO

Aug 20, 2024 2:32 pm

Hi Kevin, thank you for posting,

It appears your channel balance has a winged out bottom shoe and non-winged top attachment. If this matches up, you would need the Series 350 channel balance.

To further review, are you able to confirm the length of the metal channel excluding the nylon attachments along with the number stamped on the balance? Thank you!

Quick Learner from Alameda, California 94501

Aug 20, 2024 6:50 pm

HI there it looks like the number is faded out, but the length is approximately 28 inches in length.

Does this help? And I was wondering if you can point me to a full replacement of these parts with the plastic ends too? Thank you!

Lauren from SWISCO

Aug 21, 2024 9:34 am

Hello,

Please review the S350-28 channel balance. This balance comes assembled with the top and bottom nylon attachments as shown in the pictures on the product page.

Since the stamp is faded, you will need to weigh the window sash. From there compare the sash weight to the strength chart on the product page to choose the correct stamp option. Let us know if you have any additional questions!
