Question

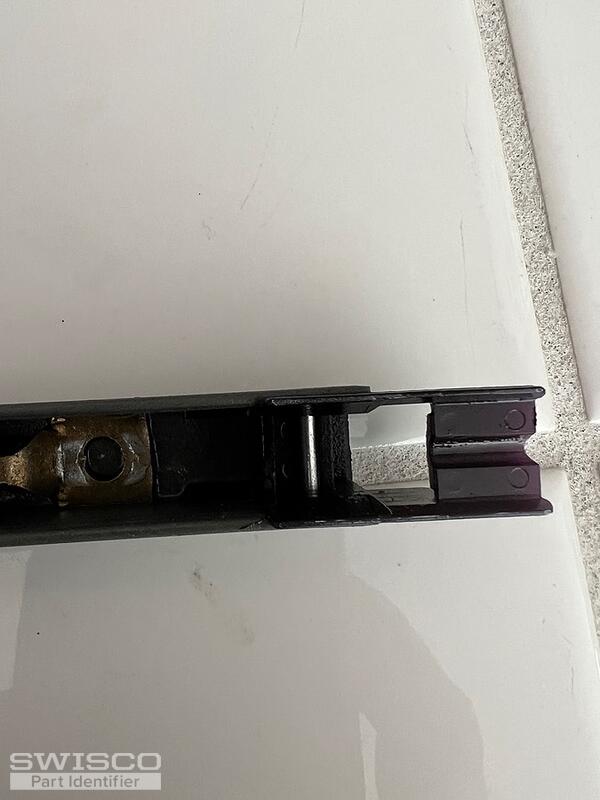

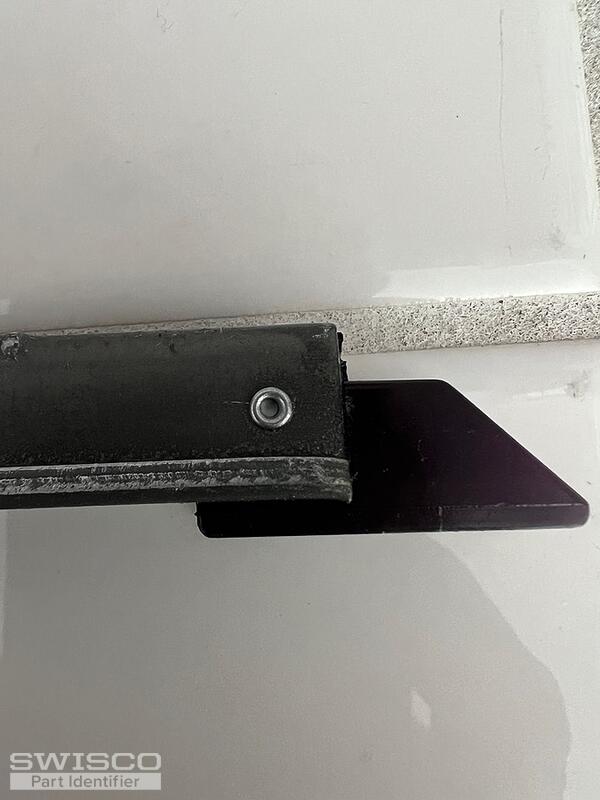

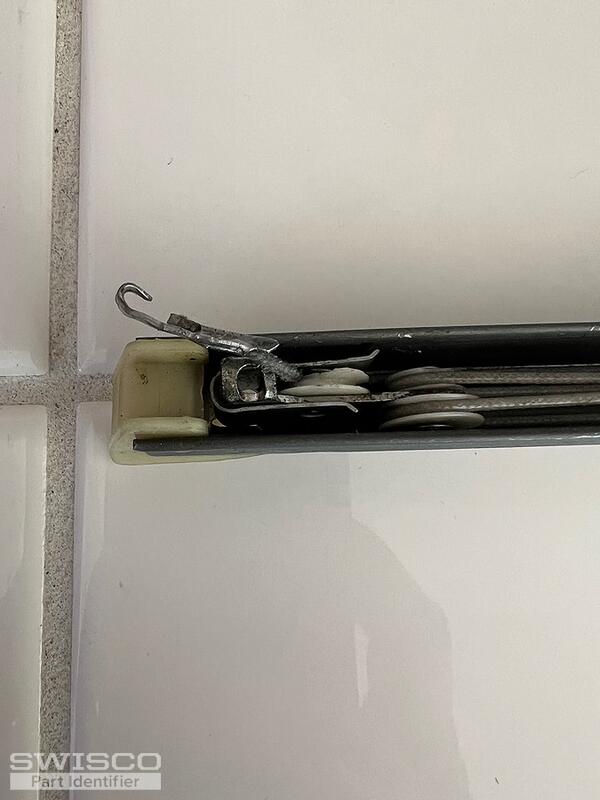

The channel is 28 7/8 long. This is the length of the metal channel without including the plastic ends. I need two of these. Thank you.

Jasmine · Accepted Answer

Thanks for posting! Your balances appear to be either the S351-29 with a 1" shoe or the S390-29 with a 1-1/8" shoe. The length of the metal channel for these balances is 29".

To determine which series is needed for your window, look over the dimensions from the diagram below to confirm the depth of your bottom shoe. You'll need to select the 2830 stamp.

Comparison of the S351 and S390 balance shoes.
