Window Channel Balance & Pivot Lock Shoe Pictures

A home owner from Peachtree City says:
Hello SWISCO...please let me know the part numbers I need to purchase. I need a complete set which include Window Channel Balance & Pivot Lock Shoe. The Window Channel Balance size is length 30", Channel depth is 5/8" and the channel width is 9/16". Thanks

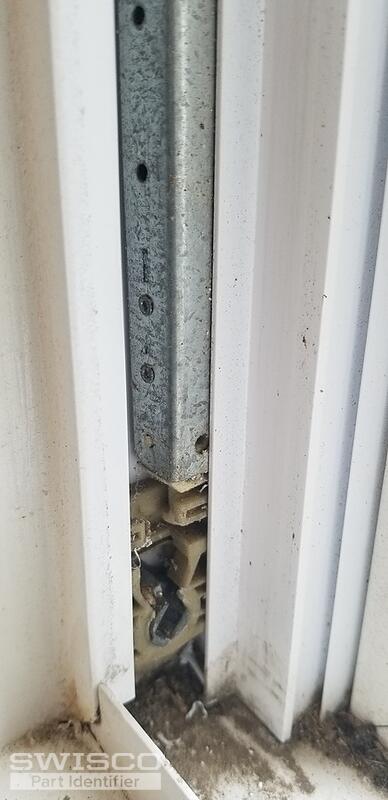

Thumbnail of the uploaded file named Inverted
Thumbnail of the uploaded file named Pivot bar
Thumbnail of the uploaded file named Pivot shoe
Thumbnail of the uploaded file named Channel

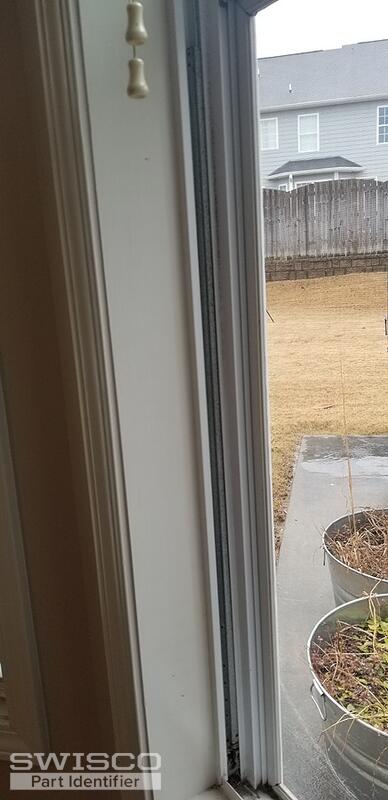

Thumbnail of the uploaded file named Jamb
Profile picture of Casey
Casey from SWISCO responded:

Hello,

As long as your balances install with a screw tab at the top of the window channel, you can use the S795-30 channel balance. You'll notice that these balances come with a T-lock shoe, which you will need to swap with the 15-224 inverted link by following the video below. You'll also need the 15-216 pivot shoe for this assembly. Take a look and thanks for posting!

A home owner from USA says:
Hello SWISCO...please let me know the part numbers I need to purchase.

I need a complete set which includes Window Channel Balance & Pivot Lock Shoe. The Window Channel Balance Part Number : 30 D BSI PB, size length 30", Channel depth is 5'8" and the channel width is 9/16".

I am attaching the pictures of the window balancer and the other parts that has been broken.

Thanks,
Ahmed

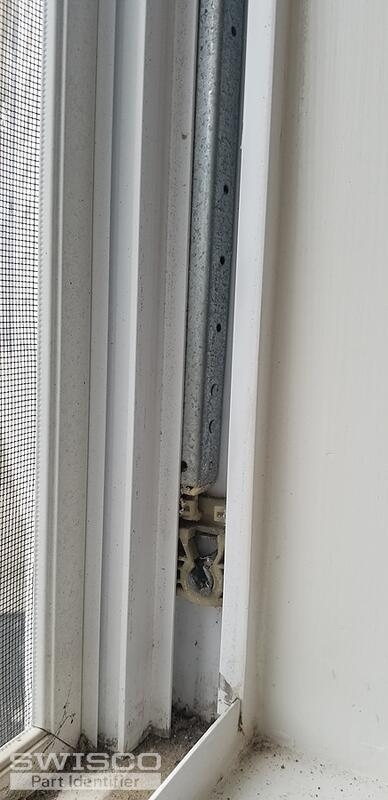

Thumbnail of the uploaded file named Inverted link

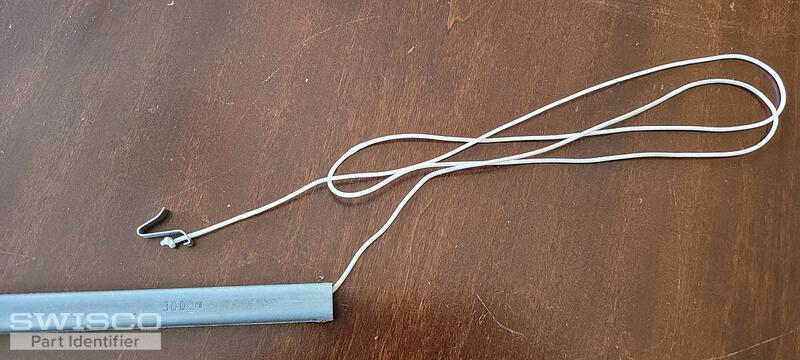

Thumbnail of the uploaded file named Pulley hook
Thumbnail of the uploaded file named Pivot shoe

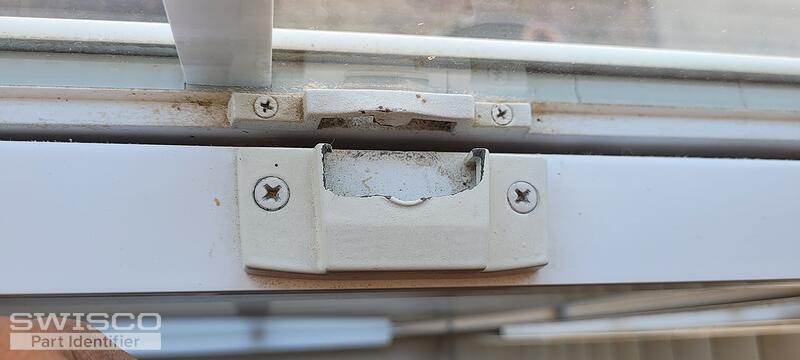

Thumbnail of the uploaded file named Broken lock
Profile picture of Casey
Casey from SWISCO responded:

It looks like you are showing the same balances as your post from 2022 above. Our initial recommendations of the S795-30 (30D) would still be our best replacement option. Review the related video showing how to swap out the stock T-lock shoe with the 15-224 inverted link sold separately.

As for the broken sash lock, we may be able to provide a replacement but we would need you to write out the exact distance between the center of the installation holes to narrow down your options.
