Window Channel Balancers

A home owner from Edison, NJ says:
September 4, 2019
The balancers are from an old hinged window and these balancers are on the side away from the hinge.

S351, 1/2" wide, 23" long, 2230 seems to be the right fit except for the bottom shoe. 15-025 shoe is required at the bottom. The channel balancers have a marking of 2230P on them and the metal portion is 23" long.

Based on other requests, it probably requires a custom order. Qty required: 6.

Thumbnail of the uploaded file named IMG_4647.JPG
Thumbnail of the uploaded file named IMG_4649.JPG
Thumbnail of the uploaded file named IMG_4650.JPG

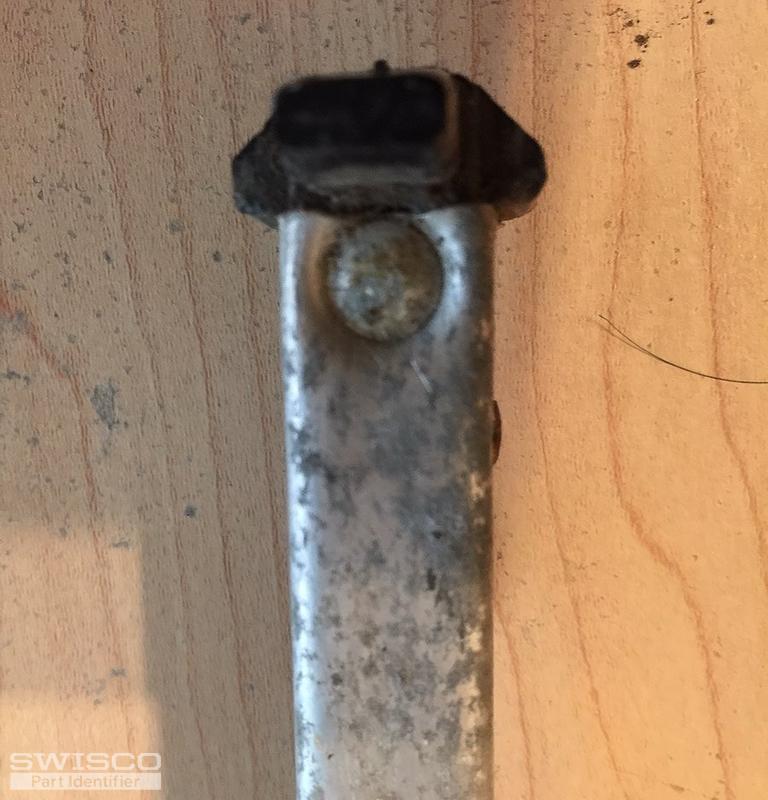

Thumbnail of the uploaded file named IMG_4651.JPG

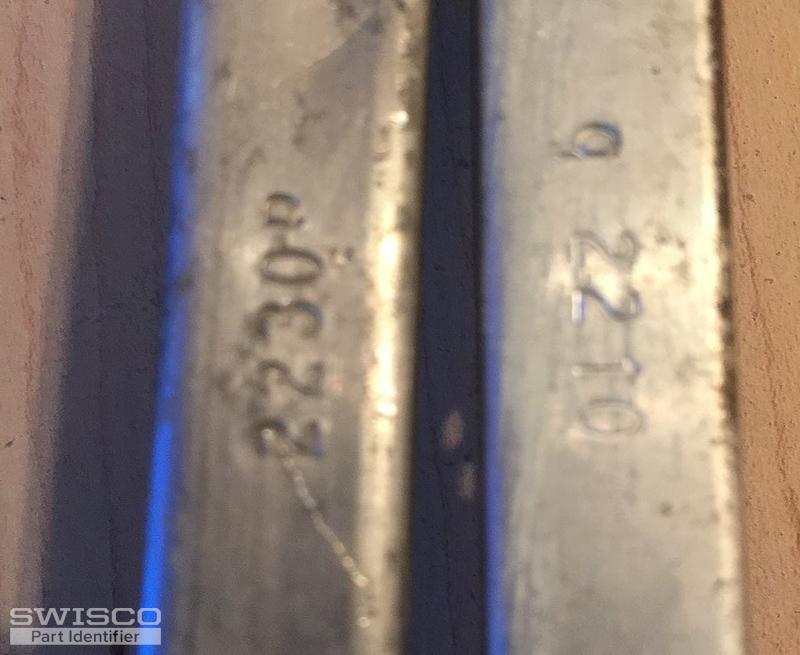

Thumbnail of the uploaded file named IMG_4646.JPG
Profile picture of Bob
Bob from SWISCO responded:
September 9, 2019

Thanks for writing in. These balances are for a hinge window and are a bit unusual since the balances on either side of the window are often not identical. Often times one balance has the 19-008 Top Attachment and 15-025 Bottom Attachment, while the other balance has only the 19-008. However, this isn't always the case, and sometimes both balances have a shoe; let us know if this is the case for you. If only one balance has the bottom shoe, please let us know which balance is stamped 2230, and which is stamped 2210; these balances are meant to have different stamp codes. From there, we should be able to narrow down what you need. Many thanks.
A home owner from Edison, NJ says:
September 10, 2019
I believe the hinge side has a channel balancer without the shoe with a stamp of 2210 and the right (non-hinge) side channel balancer is with the shoe 15-025 with a stamp of 2230P.
Profile picture of Bob
Bob from SWISCO responded:
September 11, 2019

Perfect, thanks! So, just to be clear, did you need 3 of one side and 3 of the other? I'll have my colleague Tom send you an order link for that quantity of each side, just in case. If that's not right, though, tell me here and we'd be happy to change it for you.
Channel Balance Shoe, Silver Line
Channel Balance Shoe, Silver Line
15-025
$1.52
Channel Balance Top, Silver Line
Channel Balance Top, Silver Line
19-008
$1.20
