Window Channel Balances

Quick Learner from El Doraod Hills, California

Hi, I need to replace two different sets of window channel balances. They are both ½ inch wide. They are being used on Milgard windows.

One set is marked

26 5 GQ Caldwell

and the other is marked

26 4 IQ Caldwell

( so I will need two of each, four total)

I would like to know price and delivery

Thanks,

Chris

4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for writing in. I'm afraid these stamp codes only tell us the strength of the balance spring itself. To know what type of balance you need, we'll need to see pictures of the end attachments. It would also be helpful to know the length of the metal channel, not including those end attachments. All costs are shown on the shop page and during checkout you will be given a range of delivery options. Many thanks.

Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. Confirm that your balances are 27" long. If so, see either our S380-27 or S385-27. The only difference between these two balances is the 'depth' of the bottom nylon shoe, so compare both with your old hardware to see what the best match is. You wll need stamp options of 2650 and 2640.

Quick Learner from El Doraod Hills, California

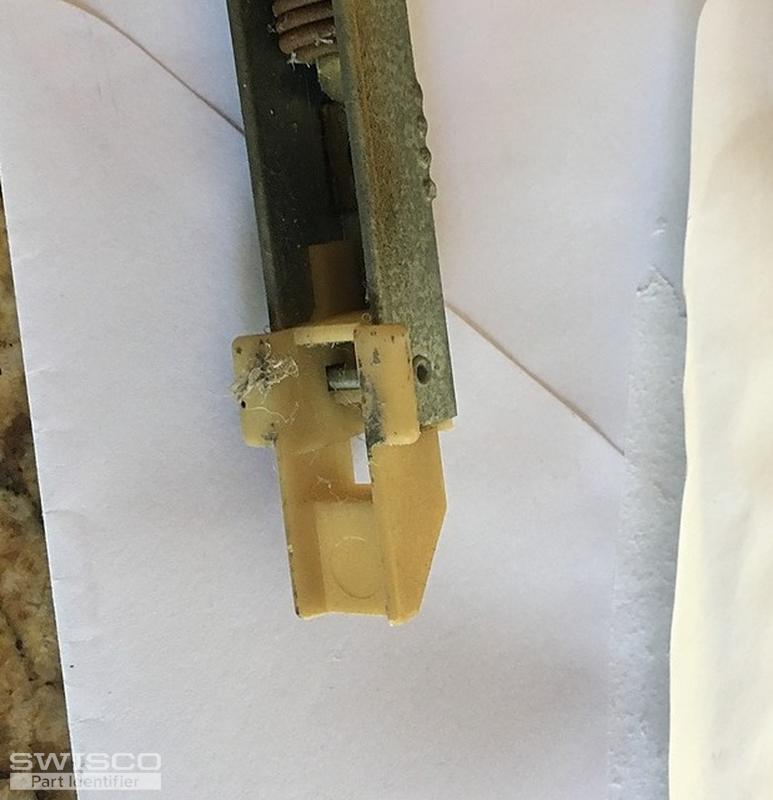

I took a few photos of both the top and the bottom end attachments; hopefully you can identify what I need.
4 user uploaded images
